| TSP Lab | The Ethernet monitoring card handler module | Sga-PacketDistributor |
|---|
| Menu | Menuitem | Shortcut(s) | Meaning |
|---|---|---|---|
| [Actions] | |||
| Clear collected IP addresses | Clears list of collected IP addresses from the 'detected IP addresses' view | ||
| Exit | Exits from the program | ||
| [Network] | |||
| Allow incoming connections | Open listen socket for incoming network connections (HTTP request) | ||
| Allow outgoing connections | Allow connection towards monitor programs | ||
| Disconnect incoming connections gracefully | Close existing incoming connections properly | ||
| Disconnect outgoing connections gracefully | Close existing outgoing connections properly | ||
| Abort incoming connections | Tear down incoming connections immediatelly | ||
| Abort outgoing connections | Tear down outgoing connections immediatelly | ||
| [Log] | |||
| Find line containing... | Ctrl+F | Find expression in logfile | |
| Find next line | F3 | Find next occurence of the expression above | |
| Details | Detail level of logging (Off, Normal, Detailed, or Debug) | ||
| [View] | |||
| Detailed card status | Detailed information is shown for monitoring cards | ||
| Detailed network status | Debug information is shown in network window | ||

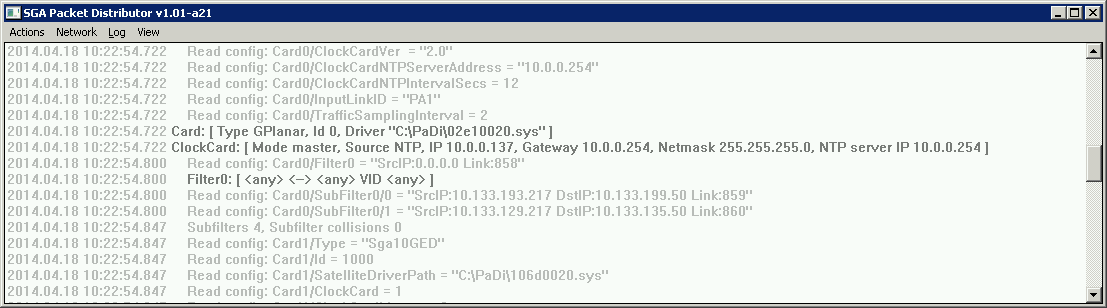

| Show log | Ctrl+L | Show log window | |
| Show network | Ctrl+N | Show network view | |
| Show cards | Ctrl+C | Show card view | |
| Show schemes | Ctrl+S | Show scheme view | |
| Show monitors | Ctrl+M | Show monitor view | |
| Show detected IP addresses | Ctrl+I | Show detected IP addresses view |
Elements of this view:
Elements of this view:
Elements of this view:
Elements of this view:
Each card has its own set of filters, i.e. in the confoguration file each [Card] section should have a list of filters.
A card can handle at most 16 filters.
Note: The 'source' and 'destination' notations are valid for the 0th input (upper physical interface).
The solution swaps them for the 1st interface so filtering is automatically done properly for the other directions.
The following parameters can be filtered:
The 'Link:' parameter is the destination of the traffic for which the filter matches.
Subfilters' format is strict as they must contain a source IP address filter and a destination IP address filter but no more parameters are needed.
Exact IP addresses should be defined, no ranges can be used.
With settings above for each packet whose VLAN ID is 200:
There can be at most 16 schemes at the same time.
This can be achieved by putting 'Scheme' key at the end of the filter instead of 'Link':
Distribution profiles are the followings:
This feature works only with "filtering for link" and does not work with "filtering for scheme" method
(i.e. the destination of filters only can be 'Link' and can not be 'Scheme').
Views

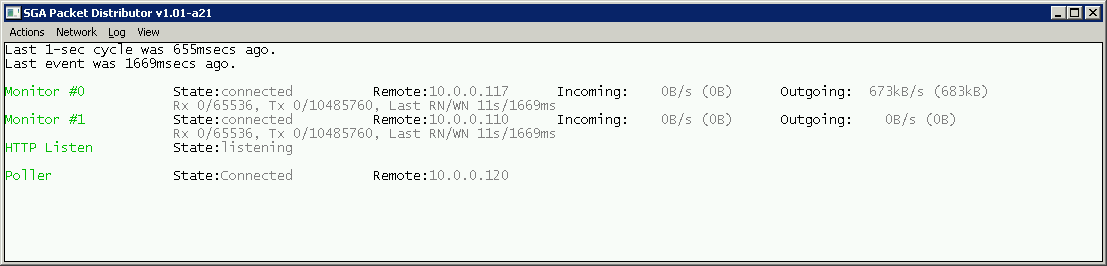

Network
In this view the status of Sga-PacketDstributor's network connecttions can be seen.
Some details of this view can be hidden by the 'Detailed network status' menu item.
Line details:

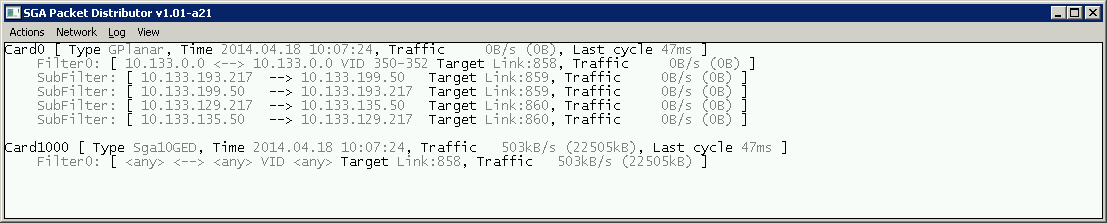

Cards
In this view the status of monitorings cards can be seen. Each card is shown with its filters and subfilters.
Details can be hidden by the 'Detailed card status' menu item.

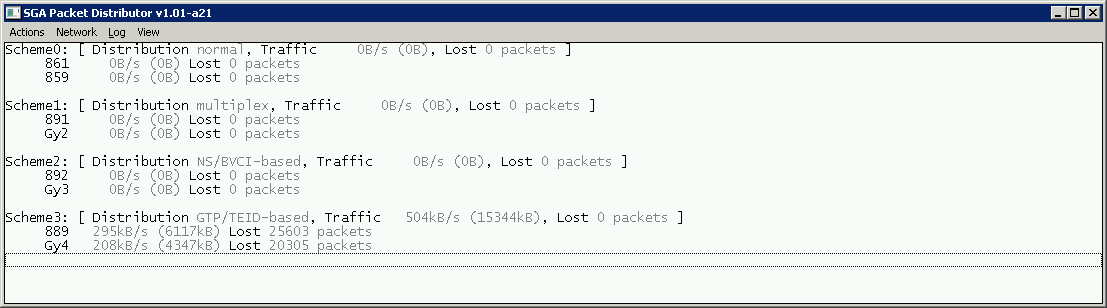

Schemes
In this view status of the schemes can be seen.

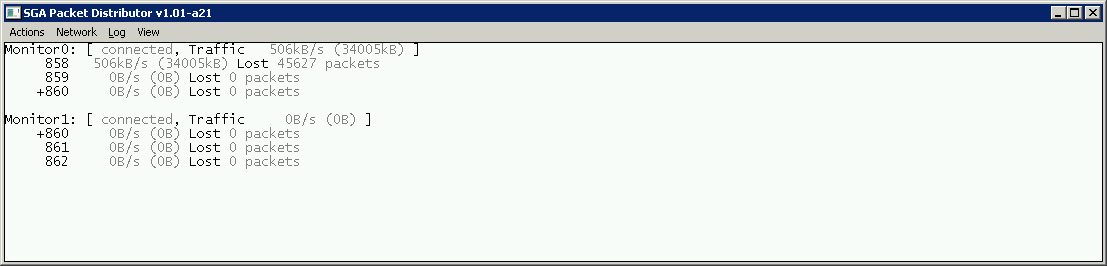

Monitors
In this view status of the monitors can be seen.

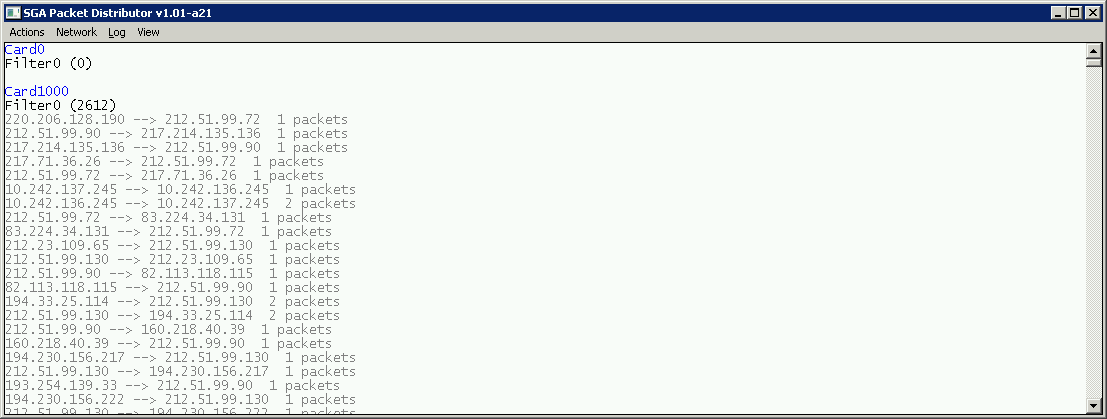

Detected IP addresses
In this view collected IP addresses can be seen.
How Sga-PacketDistributor works?
Filtering for different parameters
Defined filters are loaded into the card's internal 'processor' (FPGA) and they work as hardware filters.
Each packet the card captures from the monitored links is supplied with a timestamp and checked against these filters.
(A 'packet' means the whole Ethernet frame with its full content.)
When a packet fits to a filter then the card passes it to the Sga-PacketDistributor software through its PCI-Express interface.
Sga-PaDi gets the packet and based on the configuration sends it to the proper monitor with the proper three-character LinkID.
A filter can have any combination of the above mentioned parameters. Here are some examples:
Examples:
Examples:
Examples:
Example:
Examples:
'Filter0 = SrcIP:172.10.10.120 DstIP:172.10.10.121 IPProtocol:TCP SrcPort:7000 DstPort:7000 Link:L00'
Meaning: Traffic which is between 172.10.10.120 port 7000 and 172.10.10.121 port 7000
and carried byTCP protocol is forwarded to link 'L00'.
'Filter1 = SrcIP:0.0.0.0 Protocl:UDP SrcPort:2152 DstPort:2152 Truncate:248 Link:L00'
Meaning: Any UDP traffic whose both ports are 2123 are truncated to 248 bytes (if necessary) and forwarded to link 'L01'.
'Filter2 = Protocol:132 DstPort:2905 Link:L02'
Meaning: Any SCTP traffic whose destination port is 2905 are forwarded to link 'L02'.
Subfilters
Filters can be extended further packet filtering capabilities. These additional filters are defined by 'Subfilter' entries
and used for a more precise filtering and traffic distribution.
Subfilters must belong to a 'Filter' and each 'Filter' can have at most 1000 subfilters.
Filter0 = VID:200 Link:L00
SubFilter0/0 = SrcIP:10.0.0.1 DstIP:10.0.0.10 Link:L01
SubFilter0/1 = SrcIP:10.0.0.1 DstIP:10.0.0.20 Link:L02
SubFilter0/2 = SrcIP:10.0.0.2 DstIP:10.0.0.10 Link:L03
SubFilter0/3 = SrcIP:10.0.0.2 DstIP:10.0.0.20 Link:L04
'Subfilter0' means that this subfilter belongs to 'Filter0' and '/0' means the ordinal within the subfilter set.
Distribution through schemes
Further distribution profile can be used instead of filtering traffic towards one link.
Schemes are defined under the [Scheme] section in the configuration file.
Each scheme must have a list of links among which the traffic will be distributed.
'Filter1 = SrcIP:0.0.0.0 Protocl:UDP SrcPort:2152 DstPort:2152 Truncate:248 Scheme:0'
Example:
Example:
Example:
Example:
Monitors
The destination links belong to one (or more) monitor where the Sga-PacketDistributor sends the proper traffic for store and processing.
Monitors can be defined under the [Monitor] section with their IP address and the remote TCP port and the list of those links whose traffic
is being sent to the particular monitor.
Monitor0 = Address:172.16.160.110 Port:1001 Links:L00,L01,L02,L03,L04,L05,L06,L07,L08,L09,L10,L11,L12,L13,L14,L15,L16
Monitor1 = Address:172.17.152.12 Port:1001 Links:L64,L65,L66,L67,L68,L69,L70,L71,L72,L73,L74,L75,L76,L77,L78,L79,L80
If a link is assigned more than one monitor, then only the fisrt monitor will get that traffic.
Each link must be assigned a monitor. Sga-PacketDistributor can serve at most 16 monitors.
Link copying
There is a possibility to send the same traffic with the same LinkID to different monitors.
For this feature a plus sign should be placed in front of the given LinkID, like this:
Monitor0 = Address:172.16.160.110 Port:1001 Links:+L00
Monitor1 = Address:172.17.152.12 Port:1001 Links:+L00
In this way both monitors get the same traffic with the LinkID 'L00'.
Configuration (SgaPacketDistributor.ini) file settings
| Section | Entry | Example | Meaning | |
|---|---|---|---|---|
| [Window] | ||||
| MainLeft | 143 | Position of the program window at startup | ||
| MainTop | 112 | Position of the program window at startup | ||
| MainWidth | 1030 | Width of the program window at startup | ||
| MainHeight | 758 | Height of the program window at startup | ||
| MainZoomed | 0 | If 1 the program will start with full screen. If 0 the saved size and position value will be used | ||
| DetailedCardStatus | 1 | If 1 detailed information is shown in Card view at startup | ||
| [Log] | ||||
| Directory | d:\LogFiles | Path of the log files | ||
| Level | 0 | Log detail level at startup
0:Off 1:Normal 2:Detailed 3:Debug | ||
| [NTP] | ||||
| Address | 192.168.0.254 | NTP server IP address | ||
| [Network] | ||||
| HTTPPort | 8080 | Port number for the incoming connections | ||
| AllowIncomingConnections | 1 | Status of Incoming connections on startup
0: Deny 1: Allow | ||
| AllowOutgoingConnections | 1 | Status of outgoing connections on startup
0: Deny 1: Allow | ||
| DetailedNetworkStatus | 1 | Allow or deny network debug info on startup
0: Deny 1: Allow | ||
| [Poller] | This section is for Poller functionality. | |||
| RemoteIPAddress | 192.168.0.120 | IP address of the Poller machine | ||
| RemoteTCPPort | 7000 | TCP port of Poller | ||
| KeepAlive | 1 | If 1 KeepAlive is activated on the Poller connection | ||
| ConnectRetryDelaySec | 5 | Retrial period for establishing the Poller connection | ||
| StatisticsReportPeriod | 15 | Statistics are sent to Poller at end of every period. Given in minutes. | ||
| LocalIPAddress | 192.168.0.12 | This local IP address is used as local address during the Poller connection | ||
| [Monitors] | ||||
| MonitorN | Address:10.0.0.110 Port:1001 Links:L00,L01,L02 | Address - IP address of the monitor Port - TCP port where the monitor listens Links - list of LinkIDs which belong to this monitor | ||
| [Schemes] | ||||
| SchemeN | Distribution:Normal Links:X00,X01 | Distribution - distribution method Links - list of LinkIDs which are the destionations of this scheme | ||
| [Card0] | ||||
| Id | 0 | Card Id used to identify the card. This should be unique within the machine. | ||
| Type | GPlanar | Type of monitoring card. Type can be: 'GPlanar' - for SgaGPlanar cards '10GED' - for Sga10GED cards | ||
| SatelliteDriverPath | 02e10020.sys | Path of the satellite driver file | ||
| InputLinkID | PD0 | This ID is treated as the identifier of the card and its interfaces if the Poller functionality is applied. | ||
| TrafficSamplingInterval | 2 | If the Poller functionality is applied and if there is no traffic within this period then a 'No traffic' event is generated. Given in minutes. | ||
| ClockCard | 1 | 0 - Time synchronization is done through the main program using it as the NTP client 1 - In this case the ClockCard is used to provide a precise time stamping | ||
| ClockCardMaster | 1 | Only used when 'ClockCard=1' 0 - This card is the 'master' of the ClockCard 1 - This card behaves as 'slave' of the ClockCard | ||
| ClockCardSource | NTP | Only used when 'ClockCard=1' In case 'ClockCardMaster=1' this defined the clock source for ClockCard. Can be: NTP - NTP based time synchronization GPS - GPS based time synchronization (currently not used) | ||
| ClockCardAddress | 192.168.0.13 | Only used when 'ClockCard=1' IP address for ClockCard as an NTP client | ||
| ClockCardGatewayAddress | 192.168.0.254 | Only used when 'ClockCard=1' Gateway address of the network which the 'ClockCardAddress' belongs to | ||
| ClockCardSubnetMask | 255.255.255.0 | Only used when 'ClockCard=1' Mask of the subnet of 'ClockCardAddress' | ||
| ClockCardNTPServerAddress | 192.168.0.254 | Only used when 'ClockCard=1' NTP server address | ||
| ClockCardNTPIntervalSecs | 120 | Only used when 'ClockCard=1' Maximum time interval when the time synchronization is done | ||
| ClockCardNTPServerAddress | 192.168.0.254 | Only used when 'ClockCard=1' NTP server address | ||
| ClockCardNTPIntervalSecs | 120 | Only used when 'ClockCard=1' Maximum time interval when the time synchronization is done | ||
| ClockCardVer | 2.0 | Only used when 'ClockCard=1' Version of ClockCard firmware | ||
| FilterN | DstIP:10.242.1.1 Link:L00 | Each card should have at least one 'Filter' entry. For details please see Filtering section. | ||
| SubFilterN/M | SrcIP:10.242.1.2 DstIP:10.242.1.1 Link:S00 | Each Filter can have 'SubFilter' entries. For details please see Filtering section. | ||
