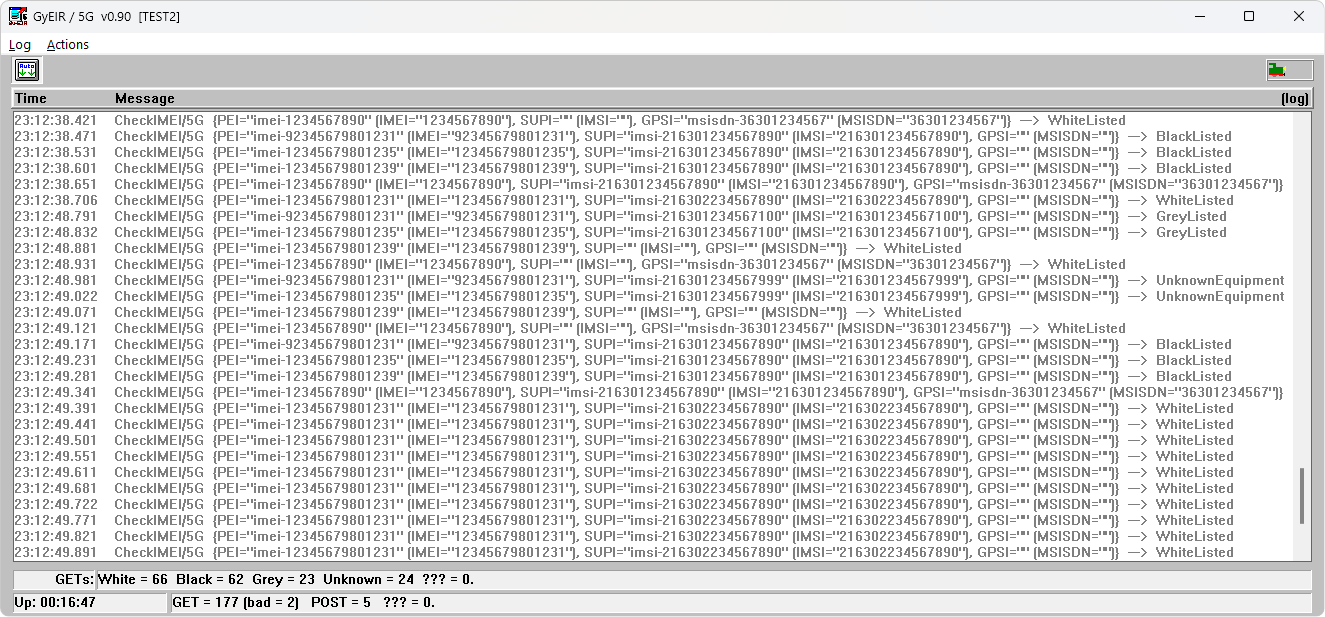

| TSP Lab | GyEIR_5G - The Main module - 5G version | GyEIR_5G |
|---|
| Menu | Menuitem | Shortcut(s) | Meaning |
|---|---|---|---|
| [Log] | |||
| Details | Detail level of logging (Off, Normal, Detailed, or Debug) | ||
| Find line containing... | (Ctrl-F) | Finds text in log window | |
| Find next matching line | (F3) | Finds next occurrence of text in log window | |
| Auto scroll | (ScrollLock, or   )
| Allows automatic scrolling of the log screen | |
| [Actions] | |||
| Flush status-line counters into log | Writes status counters into the log. These counters are being flushed in every 15 minutes. | ||
| Flush & reset status-line counters | The status line counters can be flushed and cleared | ||
| Save settings | Saves actual settings into the configuration (GyEIR_5G.ini) file |
| Section | Entry | Example | Meaning |
|---|---|---|---|
| [Position] | Entries of this section are loaded at start-up | ||
| iLeft | 140 | Position of the program module on the display screen | |
| iTop | 72 | Position of the program module on the display screen | |
| iWidth | 995 | Position of the program module on the display screen | |
| iHeight | 694 | Position of the program module on the display screen | |
| [Options] | Entries of this section are loaded at start-up | ||
| bAutoScroll | True | (Refer to the [Options]/Auto scroll menu item!) | |
| [HTTP Server] | Entries of this section are loaded at start-up Note: At most 9 HTTP/HTTPS services can be defined. | ||
| sService1 | https://+:8181/ | HTTPS service listening on TCP port 8181 bound to any IP addresses | |
| sService2 | http://10.0.100.121:8282/ | HTTP service listening on TCP port 8282 bound to 10.0.100.121 | |
| sService3 | https://+:8888/GyEIR_5G | HTTPS service listening on TCP port 8888 bound to any IP addresses with a service name | |
| [Response Files] | Entries of this section are loaded at start-up Defines the templates for the different answers | ||
| White | GyEIR_5G - 200-OK-WhiteListed.txt | File containing the response in case a PEI/IMEI is found in the EIR database and its status is "WhiteListed" | |
| Grey | GyEIR_5G - 200-OK-GreyListed.txt | File containing the response in case a PEI/IMEI is found in the EIR database and its status is "GreyListed" | |
| Black | GyEIR_5G - 200-OK-BlackListed.txt | File containing the response in case a PEI/IMEI is found in the EIR database and its status is "BlackListed" | |
| (none) | GyEIR_5G - 404-NoPEI.txt | File containing the response in case a PEI/IMEI is not found in the EIR database | |
| [Advanced] | Entries of this section are loaded at start-up | ||
| wLogDetailLevel | 3 | (Equals to the listed order; refer to the [Log]/Details menu item!) | |
| dwMaxLinesInLogWindow | 1000 | Number of lines in the log window on screen | |
| sLogFilesPath | d:\LogFiles | Path for the LOG files |
Logging
The GyEIR_5G module creates daily logfiles about its working. The name of the logfile is "GyEIR_5G_YYYYMMDD.log"
reflecting the day when it is created.
The module can write information into the logfile and onto the screen with several detail levels
set by the [Log]/Details menu item. The logging level can be:
The different colors of log entries have different meanings:
| Code | Color | Usage |
|---|---|---|
| 0 | Black | Compact data record |
| 1 | Red | Errors |
| 2 | Green | Open/close output file/stream |
| 3 | Blue | Open/close input file/stream |
| 4 | Yellow | Warnings |
| 5 | Light Gray | Detailed data (debug info) |
| 6 | Dark Grey | Detailed data (user info) |
| 7 | Purple | Operator intervention; Errors with emphasis |
