Provisioning Interface for Database("GyEIR_TelnetServer")

• Features
• User interface
• Available commands
• Configuration

• Provide Telnet interface for remote provisioning of the main and IoT GyEIR databases
• Local port can be adjusted
• Prompt can be defined
• White listing of remote client (Provisioning can only from pre-listed machines be done.)
• Logs queries and responses
• Provides simple statistical data and logging on the operations
• Creates SNMP traps

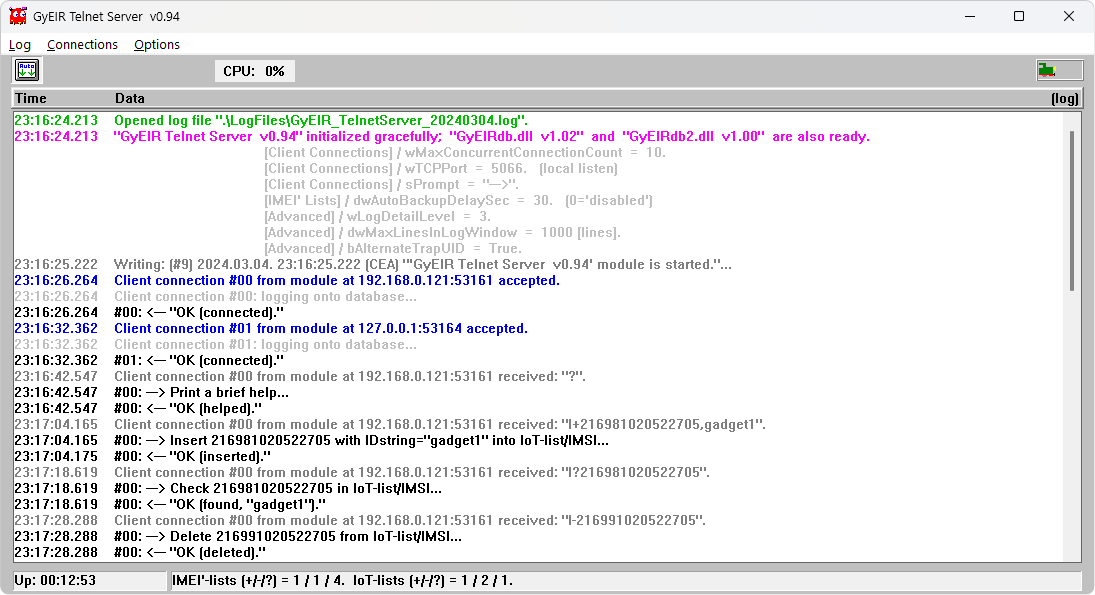

The main menu

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Finds text in log window
	Find next matching line	(F3)	Finds next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed, or Debug)
[Connections]
	Disconnect *all* active Client connections		Shutting down of all active connections
	Zero request counter of all Client connections		Request counters of connections will be cleared (on the Connections window)
[Options]
	Auto scroll	(ScrollLock, or )	Allows automatic scrolling of the log screen
	Show log	(Ctrl-Tab)	Show the logging screen
	Show connections	(Ctrl-Tab)	Show the connection screen
	Save settings		Saves actual settings into the configuration (GyEIR_TelnetServer.ini) file

The bottom status-line

• Uptime: Time elapsed since module has been started up;
  • hovering over: Start date and time
  • left-click: Kernel and user time
  • right-click: Put a line into the log with the used DLL and its version
• IMEI'-lists (+/-/?): Number of insertions, deletions and queries related to the main EIR database since the module has been started
• IoT-lists (+/-/?): Number of insertions, deletions and queries related to the IoT database since the module has been started

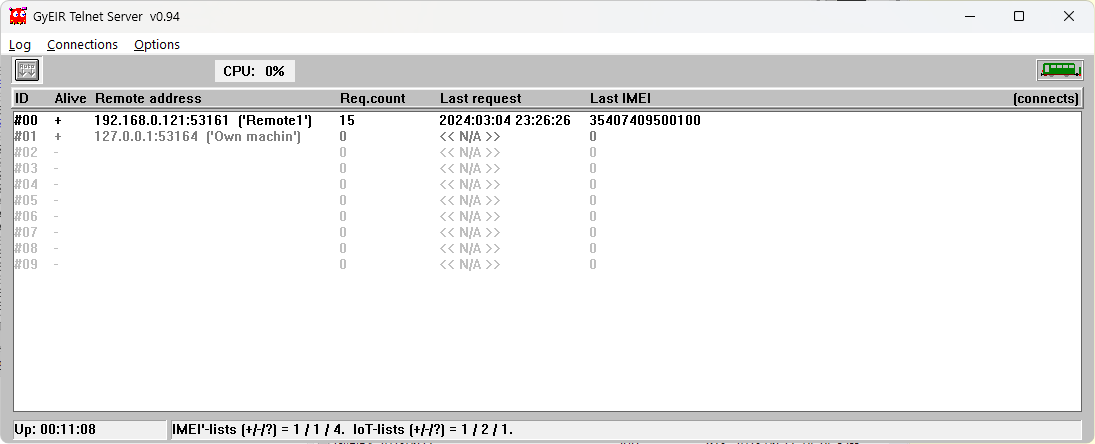

Details of connections window

• ID: identifier of the connection
• Alive: this connections is alive if + (there is connection)
• Remote Address: IP address of the client machine and the name of it from the GyEIR_TelnetServer.ini/[Stations Allowed] (if defined).
• Req.Count: number of received requests
• Last request: timestamp of last request
• Last IMEI: Last used IMEI

The popup menu of the connections screen

Available commands in "GyEIR Telnet Server"

Remarks

• n selects an IMEIList in the range of 0 and 9.
• IMEIStart, IMEIEnd, and IMEI consist of 14 decimal digits, where
  • digits 1..6 are the 'Type Approval Code',
  • digits 7..8 are the 'Final Assembly Code', and
  • digits 9..14 are the 'Serial Number'.
• IMSI consists of a maximum of 15 decimal digits, where
  • digits 1..3 are the 'Mobile Country Code',
  • digits 4..6 are the 'Mobile Network Code', and
  • digits 7.. are the 'Mobile Station Identification Number'.
• IDstring consists of a maximum of 20 alphanumeric characters.

A sample session

[12345678900001-12345678900004],

[12345678900007-12345678900014], and

[12345678900017-12345678900019].

        telnet 10.2.3.45 5066

        OK (connected).
        ---> 5.
        OK (0 entry).
        ---> 5L
        OK (loaded).
        ---> 5.
        OK (3 entries).
        ---> 5+12345678900005,12345678900007
        OK (inserted).
        ---> 5.
        OK (2 entries).
        ---> 5-12345678900006,12345678900006
        OK (deleted).
        ---> 5.
        OK (3 entries).
        ---> 5?12345678900005
        OK (found).
        ---> 5?12345678900006
        OK (not found).
        ---> 5?12345678900007
        OK (found).
        ---> ?12345678900005
        OK (5).
        ---> ?12345678900006
        OK (-).
        ---> ?12345678900007
        OK (5).
        ---> x
        OK (exiting...).

        Connection to host lost.
