TSP Lab LUcollectorCSPS LUcollectorCSPS

Location update statistics for CS and PS networks



Table of Contents

Features

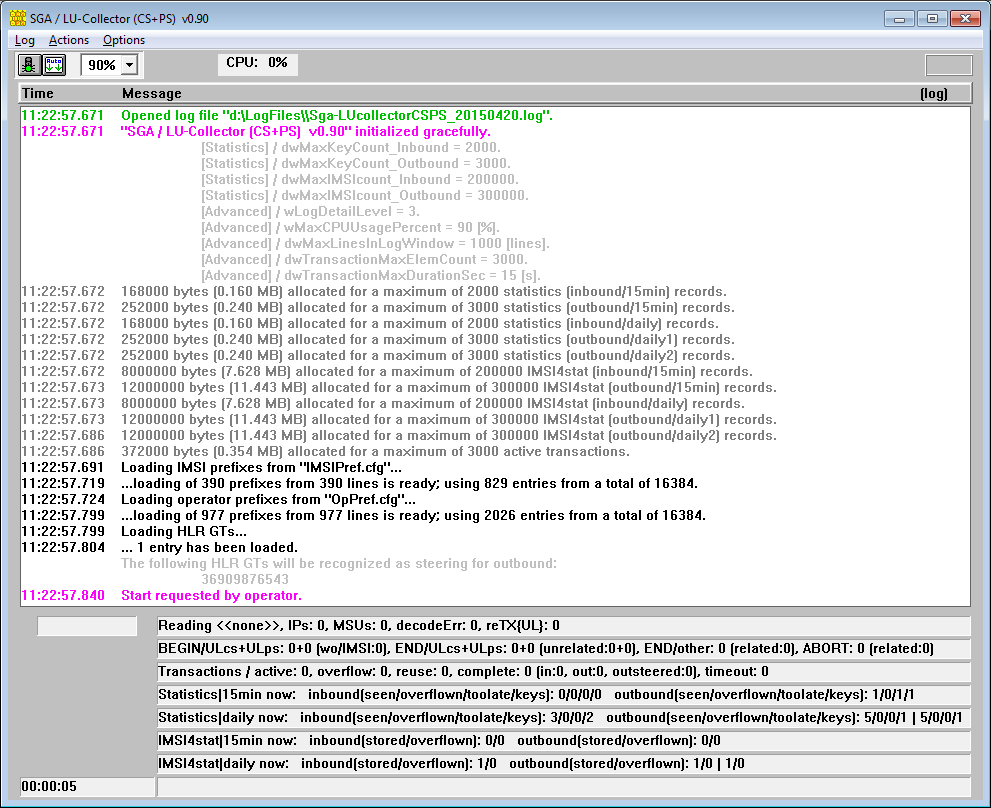

User interface

The main menu

Menu Menuitem Shortcut(s) Meaning
[Log]
  Find line containing... (Ctrl-F) Find text in log window
  Find next matching line (F3) Find next occurrence of text in log window
  Details   Detail level of logging (Off, Normal, Detailed, or Debug)
[Actions]
  Go on / Pause (Ctrl-P) Start or pause the processing of the 7199 files.
  Reload IMSI prefix names   Reload the actual IMSI prefix file to memory.
  Reload operator prefix names   Reload the actual Operator prefix file to memory.
  Reload INI / [HLR GTs]   Reload the actual HLR GT list to memory.
  Flush counters into log   Write the counters into the logfile.
  Flush & reset counters   Write the counters into the logfile and reset them.
[Options]
  Auto scroll (Scroll Lock, or ) Allow automatic scrolling of the log screen
  Save settings   Save actual settings into the configuration (INI) file

The bottom status-line

Input Files

 Input lists are applied at the start of the module and can be reloaded via menu items from the [Actions] menu. (IMSIPref.cfg, OpPref.cfg)
In case of unsuccessful read of any input files the module logs which line contains the problem and continues its working without loading the input file.

IMSI prefix list (IMSIPref.cfg)

 This file contains the list of IMSI prefixes and the assigned names.

Some example entries of IMSIPref.cfg:

	26203	GERMANY-E-PLUS
	26207	GERMANY-O2
	26208	GERMANY-O2
	26201	GERMANY-T-MOBILE
	26202	GERMANY-VODAFONE

Operator list (OpPref.cfg)

 This list contains the operator prefixes and the assigned operator names.

Some example entries of OpPref.cfg:

	49157	GERMANY-E-PLUS
	49177	GERMANY-E-PLUS
	49176	GERMANY-O2
	49151	GERMANY-T-MOBILE
	49160	GERMANY-T-MOBILE
	49170	GERMANY-T-MOBILE
	49171	GERMANY-T-MOBILE
	49175	GERMANY-T-MOBILE
	49172	GERMANY-VODAFONE

EC values for inbound and outbound cases

 These lists define the EC values which are appended to the statistics entries of the daily statistics files. Different values are defined for inbound and outbound cases. When the IMSI is not 21630*, then the inbound list is used, otherwise the outbound one is applied. The IMSIPrefName (inbount case) and the OpPrefName (outbound case) are used for selecting the proper EC values from the lists. If the 'Name' is not found in the corresponding list then the "*** default ***" entry is applied.

The EC lists related INI entries:

Some example entries of Sga-LUcollectorCSPS_E1E2E3_inbound.ini:
Note: The first character must be a comma so that the statistics file structure remains consistent.
	[E1E2E3 inbound]
	GAMBIA-AFRICELL = ,95,9,any text
	*** default *** = ,80,6,text2
	UKRAINE-KYIVSTAR = ,75,7,text3
Some example entries of Sga-LUcollectorCSPS_E1E2E3_outbound.ini:
	[E1E2E3 outbound]
	GAMBIA-AFRICELL = ,90,9,any text
	*** default *** = ,88,6,textA
	UKRAINE-KYIVSTAR = ,82,7,textB

Output Files

15-minute statistics

 Statistics files contain comma separated values and are saved in CSV files in every quarter hour.

The file names of the 15-minute statistics are the following:

	Inbound_CSPS_YYYYMMDD_hhmm.csv
	Outbound_CSPS_YYYYMMDD_hhmm.csv
Date and time indicate the beginning of the statistics period.

The structure of 15-minute statistics files are the following:

Inbound_CSPS:

15-minute statistics of inbound roamers grouped by IMSIPrefCode.
	IMSIPrefCode,   IMSIPrefName,      LU,   LUOK,   Per,   IMSIOK,   LUGPRS,   LUOKGPRS,   PerGPRS,   IMSIOKGPRS
	20210,          Greece-Wind,       1,    0,      0,     0,        1,        1,          100,       1
	26201,          Germany-Telekom,   2,    2,      100,   2,        2,        1,          50,        1
	26202,          Germany-Vodafone,  4,    1,      25,    1,        0,        0,          ,          0
Fields of 15-minute statistics file for inbound roamers:

Outbound_CSPS:

15-minute statistics of Oubound roamers grouped by SCCP/ClgPa GT.
	GT,            OpPrefName,         LU,   LUOK,   Per,   IMSIOK,   LUGPRS,   LUOKGPRS,   PerGPRS,   IMSIOKGPRS
	306912345678,  Greece-Wind,        1,    0,      0,     0,        1,        1,          100,       1
	491612345678,  Germany-Telekom,    2,    2,      100,   2,        2,        1,          50,        1
	491712345678,  Germany-Vodafone,   4,    1,      25,    1,        0,        0,          ,          0
Fields of 15-minute statistics file for outbound roamers: When an IMSI or an Operator prefix cannot be found in the corresponding list then the IMSIPrefName or the OpPrefName field would be "<*_NotRecognized_*>" and this case is logged.

Daily statistics

 Statistics files contain comma separated values and are saved into CSV files in every day.

The file names of the daily statistics are the following:

	Inbound_CSPS_Day_YYYYMMDD_hhmm.csv
	Outbound_CSPS_GT_Day_YYYYMMDD_hhmm.csv
	Outbound_CSPS_Day_YYYYMMDD_hhmm.csv
	Inbound_CSxorPS_DailyIMSIlist_YYYMMDD.csv
	Outbound_CSxorPS_DailyIMSIlist_YYYMMDD.csv
Date indicates the beginning of the statistics period.

The structure of daily statistics files are the following:

Inbound_CSPS_Day:

Daily statistics of inbound roamers grouped by IMSIPrefName.
	IMSIPrefName,      LU,   LUOK,   Per,   IMSIOK,   LUGPRS,   LUOKGPRS,   PerGPRS,   IMSIOKGPRS,   EC1,   EC2,   EC3
	Greece-Wind,       1,    0,      0,     0,        1,        1,          100,       1,            45,    45,    45
	Germany-Telekom,   2,    2,      100,   2,        2,        1,          50,        1,            45,    45,    45
	Germany-Vodafone,  4,    1,      25,    1,        0,        0,          ,          0,            45,    45,    45
Fields of the daily statistics file for inbound roamers: When an IMSI or an Operator prefix cannot be found in the corresponding list then the IMSIPrefName or the OpPrefName field would be "<*_NotRecognized_*>" and this case is logged.

Outbound_CSPS_Day:

Daily statistics of inbound roamers grouped by OpPrefName.
	OpPrefName,         LU,   LUOK,   Per,   IMSIOK,   LUGPRS,   LUOKGPRS,   PerGPRS,   IMSIOKGPRS,   EC1,   EC2,   EC3
	Greece-Wind,        1,    0,      0,     0,        1,        1,          100,       1             45,    45,    45
	Germany-Telekom,    2,    2,      100,   2,        2,        1,          50,        1             45,    45,    45
	Germany-Vodafone,   4,    1,      25,    1,        0,        0,          ,          0             45,    45,    45
Fields of the daily statistics file no1 for outbound roamers: When an IMSI or an Operator prefix cannot be found in the corresponding list then the IMSIPrefName or the OpPrefName field would be "<*_NotRecognized_*>" and this case is logged.

Outbound_CSPS_GT_Day:

Daily statistics of inbound roamers grouped by SCCP/ClgPa GT.
	GT,            OpPrefName,         LU,   LUOK,   Per,   IMSIOK,   LUGPRS,   LUOKGPRS,   PerGPRS,   IMSIOKGPRS,   EC1,   EC2,   EC3
	306912345678,  Greece-Wind,        1,    0,      0,     0,        1,        1,          100,       1             45,    45,    45
	491612345678,  Germany-Telekom,    2,    2,      100,   2,        2,        1,          50,        1             45,    45,    45
	491712345678,  Germany-Vodafone,   4,    1,      25,    1,        0,        0,          ,          0             45,    45,    45
Fields of the daily statistics file no2 for outbound roamers: When an IMSI or an Operator prefix cannot be found in the corresponding list then the IMSIPrefName or the OpPrefName field would be "<*_NotRecognized_*>" and this case is logged.


Inbound_CSxorPS_DailyIMSIlist: A list of the inbound subscribers who attached only to CS or to PS network.
Outbound_CSxorPS_DailyIMSIlist: A list of the outbound subscribers who attached only to CS or to PS network.
	Date,        IMSI,             Operator,           Only-...
	2015.01.01,  216991234567890   Greece-Wind,        CS,
	2015.01.01,  226991234567891   Germany-Telekom,    CS,
	2015.01.01,  236991234567890   Germany-Vodafone,   PS,
Fields of the daily statistics file no2 for outbound roamers: When an IMSI or an Operator prefix cannot be found in the corresponding list then the IMSIPrefName or the OpPrefName field would be "<*_NotRecognized_*>" and this case is logged.

Logging

 The module creates daily logfiles about its working. The name of the logfile is "Modulename_YYYYMMDD.log" reflecting the day when it is created.
The module can write information into the logfile and onto the screen with several detail levels set by the [Log]/Details menu item. The logging level can be: Status line counters are logged in every fifteen minutes irrespectively of logging level actually set.

The different colors of log entries have different meanings:

Code Color Usage
0 Black Compact data record
1 Red Errors
2 Green Open/close output file/stream
3 Blue Open/close input file/stream
4 Yellow Warnings
5 Light Gray Detailed data (debug info)
6 Dark Grey Detailed data (user info)
7 Purple Operator intervention;
Errors with emphasis

Configuration (Sga-LUcollectorCSPS.ini) file settings

Section Entry Example Meaning
[Position]
  iLeft 140 Position of the program module on the display screen
  iTop 72 Position of the program module on the display screen
  iWidth 995 Position of the program module on the display screen
  iHeight 694 Position of the program module on the display screen
[Options]
  bAutoScroll True (Refer to the corresponding menu item!)
[HLR GTs]
  36909876543 HLR1_GT GT number of the HLRs. Right side is mandatory but ignored.
[Statistics]
  dwMaxKeyCount_Inbound 2000 Maximum keys saved in memory for inbound roamers. The keys have different meaning based on the statistic type. Please check the bottom status line for more information.
  dwMaxKeyCount_Outbound 3000 Maximum keys saved in memory for outbound roamers. The keys have different meaning based on the statistic type. Please check the bottom status line for more information.
  dwMaxIMSIcount_Inbound 200000 Maximum IMSIs saved in memory for inbound roamers.
  dwMaxIMSIcount_Outbound 300000 Maximum IMSIs saved in memory for outbound roamers.
  sOutputPath d:\StatFiles Path of the statistic files.
  sDailyIMSIlistPath d:\StatFiles Path of the daily IMSI list file.
  sEC1EC2EC3file_Inbound .\Sga-LUcollectorCSPS_E1E2E3_inbound.ini Path and file name for inbound EC list file.
The file referred here can either be a separate file or can point to any existing file, even to the main module's ini.
Loaded on-the-fly, i.e., when daily statistics are written.
  sEC1EC2EC3section_Inbound E1E2E3 inbound Defines the section name for inbound EC list within the EC1EC2EC3file_Inbound file.
Loaded on-the-fly, i.e., when daily statistics are written.
  sEC1EC2EC3file_Outbound .\Sga-LUcollectorCSPS_E1E2E3_outbound.ini Path and file name for outbound EC list file.
The file referred here can either be a separate file or can point to any existing file, even to the main module's ini.
Loaded on-the-fly, i.e., when daily statistics are written.
  sEC1EC2EC3section_Outbound E1E2E3 outbound Defines the section name for outbound EC list within the EC1EC2EC3file_Outbound file.
Loaded on-the-fly, i.e., when daily statistics are written.
[Advanced]
  wLogDetailLevel 3 (Equals to the listed order; refer to the corresponding menu item!)
  dwMaxLinesInLogWindow 1000 Number of lines in the log window on screen.
  wMaxCPUUsagePercent 90 Maximum CPU usage in percent.
  dwTransactionMaxElemCount 3000 Number of maximum active transactions at the same time.
  dwTransactionMaxDurationSec 15 Maximum time period for an UpdLoc transaction in seconds. After this time the transaction will force-close with TimedOut reason.
  sIMSIPrefFile IMSIPref.cfg Path and file name for the IMSI prefix file.
  sOpPrefFile OpPref.cfg Path and file name for the operator prefix file.
  sLogFilesPath d:\LogFiles Path of the LOG files.
  sLUdataFilesPath d:\DataFiles Path of the "CDR" files for debug purposes.
  sOutput9006FilesPath d:\Data9006Files Path of the "Sga-9006" files containing location related data.

Version history
