TSP Lab	Sga-BV_IMSISDN-DB_Console - The IMSI-MSISDN database console	Sga-BV_IMSISDN-DB_Console

The provisioning console of IMSI-MSISDN database of "Sga-BV" function
`("Sga-BV_IMSISDN-DB_Console")`

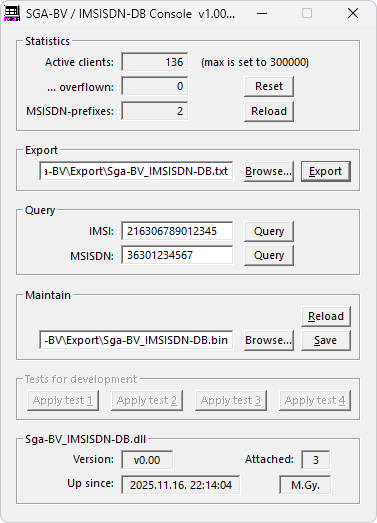

Features

Active clients: Number of IMSI-MSISDN pairs currently stored in the database
...overflown: If the number of entries in the database file reaches the Sga-BV_IMSISDN-DB.ini/[Settings]/dwClientCountMax the new IMSI-MSISDN pairs will be dropped and counted here
- Reset: Operator can reset the overflown counter
MSISDN-prefixes: Number of defined MSISDN prefixes being monitored
- Reload: MSISDN-prefix list can be reloaded during the operation

Input field: Output text file can be defined by typing
- Browse: Output text file can be defined by browsing
- Export: Content of the IMSI-MSISDN memory will be exported

IMSI: An IMSI can be given for which the MSISDN is being searched
- Query: Gives the MSISDN belonging to the given IMSI (if found)
MSISDN: An MSISDN can be given for which the IMSI is being searched
- Query: Gives the IMSI belonging to the given MSISDN (if found)

Reload : Reloads IMSI-MSISDN entries from the binary file given below. Entries in backup are added to the existing records.
Browse : Binary backup file can be set
Save : Saves the current database into a binary file

Version : Gives version of Sga-BV_IMSISDN-DB.dll
Attached : Number of modules that currently use Sga-BV_IMSISDN-DB.dll
Up since : Date and time when Sga-BV_IMSISDN-DB.dll was started (when the first module attached to it)
Signature : Signature of the developer

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
[Advanced]
	sExportBinFileName	d:\Export\Sga-BV_IMSISDN-DB.bin	Defines the file where entries will be exported into in binary format for reload
	sExportTextFileName	d:\Export\Sga-BV_IMSISDN-DB.txt	Defines the file where subscriber data will be exported into in text format

v1.00
