Sga7N GyDB File Archiver
`("Sga7N_GyDB_Archiver")`

Basic operation

Provide regular archiving of GyDB data
Check input folders and archives files that fulfill preset conditions
Delete source data when conditions are met
Check free space on destination disk
Run automatically once a day, at 4am.

User's Interface

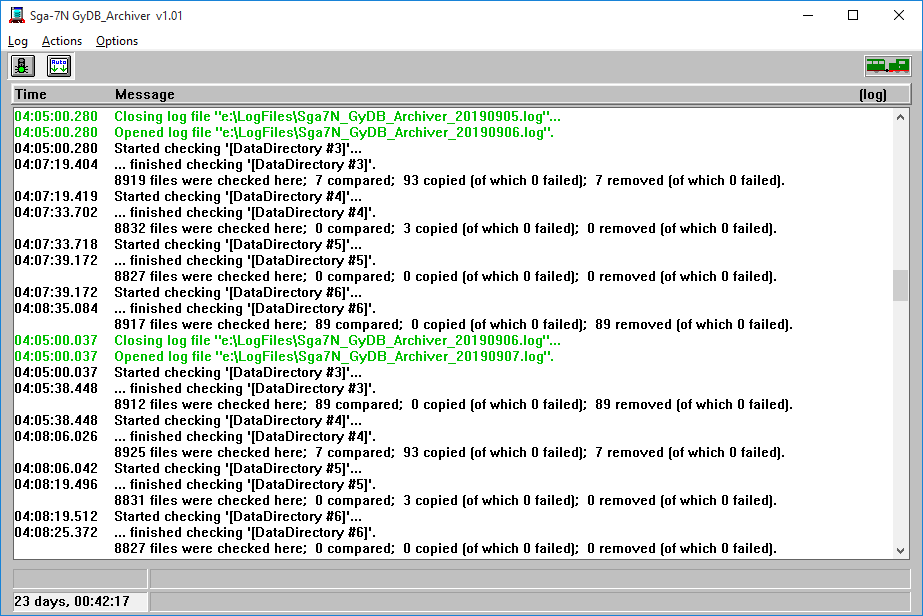

Main screen

After starting the program main window appears:

The main menu

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Finds text in log window
	Find next matching line	(F3)	Finds next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed, or Debug)
[Actions]
	Auto-run at night	(Ctrl+P or )	Enables data archiving at night
	Check once now	(Ctrl+C)	Checks whether conditions are met once now
	Run once now	(Ctrl+R)	Starts archiving now
	Stop processing	(Ctrl+S)	Interrupts archiving currently being processed
[Options]
	Auto scroll	()	Allow automatic scrolling of the log screen
	Save settings		Save settings into INI file

The bottom status-line

Uptime: Time elapsed from the last start of the program

Configuration (`Sga7N_GyDB_Archiver.ini`) file settings

This file has to be placed in the same directory as the executable file placed!
Program saves the actual settings selecting Options/Save settings menu item.

Section Entry Example Meaning
[Position]
iLeft 132 The initial horizontal position of the Main screen, in pixel
iTop 132 The initial vertical position of the Main screen, in pixel
iWidth 770 The initial width of the Main screen, in pixel
iHeight 558 The initial height of the Main screen, in pixel
[Options]
bAutoscroll True If True, log list automatically scrolls to the last line, when a new item inserted
[Advanced]
dwLogDetaiLevel 3 (Equals to the listed order; refer to the [Log]/Details menu item!)
dwMaxLinesInLogWindow 500 Number of lines in the log window on screen
sLogFilesPath D:\SGA\LogFiles Path of directory of log files
[DataDirectory #N]
sSourcePath H:\CellDB_1 Path for data to be archived
sDestination1Path J:\BackUp_CellDB_1 Destination of archiving
sDestination2Path J:\BackUp_CellDB_2 Optional secondary destination of archiving
dwSourceCopyIfOlderThanSec 3600 Copy source data when it is older than this value
dwSourceRemoveIfOlderThanDay 365 Delete source data when it is older than this value
dwSourceIgnoreIfOlderThanDay 400 Ignore source data when it is older than this value
dwSourceWarnIfBelowGByteFree 100 Put a warning line in the log when free space on source disk is below this value
dwDestination1WarnIfBelowGByteFree 100 Put a warning line in the log when free space on destination disk is below this value

Section	Entry	Example	Meaning
[Position]
	iLeft	132	The initial horizontal position of the Main screen, in pixel
	iTop	132	The initial vertical position of the Main screen, in pixel
	iWidth	770	The initial width of the Main screen, in pixel
	iHeight	558	The initial height of the Main screen, in pixel
[Options]
	bAutoscroll	True	If True, log list automatically scrolls to the last line, when a new item inserted
[Advanced]
	dwLogDetaiLevel	3	(Equals to the listed order; refer to the [Log]/Details menu item!)
	dwMaxLinesInLogWindow	500	Number of lines in the log window on screen
	sLogFilesPath	D:\SGA\LogFiles	Path of directory of log files
[DataDirectory #N]
	sSourcePath	H:\CellDB_1	Path for data to be archived
	sDestination1Path	J:\BackUp_CellDB_1	Destination of archiving
	sDestination2Path	J:\BackUp_CellDB_2	Optional secondary destination of archiving
	dwSourceCopyIfOlderThanSec	3600	Copy source data when it is older than this value
	dwSourceRemoveIfOlderThanDay	365	Delete source data when it is older than this value
	dwSourceIgnoreIfOlderThanDay	400	Ignore source data when it is older than this value
	dwSourceWarnIfBelowGByteFree	100	Put a warning line in the log when free space on source disk is below this value
	dwDestination1WarnIfBelowGByteFree	100	Put a warning line in the log when free space on destination disk is below this value
