SRI CDR Lister module
`("Sga7N_GyDB_Lister_SRI")`

Features

Lists sendRoutingInfo records ("SRI CDR") for a given time interval from the SRI CDR database created by the SRI CDR Loader module
Can filter for
- MSISDN
- IMSI
- Roaming or Forwarded to Number
- TransactionID
Output is a 'comma separated value' (csv) format
If file association is made output can be opened directly from the lister module

The Sga7N_GyDB_Lister_SRI module can be started by double clicking on its icon (as usual in Windows enviroment).

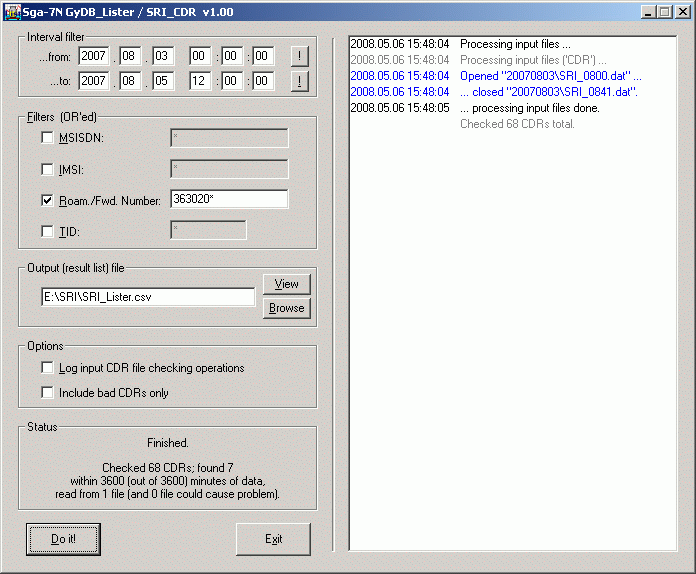

After this the main window appears:

Interval filter
- SRI records are listed which timestamp is between ...from and ...to value
- !: this button fills the time fields with the actual date and time
Filters (OR'ed)
- MSISDN: only SRI CDRs that contain the given MSISDN will be listed
- IMSI: only records that contain this identifier will be shown
- Roam./Fwd. Number: only CDRs that contain this Roaming or Forwarded to Number will be listed
- TID: only SRI records that contain this TransactionID will be listed
- If at least two values are given the relation between them is ’OR’
Output (result list) file
- View: with this button the result can be viewed if the selected filetype is associated with the proper application to open
- Browse: the result file can be selected (if this is an existing file) by browsing the local filesystem
Options
- Log input CDR file checking operations: "Checking "YYYYDDMM\SRI_HHMM.dat"..." logging text will appear in the Log Window
- Include bad CDRs only: Records missing any messages will be put into the output file
Status
- Shows the status of the processing
Do it!/Abort!
- Starts the listing, creates output CDR list file
- Interrupts listing
Exit
- Close the program

Date & time (Invoke): timestamp of the sendRoutingInfo_Invocation message
NP&ES / NoA: NumberingPlan, EncodingScheme and NatureofAddress parameters of the MSCGT from the SRI_Inv message
MSC GT: GlobalTitle of the MSC from the SRI_Inv message
NP&ToN / MSISDN: NumberingPlan and TypeofNumber parameters of the MSISDN and the MSISDN from the SRI_Inv
IMSI: IMSI of the subscriber from the SRI_Res message
NP&ToN / RN/FTN: RoamingNumber or ForwardedToNumber and its NumberingPlan and TypeofNumber paramters from the SRI_Res message
NPS: NumberPortabilityStatus from the SRI_Res message
TID: TransactionID
Duration [ms]: time elapsed between the SRI_Inv and the SRI_Res
Invoke SigLink: SigLinkID where the SRI_Inv was seen
Result SigLink: SigLinkID where the SRI_Res was seen
Remark: the following remarks can be in this field (in normal case there is no remark):
- REUSE: a new SRI_Inv has arrived with the same TID while a previous transaction has not been closed, yet. (Reuse counter will be increased)
- TIMEOUT: there has been a missing SRI_Res for a sendRoutingInfo (or the transaction is too long) and connection time is more than Sga7N_SRI_CDRGen.ini/[Advanced]/dwTransactionMaxDurationSec (TimeOut counter will be increased)
- UDTS: the HLR has responded with a Unitdataservice message type
- QUIT: the CDR generator has closed the CDR because it was shut down

The configuration file is placed in the same directory where Sga7N_GyDB_Lister_SRI.exe is found.

Section	Entry	Example	Meaning
[Settings]			In this section parameters and settings from the user interface are stored for the next usage.
[Advanced]
	sDataPath	d:\SRI_CDR	Path for the input SRI CDR dat files

v1.00

(c) Handles NP, NoA, ES, and ToN parameters of the MSC GT, MSISDN, and ResultNumber fields.

v0.90
