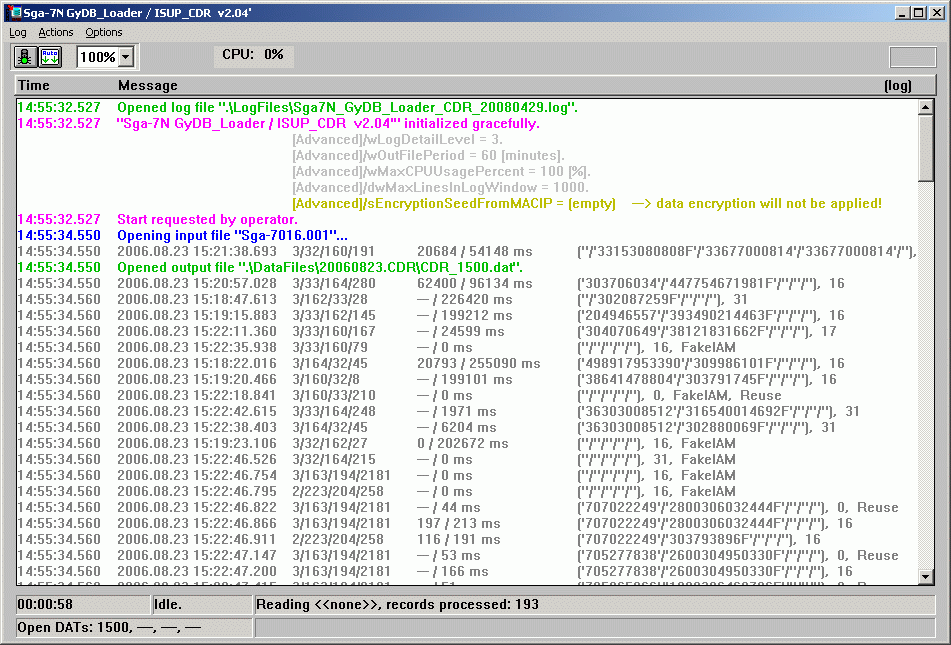

| TSP Lab | CDR Database Loader | Sga7N_GyDB_Loader_CDR and Sga7N_GyDB_Loader_CDR_7017 |
|---|
| Menu | Menuitem | Shortcut(s) | Meaning |
|---|---|---|---|
| [Log] | |||
| Find line containing... | (Ctrl-F) | Finds text in log window | |
| Find next matching line | (F3) | Finds next occurrence of text in log window | |
| Details | Detail level of logging (Off, Normal, Detailed, or Debug) | ||
| [Actions] | |||
| Go on / Pause | (Ctrl-P, or   )
| Allow periodic scanning of the working directory for Sga-7016.xxx files | |
| Release files | (Ctrl-R) | Input and output files will be let off | |
| [Options] | |||
| Auto scroll | (ScrollLock, or   )
| Allow automatic scrolling of the log screen | |
| Save settings | Save actual settings into the configuration (Sga7N_GyDB_Loader_CDR.INI) file |
| Section | Entry | Example | Meaning | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [Position] | |||||||||||||||||||||||||||||||||||
| iLeft | 140 | Position of the program module on the display screen | |||||||||||||||||||||||||||||||||
| iTop | 72 | Position of the program module on the display screen | |||||||||||||||||||||||||||||||||
| iWidth | 995 | Position of the program module on the display screen | |||||||||||||||||||||||||||||||||
| iHeight | 694 | Position of the program module on the display screen | |||||||||||||||||||||||||||||||||
| [Options] | |||||||||||||||||||||||||||||||||||
| bAutoScroll | True | (Refer to the [OPTIONS]/Auto scroll menuitem!) | |||||||||||||||||||||||||||||||||
| [Advanced] | |||||||||||||||||||||||||||||||||||
| wLogDetailLevel | 3 | (Equals to the listed order; refer to the [LOG]/Details menuitem!)
|
| wMaxCPUUsagePercent
| 25
| Limit of CPU-usage for this module
|
| dwMaxLinesInLogWindow
| 1000
| Number of lines in the log window on screen
|
| wOutFilePeriod
| 60
| Period of closing database file
|
| dwOutFilePreallocationSize
| 120000000
| Preallocated size of CDR files, in bytes.
|
| sDataPath
| d:\ISUPCDR
| Path for CDR database files
|
| sLogFilesPath
| d:\LogFiles
| Path for the LOG files
|
| sTrapFilesPath
| d:\TrapFiles
| Path for SNMP trap files
|
| sEncryptionSeedFromMACIP
| 111.222.333.444
| If it is set encryption will be apllied on output files to hide sensitive data.
It should be one of the IP addresses of the machine where the loader module is running on.
| |
Version history (for Sga7N_GyDB_Loader_CDR)
