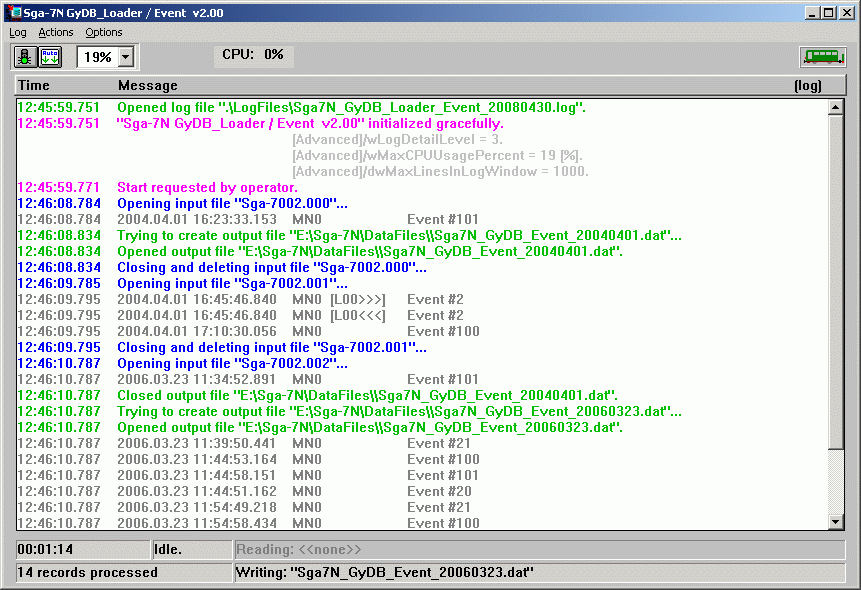

Event Database Loader
`("Sga7N_GyDB_Loader_Event")`

Basic Operation

Periodically scans the working directory for Sga-7002.xxx files, created by the Monitor Poller module
Scans folders given in the configuration file's sDataFilesMaskXX entries for input files created by any other module(s)
Writes event records into binary data files
Event records contain the followings:
- Timestamp
- ID of the monitor where the event occured was created
- Signaling link ID and direction if that event is a signalink link related one
- Event ID
Creates SNMP traps about its shut down and if any problem has been occured during opening input or writing output files

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Finds text in log window
	Find next matching line	(F3)	Finds next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed, or Debug)
[Actions]
	Go on / Pause	(Ctrl-P, or )	Allow periodic scanning of the working directory for `Sga-7002.xxx` files
	Release files	(Ctrl-R)	Input and output files will be let off
[Options]
	Auto scroll	(ScrollLock, or )	Allow automatic scrolling of the log screen
	Save settings		Save actual settings into the configuration (`Sga7N_GyDB_Loader_Event.INI`) file

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[OPTIONS]/Auto scroll` menuitem!)
[Advanced]
	wLogDetailLevel	3	(Equals to the listed order; refer to the `[LOG]/Details menuitem!)`
	wMaxCPUUsagePercent	25	Limit of CPU-usage for this module
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sDataPath	d:\StatCDR	Path for statistical data files
	sLogFilesPath	d:\LogFiles	Path for the LOG files
	sTrapFilesPath	d:\TrapFiles	Path for SNMP trap files
	sDataFilesMaskXX	d:\EventFiles_XX	The Event Loader module can handle futher input directories beside the working directory from where it can load events into the database. At most 100 additional directory can be defined. (XX can be from 00 to 99.)

v2.00
