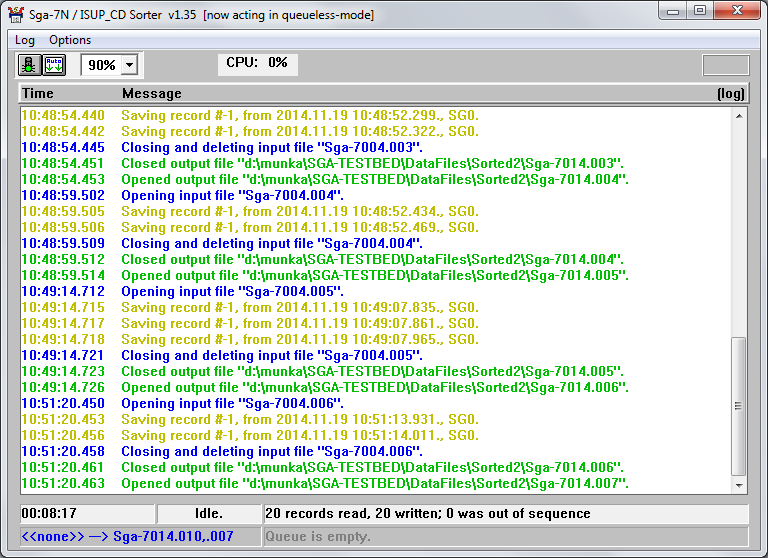

TSP Lab	Sga7N_ISUP_CDSorter - The sorter module	Sga7N_ISUP_CDSorter

The sorter module for call related ISUP messages
`("Sga7N_ISUP_CDSorter")`

Basic Operation

Periodically scans the working directory for Sga-7004.xxx files created by the Monitor Poller module.
Loads call related messages into a preset size FIFO type buffer
Sorts messages based on their timestamp and writes out the oldest ones into Sga-7014.xxx files
Causes a small delay defined by the size of the buffer
Loaded components can be saved back into input file for providing the continuous CDR generation when the module shuts down

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Find text in log window
	Find next matching line	(F3)	Find next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed or Debug)
[Options]
	Go on / Pause	(Ctrl-P, or )	Allow periodic scanning of the working directory for `Sga-7004.xxx` files
	Auto scroll	(ScrollLock, or )	Allow automatic scrolling of the log screen
	Save settings		Save actual settings into the configuration (`Sga7N_ISUP_CDSorter.ini`) file

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[Options]/Auto scroll` menuitem!)
[Advanced]
	dwMaxCDRRelatedElemCount	2500	Size of the sorter buffer
	dwMaxQueueLengthSec	30	Maximum time that elements can spend in sorting queue
	wLogDetailLevel	3	(Equals to the listed order; refer to the `[LOG]/Details menuitem!)`
	wMaxCPUUsagePercent	25	Limit of CPU-usage for this module
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sOutput1Path	d:\DataFiles1\	Path for the output files (`Sga-7014.xxx`) that contain the sorted components
	sOutput2Path	d:\DataFiles2\	Alternate path for the output files (`Sga-7014.xxx`) that contain the sorted components
	sLogFilesPath	d:\LogFiles	Path for the LOG files
	dwDataFileCutSize	10000000	Maximum size of each output files (given in bytes)

v1.35

v1.34

(c) Output files can be written into two separete directory (see sOutput1Path and Output2Path entries).

v1.33

(n) New entry for maximum time that elements can spend in sorting queue (see dwMaxQueueLengthSec entry).

v1.32

v1.31

(c) Speed up record reading and sorting.
(c) New status bar element: time gap between the oldest and the newest record in sorting queue is also indicated.
(c) New status bar element: number of out-of-sequence records is also indicated.
(n) Clear key (NumPad-5) clears highlight (selection) in either window.

v1.30

(c) Module is renamed from "Sga7NCDSorter" to "Sga7N_ISUP_CDSorter".
(c) Log file's name is also changed from "Sga7NCDSorter_YYYYMMDD.log" to "Sga7N_ISUP_CDSorter_YYYYMMDD.log".
(n) Handles new IAM messages as well.
(c) Active records' (that are not not-yet-flushed) file name is changed from "Sga-7014.SAV" to "Sga-7004.SAW"; don't forget to rename the actual when upgrading.
(c) Output files' name is changed from "Sga-7004.nnn" to "Sga-7014.nnn".
(c) "Omit yellow (warning) lines from log file" menu item is removed.
(c) Log on start-up includes the section name for the particular INI settings.
(c) Detailed and debug log lines look nicer (due to tabbing).

v1.02

(n) Size of output data files can globally be limited.
(n) INI/[Advanced]/dwDataFileCutSize (given in bytes, defaults to 1000000, logged at start-up).
(c) Refresh interval can no longer be set; the default '1000 ms' setting will always be applied.
(c) INI/[Advanced]/wRefreshInterval is obsolete.

v1.01

(n) Indicates (and handles) Network Indicator tag (NI) for DPC and OPC fields.

v1.00
