TSP Lab	Sga7N_SRI_CDSorter - The SRI sorter module	Sga7N_SRI_CDSorter

The sendRoutingInfo message sorter module
`("Sga7N_SRI_CDSorter")`

Basic Operation

Periodically scans the working directory for Sga-7010.xxx files created by the Monitor Poller module.
Loads sendRoutingInfo messages into a preset size FIFO type buffer
Sorts messages based on their timestamp and writes out the oldest ones into Sga-7011.xxx files
Causes a small delay defined by the size of the buffer
Loaded components can be saved back into input file for providing the continous CDR generaton when the module shuts down

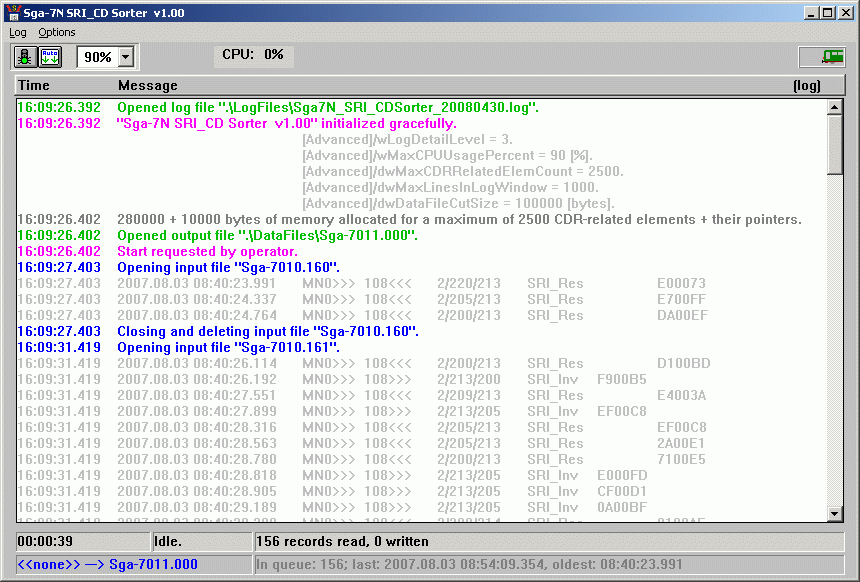

User Interface

The main menu

Menu	Menuitem	Shortcut(s)	Meaning !--=======================================-->
[Log]
	Find line containing...	(Ctrl-F)	Find text in log window
	Find next matching line	(F3)	Find next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed or Debug)
[Options]
	Go on / Pause	(Ctrl-P, or )	Allow periodic scanning of the working directory for `Sga-7010.xxx` files
	Auto scroll	(ScrollLock, or )	Allow automatic scrolling of the log screen
	Save settings		Save actual settings into the configuration (`Sga7N_SRI_CDSorter.ini`) file

The bottom status-line

Uptime: time elapsed since module has been started up.
Name of the actual input file being read and outfile being written.
Number of the read and the written records.
Number of components in the buffer
Number of messages out of order (when END or UDTS messages have earlier timestamp than the preceeding BEGINs)
Timestamp of the last and the oldest components

Configuration (`Sga7N_SRI_CDSorter.ini`) file settings

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[Options]/Auto scroll` menuitem!)
[Advanced]
	dwTrickyDelayMS	3	Delay to be applied when the SRI_Res MSU precedes the SRI_Inv.
	dwMaxCDRRelatedElemCount	2500	Size of the sorter buffer
	wLogDetailLevel	3	(Equals to the listed order; refer to the `[LOG]/Details menuitem!)`
	wMaxCPUUsagePercent	25	Limit of CPU-usage for this module
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sDataPath	d:\DataFiles\	Path for the output files (`Sga-7011.xxx`) that contain the sorted components
	sLogFilesPath	d:\LogFiles	Path for the LOG files
	dwDataFileCutSize	10000000	Maximum size of each output files (given in bytes)

Version history

v1.02

(c) END and UDTS delays are configurable.

v1.01

(c) END and UDTS messages are delayed by 3 msec.

v1.00

(c) Handles NP, NoA, ES, and ToN parameters of the MSC GT, MSISDN, and ResultNumber fields.

v0.90

It's brand new.
