| Menu
| Menuitem
| Shortcut(s)
| Meaning
|

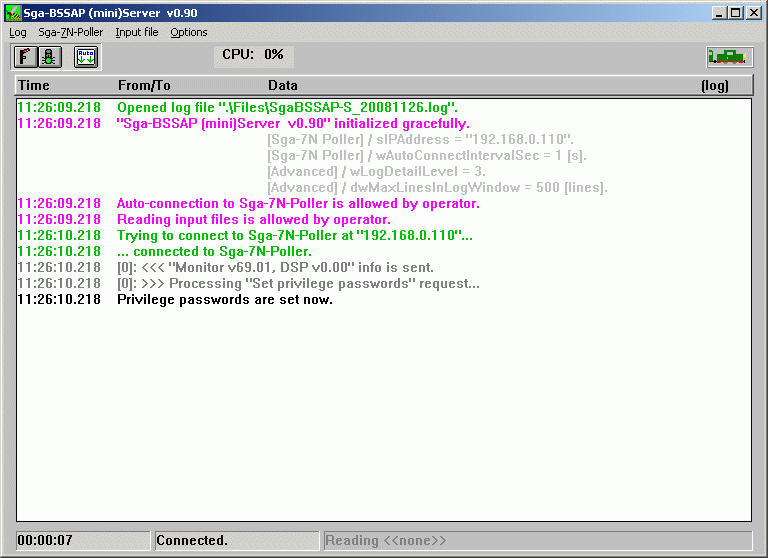

| [Log]
|
|
|
|
|
| Find line containing...
| (Ctrl-F)
| Find text in log window
|
|
| Find next matching line
| (F3)
| Find next occurrence of text in log window
|
|
| Details
|
| Detail level of logging (Off, Normal, Detailed or Debug)
|
| [Sga-7N-Poller]
|
|
|
|
|
| Allow auto-connect
| (CTRL-A or   )
| Allows/Prohibits automatic connecting to Sga-7N-Poller unit
|
|
| Disconnect now!
| (CTRL-D)
| Disconnects from Sga-7N-Poiller unit immediately
|
| [Input file]
|
|
|
|
|
| Allow reading
| (  )
| Allows/Prohibits opening and reading Sga-7008.xxx input file
|
|
| Release it now!
|
| Release (close) input file currently being processed
|
| [Options]
|
|
|
|
|
| Auto scroll
| (ScrollLock, or   )
| Allow automatic scrolling of the log screen
|
|
| Show log
| Clicking headline of main list
| Switches main list for log view
|
|
| Show call trace status
| Clicking headline of main list
| Switches main list for call trace status view
|
|
| Save settings
|
| Save actual settings into the configuration (SgaBSSAP-S.INI) file
|
| Section
| Entry
| Example
| Meaning
|
| [Position]
|
|
|
|
|
| iLeft
| 132
| Position of the program module on the display screen
|
|
| iTop
| 132
| Position of the program module on the display screen
|
|
| iWidth
| 768
| Position of the program module on the display screen
|
|
| iHeight
| 558
| Position of the program module on the display screen
|
| [Options]
|
|
|
|
|
| bAutoScroll
| True
| (Refer to the [Options]/Auto scroll menuitem!)
|
| [Sga-7N Poller]
|
|
|
|
|
| sIPAddress
| 192.168.0.109
| IP address of Sga-7N-Poller unit
|
|
| bAllowAutoConnect
| True
| >(Refer to the [Sga-7N-Poller]/Allow auto-connect menuitem!)
|
|
| wAutoConnectIntervalSec
| 5
| Trying interval of establishing connection to the Sga-7N-Poller unit (in sec)
|
| [LocUpdStat(7008)Files]
|
|
|
|
|
| sPath
| d:\DataFiles
| Path for the Sga-7008.xxx data files
|
|
| bAllowReading
| True
| >(Refer to the [Input file]/Allow reading menuitem!)
|
| [Advanced]
|
|
|
|
|
| wLogDetailLevel
| 3
| (Equals to the listed order; refer to the [LOG]/Details menuitem!)
|
| dwMaxLinesInLogWindow
| 1000
| Number of lines in the log window on screen
|
|
| sLogFilesPath
| d:\LogFiles
| Path for the LOG files
| |
