TSP Lab	SgaBSSAP_HOServer - BSSAP HO-Server module	SgaBSSAP_HOServer

The BSSAP Handover Server module
`("SgaBSSAP_HOServer")`

Basic Operation

Accepts TCP/IP connection from BSSAP CDR Assembler modules
Receives and stores handover related information (timestamp, newLACCI, HOref, IMSI)
Serves queries from BSSAP CDR Assembler modules

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Find text in log window
	Find next matching line	(F3)	Find next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed or Debug)
	Flush status-line counters into log		Actual values of the status-line counters are written into the log
[Actions]
	Reload BSSAP/CDR-Assembler units' data from INI/[BSSAP/CDR-Assemblers]		List of BSSAP Assembler units can be reloaded on operator requests
	Accept BSSAP/CDR-Assemblers	(Ctrl-A)	Enables incoming connections of BSSAP/CDR-Assembler units
	DEBUG: List recent 100 entries		Lists recent 100 entries into the log
[Options]
	Auto scroll	(ScrollLock, or )	Allow automatic scrolling of the log screen

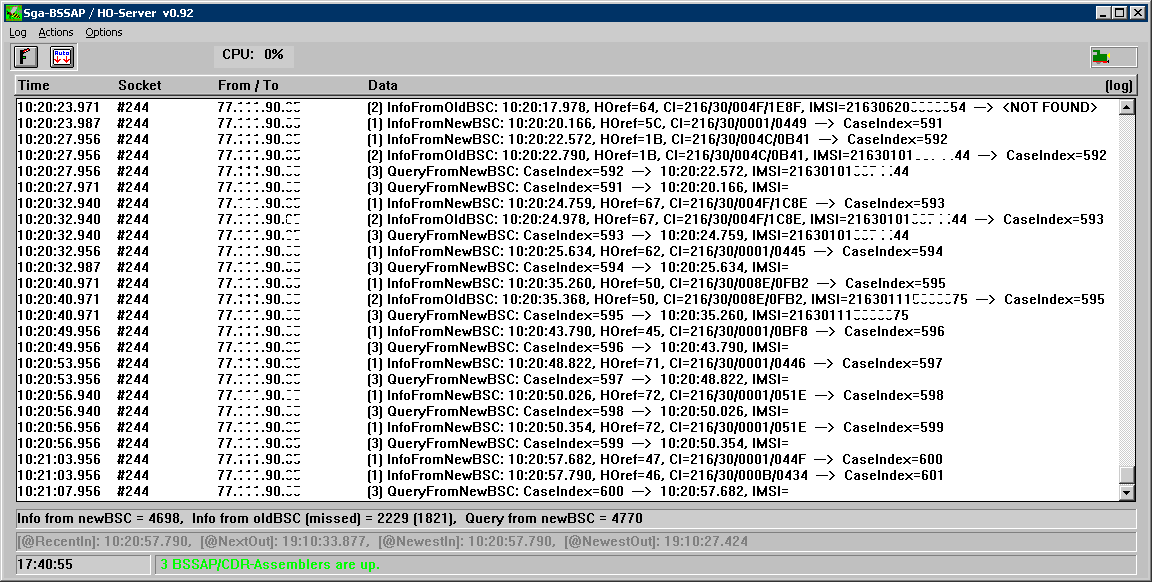

	Show log	(Ctrl-Tab)	Shows the log screen

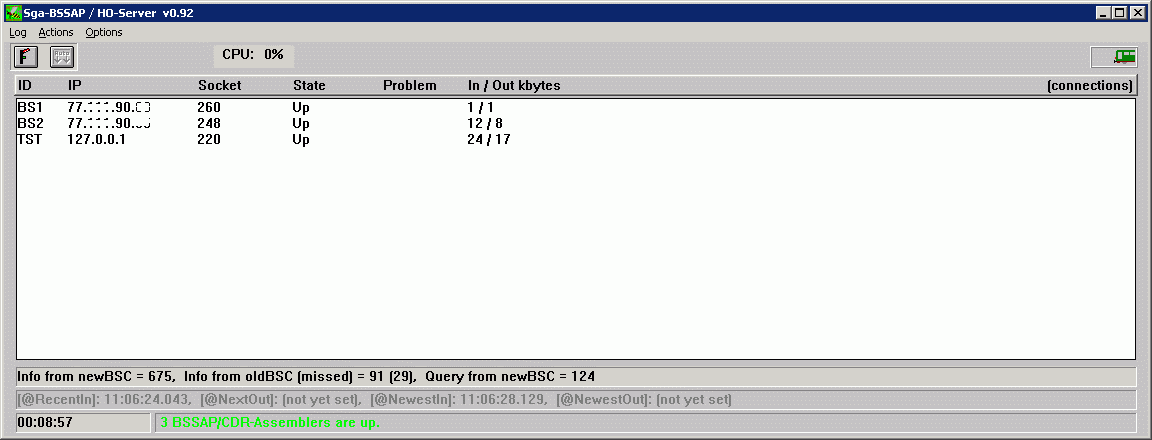

	Show connection status	(Ctrl-Tab)	Shows the status of BSSAP/CDR-Assembler units
	Save settings		Save actual settings into the configuration (`SgaBSSAPCDR.INI`) file

Info from newBSC: number of handover information from the new BSC
Info from oldBSC: number of handover information with IMSI from the old BSC
- missed: cases where there was no previous entry for this handover
Query from newBSC: number of queries for a handover index
@RecentIn: Timestamp of the most recent information
@NextOut: Timestamp of the next record to be forget
@NewestIn: Timestamp of the newest information (can differ from the most recent when the request do not arrive in time order)
@NewestOut: Timestamp of the newest forgotten record
Uptime: time elapsed since module has been started up.
X BSSAP/CDR-Assemblers are up.: status of BSSAP/CDR-Assembler units

Right-click on a BSSAP/CDR-Assembler to access this menu!

	Menuitem	Shortcut(s)	Meaning
	Disconnect this BSSAP/CDR-Assembler from HOServer immediately
	Acknowledge previous problem of this BSSAP/CDR-Assembler :-)		Appearance of a ':-(' sign indicate if there is a problem with a BSSAP/CDR-Assembler unit; this sign can be remove with this option
	Acknowledge all previous problems :-):-):-)		This option will remove all ':-(' signs
	Remove hilite (no selection)		Remove selection from all row of the list

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[Options]/Auto scroll` menuitem!)
[BSSAP/CDR-Assemblers]
	wLocalTCPPort	8069	TCP port where the Handover server waits the incoming connections
	BS1	11.22.33.44	Symbolic name and IP address of BSSAP/CDR-Assembler units
[Advanced]
	wLogDetailLevel	3	(Equals to the listed order; refer to the `[LOG]/Details menuitem!)`
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sLogFilesPath	d:\LogFiles	Path for the LOG files
	sTrapFilesPath	d:\TrapFiles	Path for the trap files
	dwHOTimeOutMS	1500	Time out for handovers; given in msec

v0.92

v0.91

v0.90
