TSP Lab	SgaINCDSorter - The IN sorter module	SgaINCDSorter

The IN related message sorter module
`("SgaINCDSorter")`

Basic Operation

Periodically scans the working directory for Sga-8024.xxx files created by the SgaINPol module.
Loads IN components into a preset size FIFO type buffer
Sorts IN components by their timestamp and writes out the oldest into Sga-8025.xxx files
Causes a small delay defined by the size of the buffer
Loaded components can be saved for providing the continuous CDR generation

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Find text in log window
	Find next matching line	(F3)	Find next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed or Debug)
[Options]
	Go on / Pause	(Ctrl-P, or )	Allow periodic scanning of the working directory for `Sga-8024.xxx` files
	Auto scroll	(ScrollLock, or )	Allow automatic scrolling of the log screen
	Save settings		Save actual settings into the configuration (`SgaINEvD.INI`) file

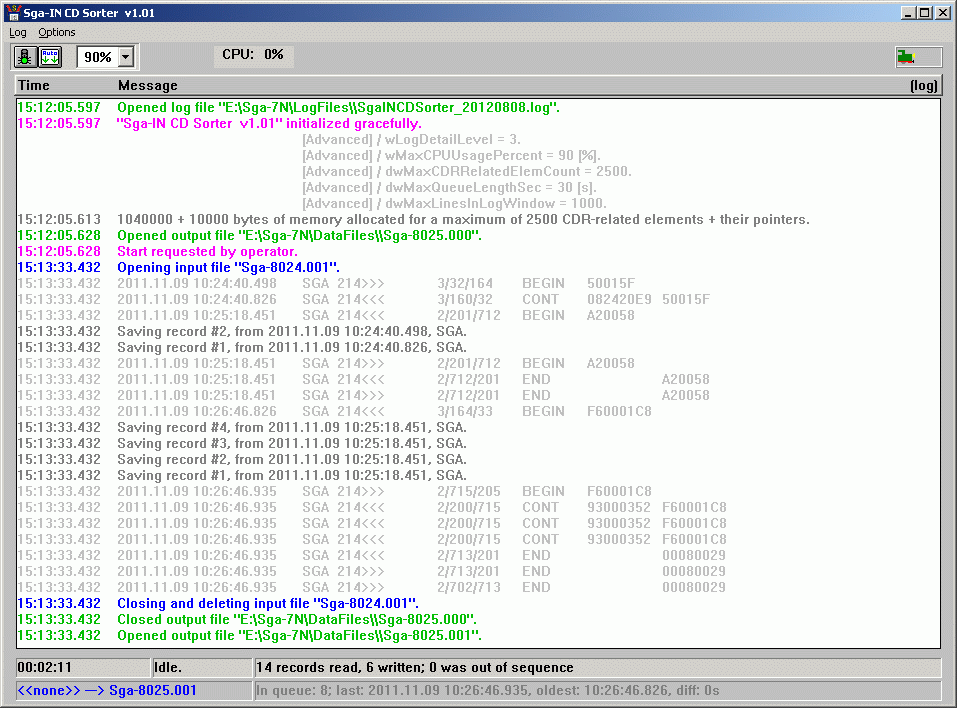

Uptime: time elapsed since module has been started up.
Number of the read and the written records.
Number of records that arrive out-of-queue, i.e., when its timestamp is earlier than the earliest's in queue.
Name of the actual input file.
Number of components in the buffer.
Timestamp of the last and the oldest components.
Time gap between the last and the oldest components.

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[Options]/Auto scroll` menuitem!)
[Advanced]
	dwMaxCDRRelatedElemCount	2500	Size of the sorter buffer
	dwMaxQueueLengthSec	15	Limit of queue length
	wLogDetailLevel	3	(Equals to the listed order; refer to the `[LOG]/Details menuitem!)`
	wMaxCPUUsagePercent	25	Limit of CPU-usage for this module
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sDataPath	d:\DataFiles	Path for the output files (`Sga-8025.xxx`) that contain the sorted components
	sLogFilesPath	d:\LogFiles	Path for the LOG files

v1.01

(n) MSU's with same (ms-resolution) timestamps are sorted with BEGIN first, CONT and unknown next, then END, and ABORT last.
(n) Clear key (NumPad-5) clears highlight (selection) in log window.
(n) Queue length can also have a secondary (temporal) limit.
(n) INI/[Advanced]/dwMaxQueueLengthSec (defaults to 15 seconds)
(n) Temporal difference between first and last elements in queue is shown in status (and gets logged as well).
(n) Counts and logs data that arrive out-of-queue, i.e., when its timestamp is earlier than the earliest's in queue.
(c) Out-of-queue data has yellow color (referring to "warning") in log.
(c) Monitor ID is logged in each line at "Detailed" log level as well.
(c) In lieu of empty Monitor ID or Link ID the "(NULL)" text is shown in log.
