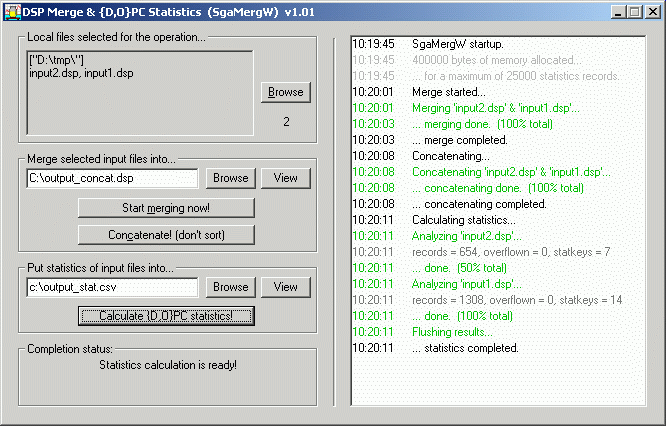

in this field the selected DSP files are indicated
Browse: the DSP files can be selected by browsing the local file system.
DSP files to be merged must be in same directory and they are selectable with a multiple selection.
The number of selected files is also indicated (at the most 99 files are allowed to be merged)
Merge selected input files into…
indicates the path and the name of the target DSP file
Browse: the target DSP file can be chosen by browsing the local file system
View: it can be view selected DSP (if it is existing) file if the Sga7w SS7 decoder is associated with DSP files
Start merging now!: merging can be started with this button
Concatenate! (don't sort): merging DSP files without sorting messages by timestamp
Put statistics of input files into…
The pointcode statistics created about input files are saved into this file.
Format of the output file is *.csv (comma separated values). The cloumns are: (NI)DPC/OPC, Input file, #MSU, #octets
The output file can be defined by full path, but if only the filename is given,
the file will be created into the directory of input files.
Browse: the output file can be chosen by browsing the local file system
View: by pressing this button the created *.csv file will be open by the default application associated with this filetype
(by default MS Excel is this application)
Calculate {D, O}PC statistics!: the statistics about input files will be created
Completion status
indicates the status of merging process
At the right of the user interface it can be seen the log screen of the DSP file merge utility
This file has to be placed in the Windows or Winnt directory! Only that keys are described here can be changed by the user.
The other keys are updated from the main window when Exit button is pressed.
Before changing these keys below the File Merge modul has to be closed.
