TSP Lab	SgaRoamRangeListConsole - Console for the roaming range list	SgaRoamRangeListConsole

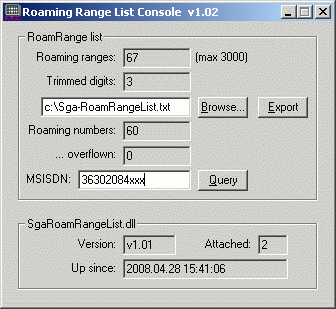

Console for the roaming range list
`("SgaRoamRangeListConsole")`

Features

Roaming ranges:
- (max 3000) : upper limit of stored roaming ranges, defined by SgaRoamRangeList.ini/[Settings]/dwRoamRangeMaxCount
Trimmed digits: from SgaRoamRangeList.ini/[Settings]/byDigitsToBeTrimmed
Browse...: output file can be set where to the export will be made
Export : creates a list of actual roaming ranges
Roaming numbers: amount of actual roaming ranges
...overflown: when there are more roaming ranges than SgaRoamRangeList.ini/[Settings]/dwRoamRangeMaxCount further ranges will be dropped and counted here
MSISDN : with the Query button next to this field it can be decided whether the given MSISDN is a roaming number and in which VLR and when it was last seen

Version : gives version of SgaRoamRangeList.dll
Attached : number of modules which actually use SgaRoamRangeList.dll
Up since : date and time when SgaRoamRangeList.dll was started (first module atteched to)

The export file contains the following data:

Roaming range: Roaming range generated from MSISDN's truncating them by SgaRoamRangeList.ini/[Settings]/byDigitsToBeTrimmed
VLR prefix: prefix name of the VLR where the given roaming range was seen
Last seen: timestamp when an MSISDN was last seen in the given VLR in this roaming range

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
[Advanced]
	sExportFileName	c:\Sga-RoamRangeList.txt	Defines the file where roaming range list will be exported into in text format

v1.02

(n) Provides interface to query an MSISDN whether that one is currently known as a roaming number.

v1.01

(f) INI/[Position]/iLeft and iTop are not saved on exit if module is iconized.

v1.00

Provides a dynamic database of actual roaming ranges, updated by the Roaming Statistics module
Gives information about roaming ranges for the ISUP CDR Generator and the Roaming Statistics modules

Section	Entry	Example	Meaning
[Settings]
	dwRoamRangeMaxCount	3000	Maximum number of roaming ranges. New ranges will be dropped from the dynamic database if this value is exceeded
	byDigitsToBeTrimmed	3	The MSISDN's will be shortened by this amount of digits during the creation of roaming ranges

v1.01

(n) All NT compatible (hopefully).
(n) SgaRoamRangeList.ini, with two entries: INI/[Settings]/dwRoamRangeMaxCount and INI/[Settings]/byDigitsToBeTrimmed.

v1.00
