The SGsAp-to-BSSAP module
`("SgaSGsAP2BSSAP")`

Feature

Provides Paging and LocationUpdate info seen on the SGs interface to the BSSAP system in order to follow TMSI – IMSI assigments

Periodically scans the working directory for Sga-7199.xxx files created by the SgaSGsAP_CDR-Sorter module.
Connects to BSSAP-CDR poller as a monitor unit
Sends Paging and LocationUpdate info from SGsAP messages to the BSSAP system

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Find text in log window
	Find next matching line	(F3)	Find next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed or Debug)
[Options]
	Auto scroll	()	Allow automatic scrolling of the log screen
	Suspend traps for 1 hour		Trap generation is suspended for 1 hour
	Save settings		Save actual settings into the configuration (`SgaSGsAP2BSSAP.INI`) file

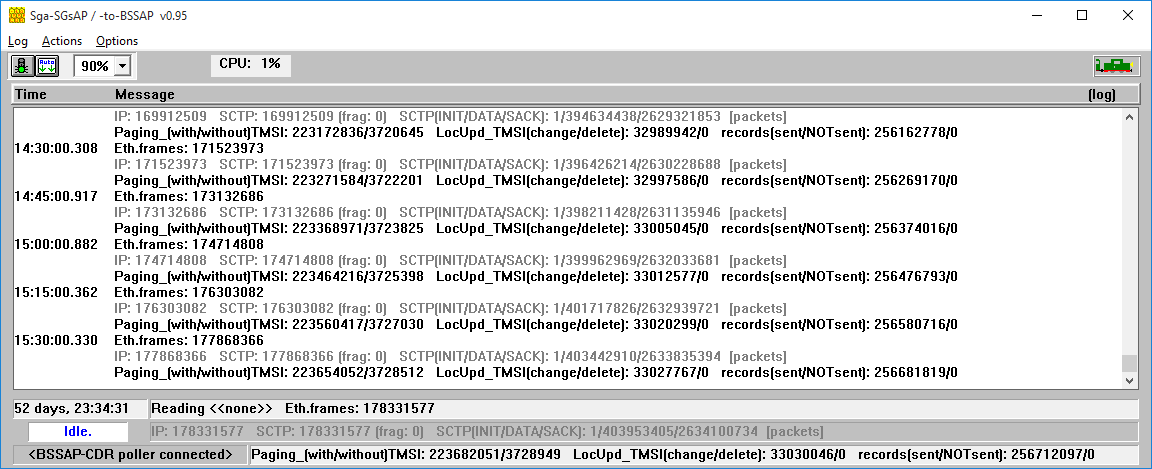

Uptime: Time elapsed since module has been started up.
Reading: Currently opened input file name.
Eth.frames: Number of processed Ethernet frames.
Idle./Loading: Sate of the process
IP: Number of processed IP packets containing SCTP payload
SCTP: Number of SCTP packets containing DATA chunk
frag: Number of fragmented SCTP DATA chunks (first+mid+last)
SCTP(INIT/DATA/SACK): Number of INITiation, DATA and SelectiveACK messages, respectively
BSSAP-CDR Poller connected: The state of the BSSAP-CDR poller connection.
Paging_(with/without)TMSI: Number of Paging events with/without TMSI
LocUpd_TMSI(change/delete): Number of Location Update events for change/delete subscribers' state
records(sent/NOTsent): Number of records sent/NOTsent

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[Options]/Auto scroll` menuitem!)
[BSSAP-CDR poller]
	sRemoteIPAddress	10.110.111.112	IP address of KeyServer machine
	wRemoteTCPport	7016	Port where KeyServer is listening
	wSecondsToWaitBetweenConnectionTrials	5	Defines the waiting interval between connection attempts
	wSecondsToWaitBeforeReconnecting	5	Defines the delay before reconnecting after a disconnection
[Advanced]
	wLogDetailLevel	3	(Equals to the listed order; refer to the `[LOG]/Details menuitem!)`
	wMaxCPUUsagePercent	25	Limit of CPU-usage for this module
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sLogFilesPath	d:\LogFiles	Path for the LOG files
