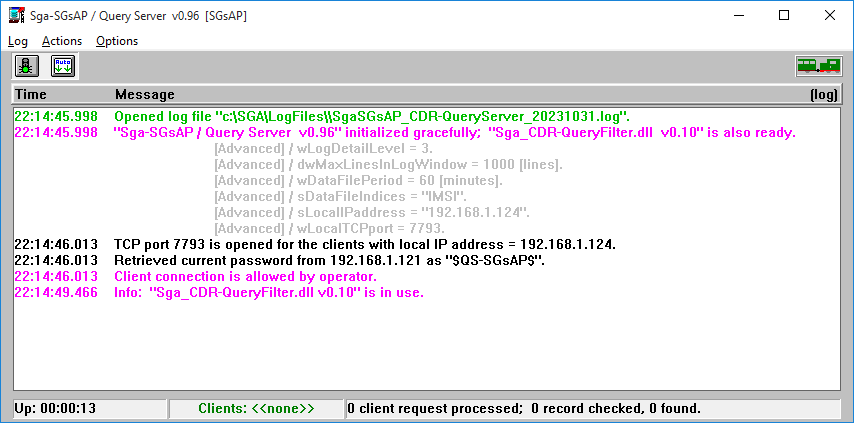

| TSP Lab | SGsAP CDR Query Server | SgaSGsAPCDR_QueryServer |
|---|
| Menu | Menuitem | Shortcut(s) | Meaning |
|---|---|---|---|
| [Log] | |||
| Find line containing... | (Ctrl-F) | Finds text in log window | |
| Find next matching line | (F3) | Finds next occurrence of text in log window | |
| Details | Detail level of logging (Off, Normal, Detailed, or Debug). Note: F12 key sets log detail level to 'Off'. | ||
| [Actions] | |||
| Allow client connection | (Ctrl-A, or   )
| Allow CDR Query clients to connect and query | |
| Flush counters | Writes status line counters into the log | ||
| Flush & reset counters | Writes the counters into the log and zeroes them | ||
| [Options] | |||
| Auto scroll | (ScrollLock, or   )
| Allow automatic scrolling of the log screen | |
| Save settings | Save actual settings into the configuration (SgaSGsAPCDR_QueryServer.ini) file |
| Section | Entry | Example | Meaning | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [Position] | |||||||||||||||||||||||||||||||||||
| iLeft | 140 | Position of the program module on the display screen | |||||||||||||||||||||||||||||||||
| iTop | 72 | Position of the program module on the display screen | |||||||||||||||||||||||||||||||||
| iWidth | 995 | Position of the program module on the display screen | |||||||||||||||||||||||||||||||||
| iHeight | 694 | Position of the program module on the display screen | |||||||||||||||||||||||||||||||||
| [Options] | |||||||||||||||||||||||||||||||||||
| bAutoScroll | True | (Refer to the [Options]/Auto scroll menuitem!) | |||||||||||||||||||||||||||||||||
| [Sga-7N Authorizer] | |||||||||||||||||||||||||||||||||||
| sRemoteIPaddress | 40.30.20.10 | IP address of the SgaAutho module | |||||||||||||||||||||||||||||||||
| sQSuserName | $QS-SGsAP$ | Used as the QS identifier while retrieving Oracle ("client") password from the SgaAutho module | |||||||||||||||||||||||||||||||||
| [Validity Interval] | A validity interval can be set. The server will send only records that are in this interval. | ||||||||||||||||||||||||||||||||||
| StartTimeYear | 2006 | Year of the StartTime of the validity interval | |||||||||||||||||||||||||||||||||
| StartTimeMonth | 1 | Month of the StartTime | |||||||||||||||||||||||||||||||||
| StartTimeDay | 1 | Day of the StartTime | |||||||||||||||||||||||||||||||||
| StartTimeHour | 0 | Hour of the StartTime | |||||||||||||||||||||||||||||||||
| StartTimeMinute | 0 | Minute of the StartTime | |||||||||||||||||||||||||||||||||
| StartTimeSecond | 0 | Second of the StartTime | |||||||||||||||||||||||||||||||||
| bStartTimeDate | 1 | If it is 1 the StartTime set above is applied. | |||||||||||||||||||||||||||||||||
| EndTimeYear | 2010 | Year of the EndTime of the validity interval | |||||||||||||||||||||||||||||||||
| EndTimeMonth | 1 | Month of the EndTime | |||||||||||||||||||||||||||||||||
| EndTimeDay | 1 | Day of the EndTime | |||||||||||||||||||||||||||||||||
| EndTimeHour | 0 | Hour of the EndTime | |||||||||||||||||||||||||||||||||
| EndTimeMinute | 0 | Minute of the EndTime | |||||||||||||||||||||||||||||||||
| EndTimeSecond | 0 | Second of the EndTime | |||||||||||||||||||||||||||||||||
| bEndTimeDate | 1 | If it is 1 the EndTime set above is applied. When it is 0 EndTime will be the actual local time. | |||||||||||||||||||||||||||||||||
| [Advanced] | |||||||||||||||||||||||||||||||||||
| wLogDetailLevel | 3 | (Equals to the listed order; refer to the [LOG]/Details menuitem!)
|
| dwMaxLinesInLogWindow
| 1000
| Number of lines in the log window on screen
|
| sDataPath
| e:\SGsAP-CDR\
| Path for CDR files
|
| wDataFilePeriod
| 15
| Period of CDR files.
It should be the same value as the one set in the CDR assembler's INI
|
| wDataFileIndices
| IMSI
| List of indices where the Query Server would look for existing entry
|
| sLogFilesPath
| d:\LogFiles
| Path for the LOG files
|
| sCaption
| CDR-1
| Alternative caption text for easy distinguishing amongst multiple instances of this module
|
| sLocalIPAddress
| 10.111.0.110
| This IP address is used where the module is listens to incoming
|
| wLocalTCPPort
| 7799
| TCP port for the incoming connections
| |
