TSP Lab	SgaSGsAPCDSorter - The SGsAP sorter module	SgaSGsAPCDSorter

The SGsAP related message sorter module
`("SgaSGsAPCDSorter")`

Basic Operation

Periodically scans the working directory for Sga-7099.xxx files created by the SgaSGsAPCDPoller module.
Loads SGsAP components into a preset size FIFO type buffer
Sorts SGsAP components by their time stamps and writes out the oldest ones into Sga-7199.xxx files
Causes a small delay defined by the size of the buffer
Loaded components can be saved at exit for providing the continuous CDR generation

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Find text in log window
	Find next matching line	(F3)	Find next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed or Debug)
[Options]
	Go on / Pause	(Ctrl-P, or )	Allow periodic scanning of the working directory for `Sga-7099.xxx` files
	Auto scroll		Allow automatic scrolling of the log screen
	Save settings		Save actual settings into the configuration (`SgaSGsAPCDSorter.INI`) file

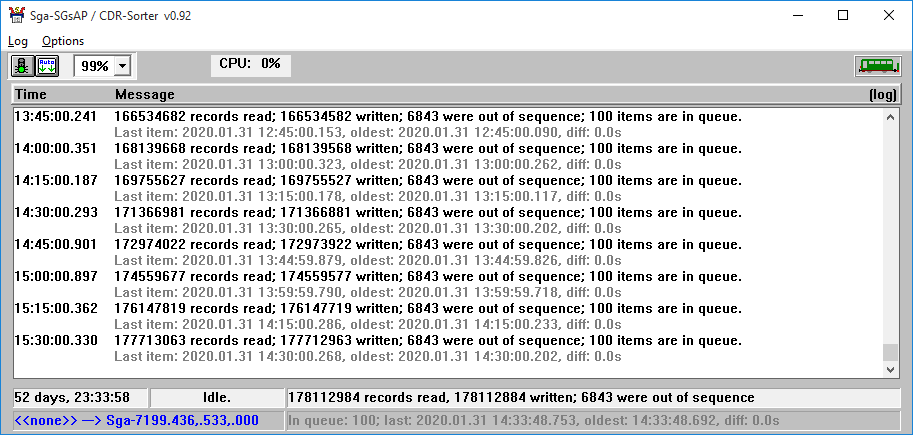

Uptime: Time elapsed since module has been started up.
Idle./Loading: Sate of the process.
N records read, M written: Number of read and written records.
X was out of sequence: Number of records arriving out-of-sequence, i.e., its timestamp is earlier than the earliest in queue.
Sga-7099.000 —> Sga-7199.000: Name of the input and output files currently being written.
In queue: Number of components in the buffer.
last: Timestamp of the latest and the oldest components.
oldest: Timestamp of the latest and the oldest components.
diff: Difference between the last and the oldest message in second.

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[Options]/Auto scroll` menuitem!)
[Advanced]
	dwMaxCDRRelatedElemCount	2500	Size of the sorter buffer
	dwMaxQueueLengthSec	15	Defines the maximum length of the message queue in seconds
	wLogDetailLevel	3	(Equals to the listed order; refer to the `[LOG]/Details menuitem!)`
	wMaxCPUUsagePercent	25	Limit of CPU-usage for this module
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sOutput1Path	d:\DataFiles1	Path for the output files (`Sga-7199.xxx`) that contain sorted components. Optional configuration entry.
	sOutput2Path	d:\DataFiles2	Secondary path for the output files (`Sga-7199.xxx`) that contain unsorted components. Optional configuration entry.
	sOutput3Path	d:\DataFiles3	Secondary path for the output files (`Sga-7199.xxx`) that contain the unsorted components. Optional configuration entry.
	sLogFilesPath	d:\LogFiles	Path for the LOG files
	dwDataFileCutSize	10000000	Maximum size of each output files (given in bytes)

v0.90
