The SGsAP CDR generator module
`("SgaSGsAP_CDR-Assembler")`

Basic Operation

Periodically scans the working directory for Sga-7199.xxx files, created by the SgaSGsAPCDSorter module
Generates CDRs from the SGsAP messages
Uses SgaSGsAPDecoder.dll to decode SGsAP messages to extract CDR related parameters
Optionally provide location information for the Sga-DB (HAR) system
Optional compression of CDR files to save place
Optional encryption of CDR files to avoid unauthorized access

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Find text in log window
	Find next matching line	(F3)	Find next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed or Debug)
[Actions]
	Go on / Pause	(Ctrl-P, or )	Allow periodic scanning of the working directory for `Sga-7199.xxx` files
	Flush CDR and other counters into log		Actual values of the CDR and other counters are written into the log
	Flush & reset CDR and other counters		Actual values of the CDR and other counters cleared after written into the log
[Options]
	Auto scroll	()	Allow automatic scrolling of the log screen
	Save settings		Save actual settings into the configuration (`SgaSGsAP_CDR-Assembler.INI`) file

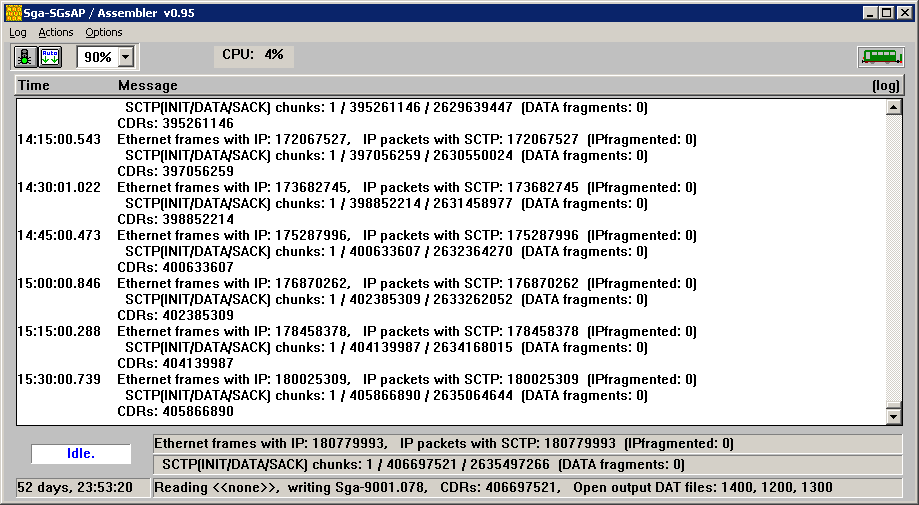

Ethernet frames with IP: Number of processed Ethernet frames containing IP content
IP packets with SCTP: Number of processed IP packets containing SCTP payload
IPfragmented: Number of fragmented IP packets containing SCTP payload
SCTP packets with DATA: Number of SCTP packets containing DATA chunk

SCTP(INIT/DATA/SACK) chunks: Number of INITiation, DATA and SelectiveACK messages, respectively
DATA fragments: Number of fragmented SCTP DATA chunks (first+mid+last)

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[Options]/Auto scroll` menuitem!)
[CDR files]
	wPeriodMinutes	15	Period of creating CDR files (given in minutes)
	bEncrypt	1	Enables encryption of CDR files; 0 means off
	sPathPrimary	e:\SGsAP-CDR\	Path for CDRs
	sPathAlternate	f:\SGsAP-CDR\	Alternative path for CDRs when `sPathPrimary` is inaccessible
	dwOutFilePreallocationSize	700000000	Preallocation size of CDR files, in bytes
	dwOutFilePreallocationSize_IMSIindex	70000000	Preallocation size of IMSI index files, in bytes
[Advanced]
	wLogDetailLevel	3	(Equals to the listed order; refer to the `[LOG]/Details menuitem!)`
	wMaxCPUUsagePercent	25	Limit of CPU-usage for this module
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sOutput9001FilesPath	d:\UTIFiles\	Path for cell data files (defaults to empty string: no collection of cell data)
	sLogFilesPath	d:\LogFiles	Path for the LOG files
