SGA - TACFAC/CEA database
("Sga-TACFACCEAdb")

• Basic operation
• User interface
• Configuration
• Version history

• Processes incoming location information data from Sga-9009.NNN files
• Builds a database of TACFAC values (part of the International Mobile Equipment Identity (IMEISV)) and the used strongest encryption algorithm (A5/1..3) in memory
• Generates alarms when a mobile equipment uses a weaker encryption algorithm then it used last time. Alarms contain timestamp, IMEISV, IMSI, CellId and the currently used A5 algorithm
• Provides a cell based encryption algorithm list with the weakest and the strongest encryption algorithm
• Uses cell name list to append names to cell id's
• Connects to the IMSI-MSISDN database to get subscriber's identifiers
• Provides a TACFAC black list to exclude frequently used IMEISV values

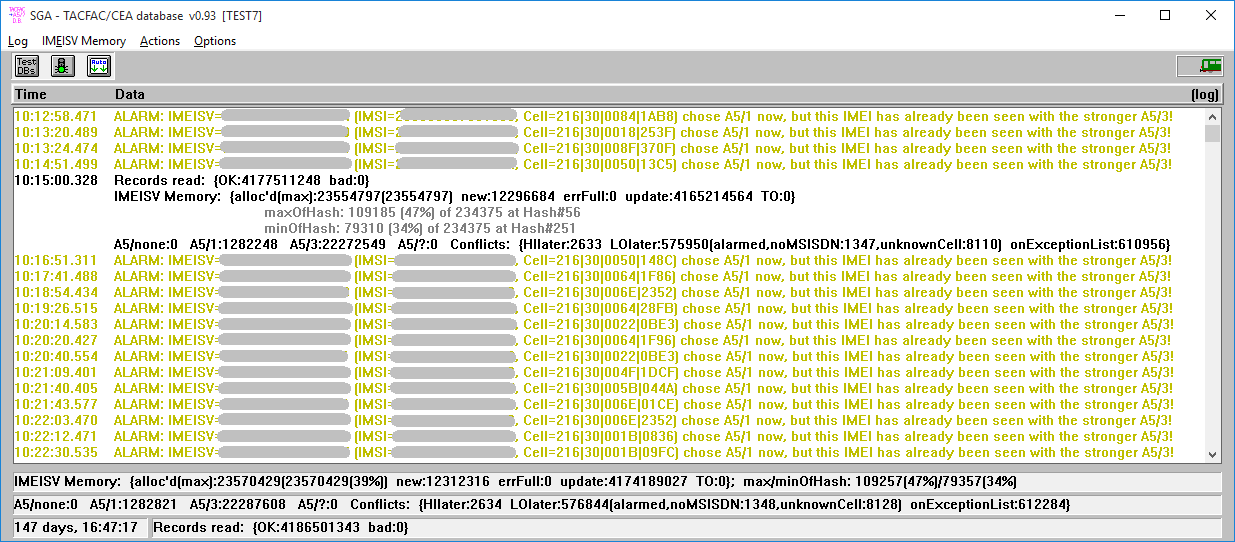

Main screen

The main menu

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Finds text in log window
	Find next matching line	(F3)	Finds next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed, or Debug)
[IMEISV Memory]
	Dump contents (max. 1000)		Dump content of IMEISV Memory into log
	Drop old contents		Delete entries of IMEISV Memory which are older than INI/[IMEISV Memory]/dwTimeOutSec
	Backup all entries		Writes all entries of IMESV Memory into a binary backup file (INI/[IMEISV Memory]/sBackupFilesPath)
[Actions]
	Re-enter password to access IMSI-MSISDN/DB (IMSI-indexed)		The password used during the authentication can be re-entered
	Test above database access	()	Tests the accessibility of database
	Flush counters		Writes status line counters into the log
	Flush & reset counters		Writes the counters into the log and zeroes them
[Options]
	Auto scroll	()	Allow automatic scrolling of the log screen
	Do *not* start processing next input file	(, Ctrl+P)	Disbale processing of the next input file
	Save settings		Save settings into INI file

The bottom status-line

• IMEISV Memory: Current status of IMEISV Memory:
  • alloc'd (max): Number of currently used / maximum used entries (saturation of IMESV memory in percentages)
  • new: Number of usage of entries allocated earlier
  • errFull: Number of failed allocation caused by shortage of allocatable space
  • update: Number of updated entries
  • TO: Number of foregotten entries due to time out
  • max/minofHash: Maximum and minimum number of hashes and their ratio
• A5/none: Number of entries without any A5 algorithm
• A5/1: Number of entries with A5/1 algorithm
• A5/3: Number of entries with A5/3 algorithm
• A5/?: Number of entries with other algorithm
• Conflicts
  • HIlater: Number of IMEISV's with a stronger algorithm than it has seen earlier with
  • LOlater: Number of IMEISV's with a weaker algorithm than it has seen earlier with
    • noMSISDN: Number of IMEISV's that there is no MSISDN in the IMSI-MSISDN database for
    • unknownCell: Number of IMEISV's that there is no cell name in the cell name list
  • onExceptionlist: Number of IMEISV's excluded from alarming
• Uptime: Time elapsed since module has been started up;
  • hovering over: Start date and time
  • left-click: Kernel and user time
• Records read:
  • OK: Number of correct records processed from input files
  • bad: Number of bad records processed from input files

Section	Entry	Example	Meaning
[Position]
	iLeft	132	The initial horizontal position of the Main screen, in pixel
	iTop	132	The initial vertical position of the Main screen, in pixel
	iWidth	770	The initial width of the Main screen, in pixel
	iHeight	558	The initial height of the Main screen, in pixel
[Options]
	bAutoscroll	True	If True, log list automatically scrolls to the last line, when a new item inserted
[IMEISV Memory]
	dwMaxCount	6000000	Maximum number of entries in IMEISV Memory
	dwTimeOutSec	31557600	Time out in seconds of IMEISV Memory entry purging
	sBackupFilesPath	d:\Sga-TACFACCEAdb	Path for IMEISV memory backups
[Alarm Files]
	sPath	D:\TACFACCEAAlarmFiles	Path of alarm files
	dwNextFileID	1969	Identification number of the next alarm file. Default value is 1. Updated automatically by application
	dwFlushPeriodSec	900	Time period of alarm file closing
[IMSI-MSISDN database / IMSI-index]
	sIPaddress	10.0.0.111	Defines the IP address of the IMSI-indexed part of the "IMSISDN-DB"
	wTCPport	9000	TCP port of the IMSI-indexed part of the "IMSISDN-DB"
	sPassword	password	Password used during the authentication. When it is not set then a pop-up window will appear to enter it when the module has been started
[Advanced]
	wLogDetailLevel	3	(Equals to the listed order; refer to the [Log]/Details menu item!)
	dwMaxLinesInLogWindow	500	Number of lines in the log window on screen
	s9009FilesPath	d:\DataFiles_CEAinfo	Path of directory of intermediate data files (Sga-9009.xxx)
	sCellNamesFilesPath	D:\CellNamesFilesFolder\CellNames.csv	Path and filename of CellNames.csv file
	sLogFilesPath	D:\SGA\Sga-UTI\Log	Path of directory of log files
[TACFAC Exception List]	reloaded on-the-fly, checked first
	00000000	appears too frequently	Defines a TACFAC value excluded from alarming. Format is "TACFAC = free text"
[TACFAC/SV Exception List]	reloaded on-the-fly, checked second
	123467/00	appears too frequently	Defines a TACFAC value with software version excluded from alarming. Format is "TACFAC/SV = free text"
