The GPRS File Reader module
`("GyprsReadFiles")`

Table of Contents

Basic Operation
User interface
- The bottom status-line
Configuration

Basic Operation

Reads the content of DAT files being written by the GPRSMonitor software
Gathers cell info from GPRS messages
Connects to the Tapper Poller as Tapper and sends gathered cell info to it

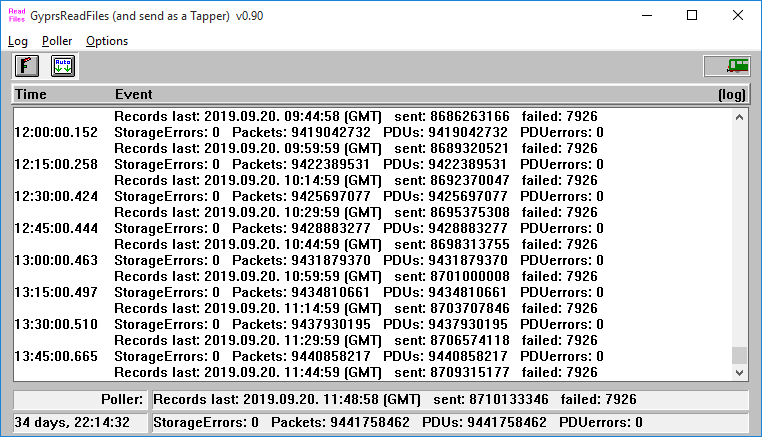

User Interface

The main menu

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Find text in log window
	Find next matching line	(F3)	Find next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed or Debug)
[Poller]
	Allow auto-connect	(Ctrl-A or )	Allows/Prohibits automatic connecting to the `Tapper-Poller` module
	Disconnect now!	(Ctrl-D)	Disconnects from the `Tapper-Poller` module immediately
[Options]
	Auto scroll	()	Allow automatic scrolling of the log screen
	Flush status line counters now!		The status line counters can be flushed
	Flush and zero status line counters now!		The status line counters can be flushed and cleared
	Save settings		Save actual settings into the configuration (`GyprsReadFiles.INI`) file

The bottom status-line

Poller: The status of the Tapper-Poller connection:
- red: there is no active connection
- black: the connection is established

Record last: Date and time of the last read record in GMT
sent: Number of records sent
failed: Number of records that can not be sent

Uptime: Time elapsed since module has been started up
StorageErrors: Name of issues when error occurred during storage reading
Packets: Number of processed packets
PDUs: Number of processed PDUs
PDUErrors: Number of erroneous PDUs

Configuration (`GyprsReadFiles.ini`) file settings

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[Options]/Auto scroll` menuitem!)
[Storage]
	StorageBufferPathN	d:\GPRS-Monitor-00.dat	Storage files defined in `GPRSMonitor.ini`
[Poller]
	sIPaddress	10.0.0.111	Defines the IP address of the CellInfo Collector unit
	wTCPport	9000	TCP port of the Tapper-Poller module
[Advanced]
	wLogDetailLevel	3	(Equals to the listed order; refer to the `[LOG]/Details menuitem!)`
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sLogFilesPath	d:\LogFiles	Path for the LOG files
