TSP Lab	Sga-GPRS MS Capability Assembler	Sga8NCapab

The Sga-GPRS MS Capability Assembler module
`("Sga8NCapab")`

Basic operation

Scans the working directory periodically for input files (Sga-8004.xxx) to be processed
Collects MS capability related parameters into TAC-FAC and LAC-RAC-CI records
Records can be written into csv files

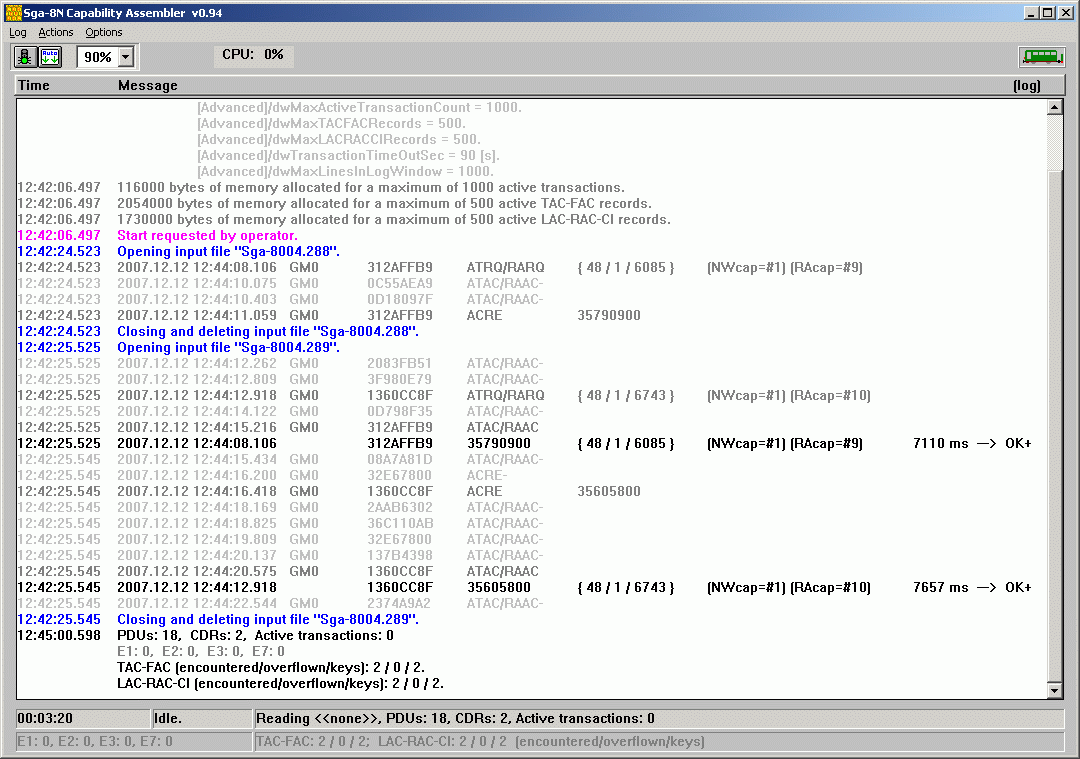

User interface

The main menu

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Find text in log window
	Find next matching line	(F3)	Find next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed or Debug)
[Actions]
	Go on / Pause	(Ctrl-P, or )	Allow periodic scanning of the working directory for `Sga-8004.xxx` files
	Flush & reset TAC-FAC statistics		Delete TAC-FAC statistics form memory after writing into a csv file
	Flush & reset LAC-RAC-CI statistics		Delete LAC-RAC-CI statistics form memory after writing into a csv file
	Flush CDR and error counters into log		Counters from status bar will be written into log
	Flush & reset CDR and error counters		Actual values of the CDR and error counters cleared after written into the log
[Options]
	Auto scroll	(ScrollLock, or )	Allow automatic scrolling of the log screen
	Save settings		Save actual settings into the configuration (`SgaWMCapab.ini`) file

The bottom status-line

Uptime: time elapsed since module has been started up.
Reading: name of the input file being read
PDU: number of MS capability related PDU's counted since start
CDR: number of closed transaction (complete or timed-out)
Active transactions: number of actually opened transactions
Error counters:
- E1: number of transactions without any REQUEST message (yellow line in the log)
- E2: increased when a new REQUEST arrives and the number of active transactions is reached the Sga8NCapap.ini/[Advanced]/dwMaxActiveTransactionCount value (Red colored "Too many active transactions. An ATRQ/RARQ will be ignored now." in the log.)
- E3: TLLI reuse counter (yellow line in the log)
- E7: number of timed-out transactions (yellow line in the log)
TAC-FAC:
- encountered: number of occurence of TAC-FAC related transactions
- overflown: if the number of records in the actual table reaches the Sga8NCapab.ini/[Advanced]/dwMaxTACFACRecords the new records will be dropped and counted here
- keys: current number of records in the TAC-FAC table
LAC-RAC-CI:
- encountered: number of occurence of LAC-RAC-CI related transactions
- overflown: when the number of records in the actual table reaches the Sga8NCapab.ini/[Advanced]/dwMaxLACRACCIRecords the new records will be dropped and counted here
- keys: current number of records in the LAC-RAC-CI table

TAC-FAC based records

The table contains one row for each TAC-FAC combination
The "v" coloumn indicates the version information of a combination for a given TAC-FAC
The "Count" coloumn shows count of a given occurence of a capability combination for the given TAC-FAC
Capablility parameters are listed including "Network Capability" parameters and occurence of "Access Technology Type" and the "Radio Access Capability" parameters
"Radio Access Capability" parameters are indicated three times; once for "GSM P" and once for "GSM E" and once for "GSM 1800 ATT"
If a parameter does not occur the related cell will be empty

Cell related records (LAC-RAC-CI records)

In this table there are the cell identifiers and occurence of parameter values listed in Sga8NCapab.ini/[Required LACRACCI Capabilities] section for the given cells
Description of the parameter definition:
- Every parameter has a key with a name for this parameter. The name can be an at most 64 character long arbitrary string
- For the proper operation every key has to be given exactly once in a predefined order (For the full list see [Required LACRACCI Capabilities] section of the sample Sga8NCapab.ini!)
- Setting the values for a key:
  - exact value or an interval (the interval can be infinite)
  - the value or the interval must be possible values of the given parameter
  - improper value(s) or interval cause the given key will not be shown in the table
- Examples:
  1. for an exact value and an interval ("Nw/SS screening ind.=0" and "Nw/SS screening ind. =1" and "Nw/SS screening ind.=2" and "Nw/SS screening ind.=3" will be counted)
    - Nw/SS screening ind.=0,1..3
  2. for exact values (number of occurence of "GSM P=0" and "GSM E=1" will be shown in the table)
    - GSM P=0
    - GSM E=1
  3. for infinit interval (same as the "1..31" definition, counts of parameter from "GSM P/Ext. DTM GPRS class=1" to "GSM P/Ext. DTM GPRS class=31" will be indicated)
    - GSM P/Ext. DTM GPRS class=1..

Configuration (`Sga8NCapab.ini`) file settings

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[OPTIONS]/Auto scroll` menuitem!)
[Advanced]
	wLogDetailLevel	3	(Equals to the listed order; refer to the `[LOG]/Details menuitem!)`
	wMaxCPUUsagePercent	25	Limit of CPU-usage for this module
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	dwTransactionTimeOutSec	60	Time-out for transasctions
	dwMaxActiveTransactionCount	1000	Maximum number of currently opened transactions
	dwTACFACStatMaxRecordCount	300	Maximum number of TAC-FAC records
	dwTACFACStatFlushPeriod	900	Flush period of TAC-FAC statistics
	dwTACFACStatFlushDelay	60	Written out of TAC-FAC statistics can be delayed by this value
	sTACFACStatPath	d:\StatFiles	Path for TAC-FAC statistics files
	dwLACRACCIStatMaxRecordCount	1500	Maximum number of LAC-RAC-CI records
	dwLACRACCIStatFlushPeriod	30	Flush period of LAC-RAC-CI statistics
	dwLACRACCIStatFlushDelay	30	Written out of LAC-RAC-CI statistics can be delayed by this value
	sLACRACCIStatPath	d:\StatFiles	Path for LAC-RAC-CI statistics files
	sLogFilesPath	d:\LogFiles	Path for the LOG files
[Required LACRACCI Capabilities]
	Nw/GEA/1	0..1	The program counts the occurence of the given value of this parameter "Nw/GEA/1=0" and "Nw/GEA/1=1" will be counted and indicated

Version history

v0.95

(n) Automatic periodic saving of TAC-FAC and LAC-RAC-CI statistics, formatted for PMS input.
(n) Statistics records are grouped for the flushing period during their collection and in the output files as well.
(n) INI/[Advanced]/dwTACFACStatFlushPeriod, dwTACFACStatFlushDelay, sTACFACStatPath
(n) INI/[Advanced]/dwLACRACCIStatFlushPeriod, dwLACRACCIStatFlushDelay, sLACRACCIStatPath
(n) Manual saving of TAC-FAC and/or LAC-RAC-CI statistics are also available if INI/[Advanced]/dwTACFACStatFlushPeriod and/or dwLACRACCIStatFlushPeriod are set to zero.
(c) Actions/"Flush TAC-FAC records", "Reset TAC-FAC records", "Flush LAC-RAC-CI records" and "Reset LAC-RAC-CI records" menu items are no longer available.
(c) Actions/"Flush & reset TAC-FAC records" menu item is renamed as "Flush & reset TAC-FAC statistics"; it is available only if INI/[Advanced]/dwTACFACStatFlushPeriod is set to zero.
(c) Actions/"Flush & reset LAC-RAC-CI records" menu item is renamed as "Flush & reset LAC-RAC-CI statistics"; it is available only if INI/[Advanced]/dwLACRACCIStatFlushPeriod is set to zero.
(c) INI/[Advanced]/dwMaxTACFACRecords is renamed as dwTACFACStatMaxRecordCount.
(c) INI/[Advanced]/dwMaxLACRACCIRecords is renamed as dwLACRACCIStatMaxRecordCount.
(c) Input files are expected and read from the working directory.
(c) INI/[Advanced]/sTACFACSaveFileAs, sLACRACCISaveFileAs, and sInput8004FilesPath are no longer used.
(c) Transactions are logged in "Detailed" and "Debug" log level (used to be in "Normal" as well).
(c) Heading of "Version" field of TAC-FAC statistics is shortened for "v" (for compatibility with BSSAP statistics).
