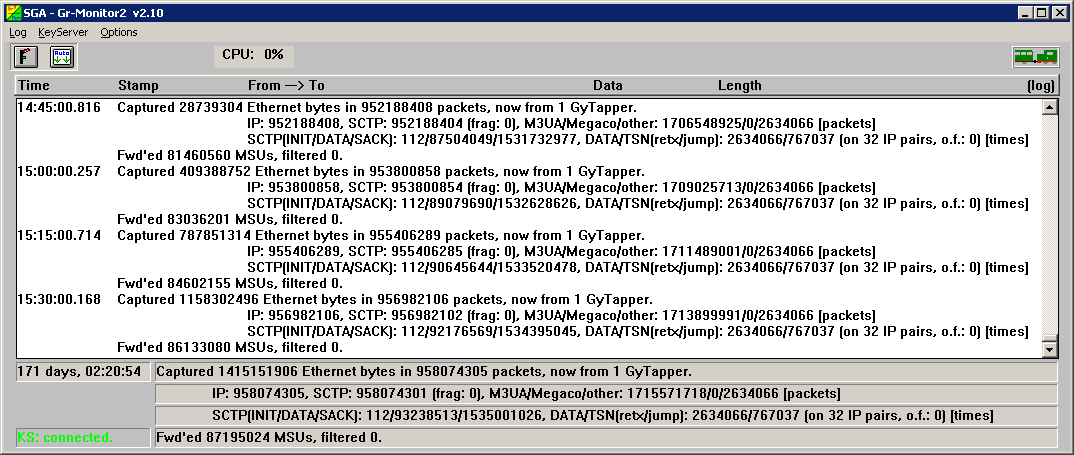

| TSP Lab | Sga_GrMon2 - The 'Gr-over-IP' Monitor | Sga_GrMon2 |
|---|
| Menu | Menu item | Shortcut(s) | Meaning |
|---|---|---|---|
| [Log] | |||
| Find line containing... | (Ctrl-F) | Finds text in log window | |
| Find next matching line | (F3) | Finds next occurrence of text in log window | |
| Details | Detail level of logging (Off, Normal, Detailed, or Debug) | ||
| Flush status-line counters now! | Writes status counters into the log These counters are flushed automatically every fifteen minutes. | ||
| Flush & reset status-line counters now! | Clears status counters after writing them into the log | ||
| [KeyServer] | |||
| Allow auto-connect | (Ctrl-A, or   )
| Permits connection to KeyServer | |
| Reload forwarding filters | Reloads IP address list from Sga_GrMon2.ini/[Filters] section to filter captured MSU's | ||
| Disconnect now! | Breaks off KeyServer connection | ||
| [Options] | |||
| Auto scroll | (ScrollLock, or   )
| Allows automatic scrolling of the log screen | |
| Save settings | Saves actual settings into the Sga_GrMon2.ini file |
| Section | Entry | Example | Meaning |
|---|---|---|---|
| [Position] | |||
| iLeft | 140 | Position of the program module on the display screen | |
| iTop | 72 | Position of the program module on the display screen | |
| iWidth | 995 | Position of the program module on the display screen | |
| iHeight | 694 | Position of the program module on the display screen | |
| [Options] | |||
| bAutoScroll | True | (Refers to the [Options]/Auto scroll menu item!) | |
| [GyTapper] | |||
| wLocalPort | 7777 | TCP port wher GyTapper can connect to | |
| 10.117.144.111 | GyTapper machine | IP address and a name of allowed machines to connect (many IP addresses can be listed in this section) | |
| [KeyServer] | |||
| bAllowAutoConnect | False | (Refers to the [KeyServer]/Allow auto-connect menu item!) | |
| sIPAddress | 127.0.0.2 | IP address of KeyServer | |
| wTCPPort | 7002 | Port on which KeyServer is listening to Gr (either this or the so-called "NI") Monitor | |
| dwForwardMSUMaxSize | 300 | MSU's consisting of (equal to or) fewer octets will only be forwarded to the KeyServer | |
| [Filters] | |||
| sAllowIPAddress#{0..31} | 172.28.248.1 | Messages having their Source or Destination IP address on this list will only be forwarded to the KeyServer | |
| [Advanced] | |||
| wLogDetailLevel | 3 | (Equals to the listed order; refers to the [Log]/Details menu item!) | |
| dwMaxLinesInLogWindow | 1000 | Number of lines in the log window on screen | |
| sLogFilesPath | d:\GPRS\Logfiles | Path for the LOG files |
