| TSP Lab | Sga-HLRQuery2 - The HLR Query module | Sga-HLRQuery2 |
|---|
| Menu | Menuitem | Shortcut(s) | Meaning |
|---|---|---|---|
| [Log] | |||
| Find line containing... | (Ctrl-F) | Finds text in log window | |
| Find next matching line | (F3) | Finds next occurrence of text in log window | |
| Details | Detail level of logging (Off, Normal, Detailed, or Debug) | ||
| [Client connections] | |||
| Disconnect *all* active ones | Shutting down of all active connections | ||
| Zero counters of *all* connections | Request and answer counters of connections will be cleared (on the Connections window) | ||
| [Options] | |||
| Auto scroll | (ScrollLock, or   )
| Allows automatic scrolling of the log screen | |

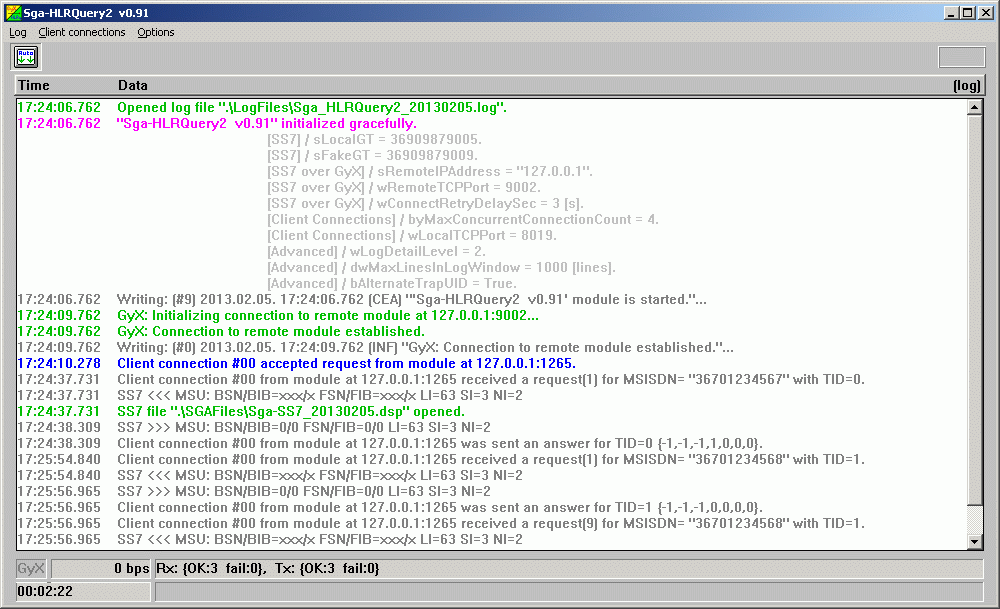

| Show log | (Ctrl-Tab) | Show the log screen | |

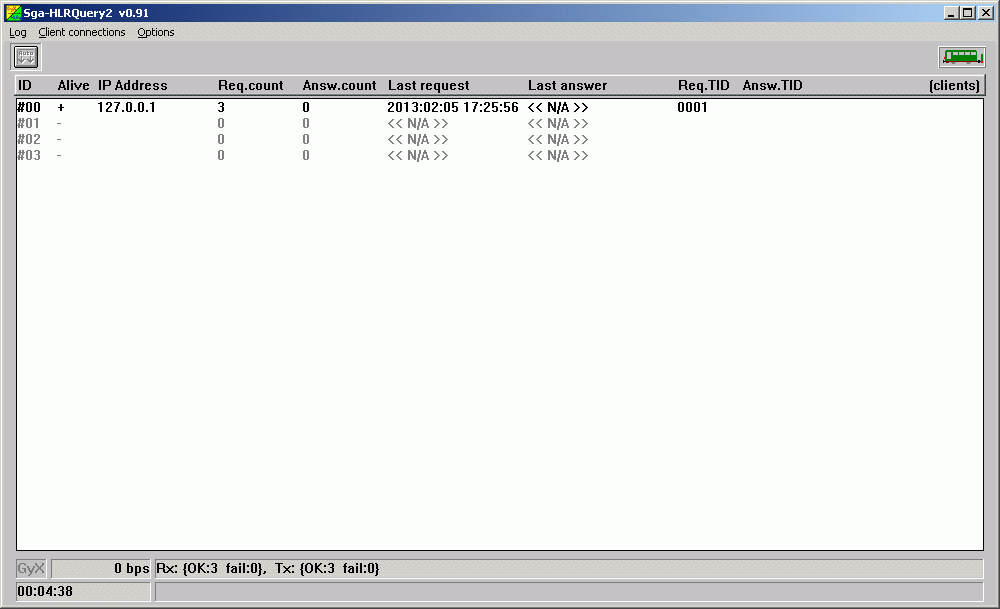

| Show connections | (Ctrl-Tab) | Show the connection screen | |
| Save settings | Saves actual settings into the configuration (Sga_HLRQuery2.ini) file |
| Menuitem | Shortcut(s) | Meaning | |
|---|---|---|---|
| Disconnect this connection | Disconnects selected client connection | ||
| Zero counters of this connection | Zeros Request and Answer counters for this connection | ||
| Send a test MSU for this connection | (Not available in this version) |
Configuration (INI) file settings
| Section | Entry | Example | Meaning |
|---|---|---|---|
| [Position] | |||
| iLeft | 140 | Position of the program module on the display screen | |
| iTop | 72 | Position of the program module on the display screen | |
| iWidth | 995 | Position of the program module on the display screen | |
| iHeight | 694 | Position of the program module on the display screen | |
| [Options] | |||
| bAutoScroll | True | (Refer to the [Options]/Auto scroll menu item!) | |
| [SS7] | |||
| sLocalGT | 36509489931F | The SS7 Global Title of the module (ClgPA/GT in this module initiated BEGIN messages) | |
| sFakeGT | 36509489931F | This value will be used as the originating SC-address in SRI4SM and ForwardSM BEGIN messages (sm-rp-OA) | |
| [SS7 over GyX] | |||
| sRemoteIPAddress | 127.0.0.3 | IP address of GyX_SCTP module | |
| wRemoteTCPPort | 9068 | TCP port of GyX_SCTP | |
| wConnectRetryDelaySec | 3 | Period of attempts to reconnect | |
| [Client Connections] | |||
| wMaxConcurrentConnectionCount | 25 | Maximum number of connections made by remote modules | |
| wLocalTCPPort | 3000 | Port number, where the remote modules can connect | |
| 127.0.0.1 | Allowed | Client with this IP address can connect to the Sga-HLRQuery2 module This section may contain more IP address entries as a white list; those that are not listed will get barred (refused) silently, i.e., w/o trap, but still logged. | |
| [Voice Mail MSISDN] | |||
| 36709090999F | Voice mail | MSISDN of VM service used to decide whether a "call forwarding" is to voice mail or not. Note: the text after the equal sign is mandatory. | |
| [Advanced] | |||
| wLogDetailLevel | 3 | (Equals to the listed order; refer to the [Log]/Details menu item!) | |
| dwMaxLinesInLogWindow | 1000 | Number of lines in the log window on screen | |
| sLogFilesPath | d:\LogFiles | Path for the LOG files | |
| sTrapFilesPath | d:\TrapFiles | Path for the SNMP Trap files to be sent | |
| bAlternateTrapUID | False | Allows using fixed UIDs in SNMP traps (See SNMP trap list below for details) | |
| sSS7FilesPath | 100 | If this entry has a valid path then the application saves sent and received SS7 messages into a special message file (*.dsp) which can be viewed with "Sga7w" protocol decoder. This option is useful during the installing/testing process, in normal operation is not needed. To turn off this option the path should be deleted (set "sSS7FilesPath="). |
| UID | Type | Text | Remarks | To Do |
|---|---|---|---|---|
| If bAlternateTrapUID is set to TRUE | ||||
| 9 | CEA | 'Sga-HLRQuery2 v0.91' module is started. | Send a welcome message; indication of module start-up | |
| 9 | CRI | 'Sga-HLRQuery2 v0.91' module has been shut down by operator. | Send a farewell warning message; indication of module shut-down | Start the 'Sga-HLRQuery2 v0.91' module |
| 90 | CEA | GyX: Connection to remote module established. | ||
| 90 | CRI | GyX: Connection to remote module is lost. | Check the state of GyX module. | |
| 92 | ERR/CEA | TCP connection #...: Received ... bytes of illegible request - dropping connection. | Illegal request has been received | Check if the remote module works properly or the TCP connection is reliable. Possibly an illegal connection was made up. |
| 92 | ERR/CEA | TCP connection #...: Received request with bad MagicCode - dropping connection. | Illegal request has been received | Check if the remote module works properly or the TCP connection is reliable. Possibly an illegal connection was made up. |
| 92 | ERR/CEA | TCP connection #...: Received ... bytes of illegible request - dropping connection. | Illegal request has been received | Check if the remote module works properly or the TCP connection is reliable. Possibly an illegal connection was made up. |
| 92 | ERR/CEA | TCP connection #...: Received request with bad MagicCode - dropping connection. | Illegal request has been received | Check if the remote module works properly or the TCP connection is reliable. Possibly an illegal connection was made up. |
| 94 | WAR | Received an unexpected MSU, or its format is unknown. | Badly formatted MSU or the of the arrived MSU is not recognized | Check if the MSU traffic directed to this device is addressed and formatted properly |
| 95 | CRI | No more Client connections are available. | No CEA is related More than INI/[Client connections]/wMaxConcurrentConnectionCount connection try to be established | Increase value of that configuration entry |
| If bAlternateTrapUID is set to FALSE | ||||
| 0 | INF | 'Sga-HLRQuery2 v0.91' module is started. | Send a welcome message; indication of module start-up | |
| 0 | WAR | 'Sga-HLRQuery2 v0.91' module has been shut down by operator. | Send a farewell warning message; indication of module shut-down | Start the 'Sga-HLRQuery2 v0.91' module |
| ++N | INF | GyX: Connection to remote module established. | When GyX connection is up first | |
| ++N | CRI | GyX: Connection to remote module is lost. | Check the state of GyX module. | |
| N | CEA | GyX: Connection to remote module established. | When GyX connection is up after a disconnection | |
| ++N | CRI | No more TCP connections are available. | All available connections have already been in use; a new one has just been refused | Check and increase value of INI/[RemoteRequest]/wMaxConcurrentConnectionCount entry |
| ++N | ERR | TCP connection #...: Received ... bytes of illegible request - dropping connection. | Illegal request has been received | Check if the remote module works properly or the TCP connection is reliable. Possibly an illegal connection was made up. |
| ++N | WAR | TCP connection #...: Answer (for [OPERATION_CODE] timed-out. | TCAP dialog with MAP operation has not finished within the time-out interval (INI/[SS7]/dwRequestValiditySec) | Check parameters of the message |
