AITIA International, Inc.	SgaFileCaptureServer - File Capture Server	SgaFileCaptureServer

Query Server for Remote Capture clients
`("SgaFileCaptureServer")`

Features

Serves Remote Capture client requets
Reads "SGA" file storages, created by Message Store
One module can handle both types of storages:
- 'Storage#1' containing raw data (with lowercase first letter of link ID) directly received by Message Store module from capturing sources
- 'Storage#2' containing assembled messages (with uppercase first letter of link ID) generated by lower layer reassembler modules (e.g.: UDP Protocol Filter, TCP Reassembler module).
Uses authentication to ensure that only clients with proper right can start a query
Requires SgaFileCaptureFilter.dll providing Remote Capture option evaluation
Cooperates with SgaFileQueryPwd.dll for authentication information
Uses zlib1.dll to decompress SGA files

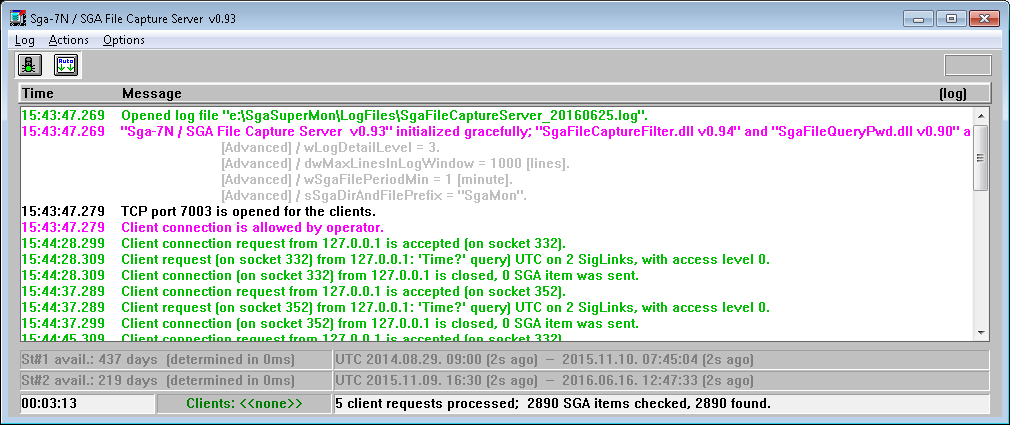

Logs connections, queries and file operations

Menu	Menuitem	Shortcut(s)/Button	Meaning
[Log]
	Details		Detail level of logging (Off, Normal, Detailed, or Debug)
	Find line containing...	(Ctrl+F)	Finds text in log window
	Find next matching line	(F3)	Finds next occurrence of text in log window
	Auto scroll	( )	Scrolls automatically the log window
[Actions]
	Allow client connection	(Ctrl+A / )	Enable/Disable client connections
	Flush counters		Write status line counters into log file
	Flush & reset counters		Write status line counters into log file, and then reset to zero
	Save settings		Save actual settings to configuration file

Storage#1 and Storage#2 availabilities:
- Shows availability information about Storage#1 (St#1), as well as, Storage#2 (St#2); checked in every 10 seconds
- available time interval in days
- start and end date and time (in UTC)
Uptime: Time elapsed since module has been started up;
- hovering over: Start date and time
- left-click: Kernel and user time
- right-click: Put a line into the log with the used DLL and its version
Clients connected: Number of connected clients
Number of processed client requests: Number of processed Remote Capture requests
SGA items checked/found: Number of checked and found message items

Section	Entry	Example	Meaning
[Position]
	iLeft	9	Position of the program module on the display screen
	iTop	9	Position of the program module on the display screen
	iWidth	1010	Position of the program module on the display screen
	iHeight	750	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the [Options]/Auto scroll menu item!)
[Advanced]
	wLogDetailLevel	2	Detail level of logging (Off, Normal, Detailed, or Debug)
	dwMaxLinesInLogWindow	1000	Maximum number of lines in log window.
	wSgaFilePeriodMin	15	Resolution of the stored "SGA" files (in minute)
	sSgaFilesPath_LowerCaseSiglinks	d:\Storage#1	Path for the raw messages directly received by Message Store module from any capturing sources. Note: In Storage#1 first letter of link ID should be lowercase.
	sSgaFilesPath_UpperCaseSiglinks	d:\Storage#2	Path for the assembled messages from lower layer reassembler modules. Note: In Storage#2 first letter of link ID is made uppercase by Message Store module receiving messages from reassembler modules.
	sSgaDirAndFilePrefix	SgaMon	Prefix of storage files
	sLogFilesPath	d:/LogFiles	Path to the log files.
	sLocalIPAddress	116.117.118.119	Optional local IP address binding.
	sLocalTCP	7033	Local TCP definition; default is 7033
	sCaption	CapServ1	Alternative caption text for easy distinguishing amongst multiple instances of this module.

v1.12

v1.11

(n) INI/[Advanced]/LocalTCPPort; default is 7033
(c) Flexible remote TCP port received in the SL.DAT (instead of the built in 7003 and 8003)

v1.10

v0.95

v0.94

v0.93

v0.97

v0.96

v0.94

v0.93
