AITIA International, Inc.	SgaSuperMon - Super Monitor module	SgaSuperMon

Super Monitor module
`("SgaSuperMon")`

Table of Contents

Features
User interface
Configuration
SNMP trap list
Version history

Features

Connects to the Monitor Poller module as a monitor
Receives Call Trace requests from Monitor Poller and forwards them to File Trace Server module
Collects and logs low level statistics every 15 minutes (status line counters)

User interface

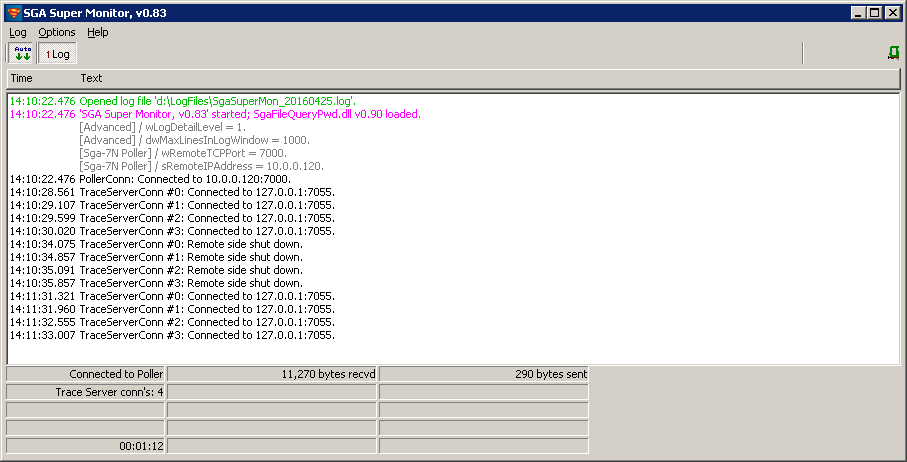

The main menu

Menu	Menuitem	Shortcut(s)/Button	Meaning
[Log]
	Find line containing...	(Ctrl+F)	Finds text in log window.
	Find next matching line	(F3)	Finds next occurrence of text in log window.
	Details		Detail level of logging (Off, Normal, Detailed, or Debug).
[Options]
	Auto scroll	( )	Scrolls automatically the log window.
	Save window positions on exit		Saves actual window positions to ini file on exit.
	Saves settings		Saves actual settings into the configuration file.
[Help]
	About...	(Ctrl+F1)	About the software (version number etc.).

Status line counters

Connected to Poller: Status of Poller connection
Number of bytes received from the Poller
Number of bytes sent to the Poller
Trace Server conn's number of Call Trace connections
Uptime: Uptime of the SgaSuperMon module.

Configuration (`SgaSuperMon.ini`) file settings

Section	Entry	Example	Meaning
[Position]
	posMain	8 115 954 864 1 -1 -1	Window positions at startup
[Options]
	bSaveWinPosOnExit	True	Saves actual window position into the configuration file on exit
	bAutoScroll	True	Enable/Disable scrolling the window automatically
[Sga-7N Poller]
	sRemoteIPAddress	10.20.30.45	IP address of Monitor Poller
	wRemoteTCPPort	7000	TCP port of Monitor Poller module
	sLocalIPAddress	10.20.30.66	Optional local IP address binding
[Advanced]
	sCaption	SuperMon 1	Optional caption text
	wLogDetailLevel	2	Detail level of logging (0-Off, 1-Normal, 2-Detailed, or 3-Debug)
	dwMaxLinesInLogWindow	1000	Maximum number of lines in log window
	sDataFile7001PathN	D:\DataFiles-7001	Path to the statistical files, N can be 0...5 (optional entry)
	sLogFilesPath	D:\LogFiles	Path to the log files
	sTrapFilesPath	D:\TrapFiles	Path to the trap files
	bAlternateTrapUID	false	Allows using fixed UIDs in SNMP traps (See SNMP trap list below for details)

SNMP trap list

UID	Type	Text	Remarks	To Do
If `bAlternateTrapUID` is set to TRUE
5000	CEA	`'SGA Message Store v1.00' module is started.`	Send a welcome message; indication of module start-up
5000	CRI	`'SGA Message Store v1.00' has been shut down by operator.`	Send a farewell message; indication of module shut down	Start the 'SGA Message Store v1.00' module
0	INF	`Connection to Poller module is up.`	Module connected to poller
5001	ERR	`Connection to Poller module is down.`	Connection to the Poller has broken down.	Check the network interface, or the remote side of the connection.
5001	CEA	`Connection to Poller module is down.`	Connection to the Poller module is up
If `bAlternateTrapUID` is set to FALSE
0	INF	`'SGA Message Store v1.00' module is started.`	Send a welcome message; indication of module start-up
0	WAR	`'SGA Message Store v1.00' has been shut down by operator.`	Send a farewell message; indication of module shut down	Start the 'SGA Message Store v1.00' module
0	INF	`Connection to Poller module is up.`	Module connected to poller
++N	ERR	`Connection to Poller module is down.`	Connection to the Poller has broken down.	Check the network interface, or the remote side of the connection.
N	CEA	`Connection to Poller module is down.`	Connection to the Poller module is up

Version history

v1.04

(c) Task #5: A second request with the same ClientID closes and re-opens the TCP connection to the Trace Server.
(c) Task #5: Re-requests, STOP and INFO messages are not forwarded to the Trace Server without a prior main request.

v1.03

(c) Task #5: Number of request bytes logged raised to 1500.

v1.02

(c) Task #5: Requests are logged before sending to the Trace Server at detailed level.
(c) Task #5: Octets received from or sent to the Trace Server are written to the log file only.

v1.01

(n) INI file: [Advanced]/sDataFile7001Path2..sDataFile7001Path5 added.
(c) INI file: [Advanced]/sDataFile7001Path1 is optional.

v1.00

(n) Link statistics counter values received via MuFiCom are sent to the Poller.
(n) INI file: [Advanced]/sDataFile7001Path1 added.
(n) SNMP traps are generated on specific events.
(n) INI file: [Advanced]/sTrapFilesPath added.
(n) INI file: [Advanced]/bAlternateTrapUID added.

v0.91

(n) INI file: [Advanced]/sCaption added
(f) The loopback address was used for the trace server connection; now the INI/[Sga-7N Poller]/sLocalIPAddress entry is used if set.

v0.90

(n) INI file: Optional values [Sga-7N Poller]/sLocalIPAddress added.
(f) Log messages could come endlessly when an improper message was received on a trace server connection

v0.83

(f) Task #5: Data transfer stopped in some cases.
(f) There was high CPU load when the module could not connect to the Poller.
(n) Disconnect command from Poller accepted.
(n) New accelerator key: Shift+Esc minimizes the application.

v0.80

(n) Call trace handling added.

v0.60

(n) Test release

Known bugs

No bug is known at present.
