AITIA	ESR Logic - Emergency call notifier	Sga-ESR-Logic

The ESR Logic module
`("Sga-ESR-Logic")`

Program features
Program requirements
User interface
CDR generation
Data files
Configuration (INI) file
Built-in limitations
Program termination
SNMP trap list
Version history

Features

Implements ESR over HTTPS/SOAP
Receives VoLTE or VoWifi call notification triggers from Sga-ESR_SIP module
Provides an optional Sga-ESR_SIP for testing purposes
Receives 2G/3G call notification triggers from Sga-ESR_SS7 module
Optionally performs VLR query through the Sga-PSLquery module
Looks up coordinates in cell info databases if necessary
Sends derived coordinates to ESR nodes through HTTP/SOAP or HTTPS/SOAP
Automatically reloads cell info data files
Creates CDRs on each event
Logs HTTP requests and responses exhaustively into a separate log file
Provides simple statistical data and logging on the operation
Creates SNMP traps

Minimum operational requirements

1 GB RAM
MS Windows 10 or newer operating system

User interface

The main menu

Menu	Menuitem	Shortcut(s)	Meaning
File
	Reload macro cell info file		Reload macro cell info file specified in `INI/[Advanced]/sMacroCellInfoFile`
	Reload femto cell info file		Reload femto cell info file specified in `INI/[Advanced]/sFemtoCellInfoFile`
	Reload eutran cell info file		Reload eutran cell info file specified in `INI/[Advanced]/sEutranCellInfoFile`
	Reload IMSI2SK table file		Reload IMSI-to-SK table file specified in `INI/[Advanced]/sIMSI2SKTableFile`
Log
	Find line containing...	Ctrl-F	Finds text in log window
	Find next matching line	F3	Finds next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed, or Debug)
Options
	Enable PSL query		Enables VLR look up for coordinates
	Auto scroll		Allows automatic scrolling of the log screen
	Flush counters		Dump status line counter into log
	Flush & reset counters		Dump status line counter into log and clear them
	Show log	Ctrl-Tab, Ctrl-Shift-Tab	Shows log screen
	Show location request queue	Ctrl-Tab, Ctrl-Shift-Tab	Shows processing status of current call notifications
	Save settings		Saves actual settings into the configuration (INI) file

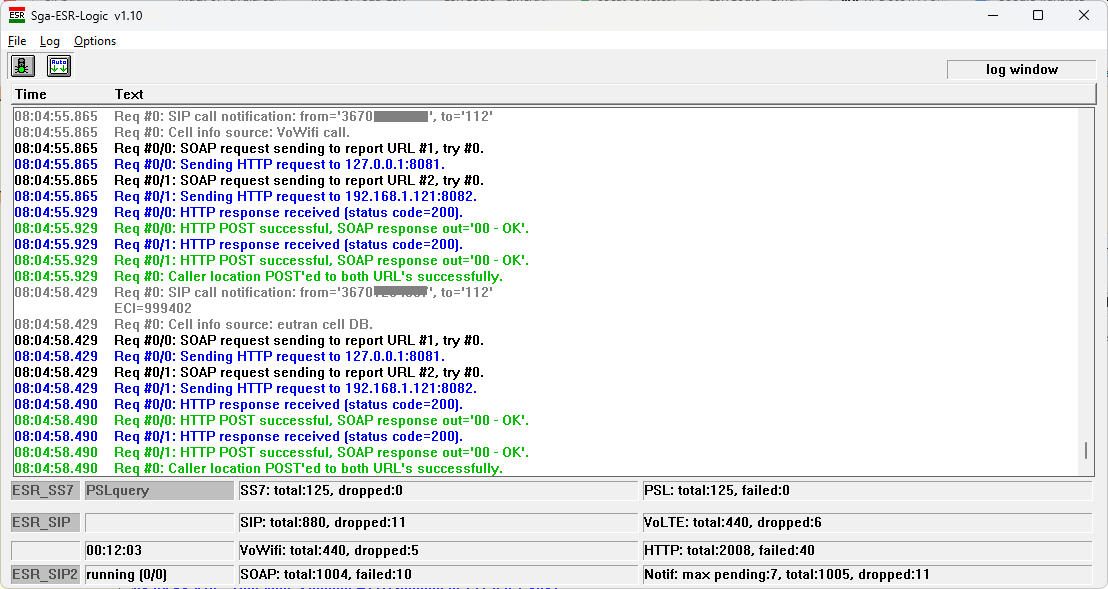

The status windows

ESR_SS7: Indicates the status of the connection to the CAMEL trigger receiver module
- gray text color indicates that the connection is up
- red color indicates a connection error
PSLquery:: Indicates the status of the connection to the PSLquery module
- gray text color indicates that the connection is up
- red color indicates a connection error
SS7:
- total: Number of received CAMEL call triggers
- dropped: Number of dropped CAMEL call triggers
PSL:
- total: Number of sent ProvideSubscriberLocation requests
- failed: Number of timed out PSL requests

ESR_SIP: Indicates the status of the connection to the SIP call trigger receiver module
- gray text color indicates that the connection is up
- red color indicates a connection error
ESR_SIP2: Indicates the status of the connection to the testing SIP call trigger receiver module
- Optional feature! Indication is active only when feature is enabled.
- gray text color indicates that the connection is up
- red color indicates a connection error
SIP:
- total: Number of received SIP triggers
- dropped: Number of dropped SIP triggers
  - PANI format is invalid, i.e., neither E-UTRAN cell nor VoWifi network identifier could be recognized
  - TAC/ECI is not found in eutran cell list
  - Cell identifier is wrong
  - VoWifi PANI is wrong
  - Failed to send to ESR service
VoLTE:
- total: Number of received SIP triggers containing E-UTRAN cell identifier
- dropped: Number of dropped VoLTE triggers
  - TAC/ECI is not found in eutran cell list
  - Failed to send to ESR service

Uptime: Time elapsed since module has been started up
VoWifi:
- total: Number of received SIP triggers containing VoWifi network identifier (IP address and port number)
- dropped: Number of dropped VoWifi triggers
  - Sending XML to ESR service is disabled, i.e., INI/[ESR]/sVoWifiPushText is missing or empty
  - Failed to send to ESR service
HTTP:
- total: Number of outgoing HTTP requests
- failed: Number of failed HTTP requests (timed out, negative HTTP response)

running: Module state; possible values:
- "running"
- "shutting down"
- "stopped"
0/0: Number of pending call notifications / number of requests currently processed
SOAP:
- total: Number of SOAP procedures
- failed: Number of failed SOAP procedures (negative SOAP response)
Notif:
- max pending: Maximum number of pending call notifications
- total: Number of incoming CAMEL and SIP call notifications
- dropped: Number of dropped CAMEL and SIP call notifications

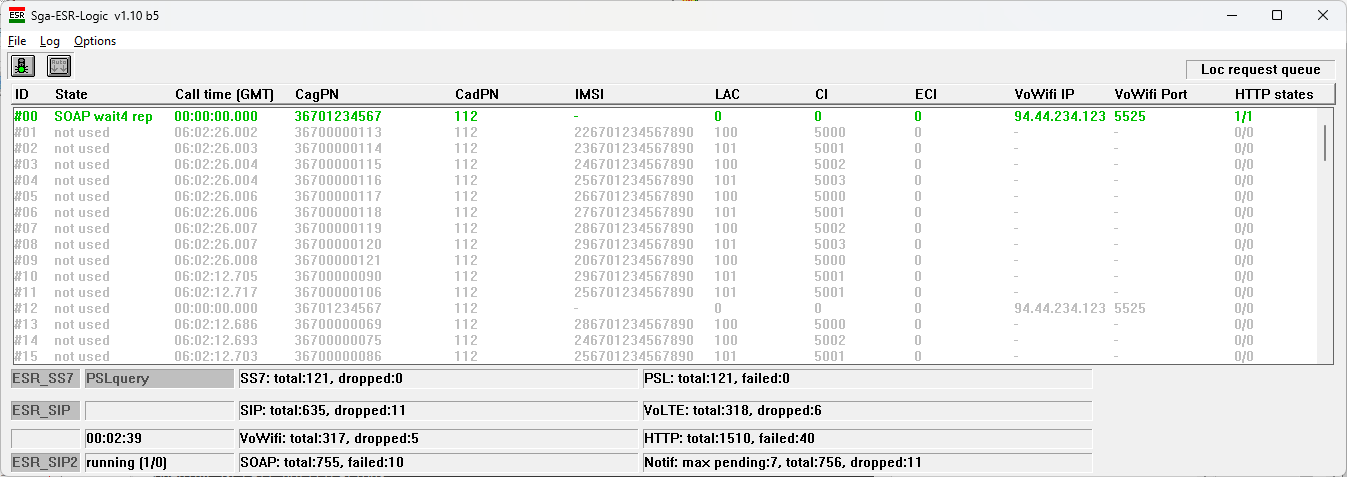

Details of request queue window

ID: Identifier of the request
State: Current state of the request
- not used: There is no ongoing request
- PSL wait4 rep: A PSL request is in progress
- SOAP wait4 rep: A SOAP request is in progress
- SOAP wait4 retry: The request is waiting for the next HTTP/SOAP retry turn
Call time: Time of the call (received from the CAMEL handler module)
CagPN: The caller's MSISDN
CadPN: The called emergency number
IMSI: IMSI of the subscriber (if there is)
LAC: Location Area Code from where the subscriber called (2G/3G)
CI: Cell ID from where the subscriber called (2G/3G)
ECI: E-UTRAN Cell ID from where the subscriber is calling (4G/VoLTE)
VoWifi IP: IP address of the user equipment from where the subscriber is calling (4G/VoWifi)
VoWifi Port: Port number of the user equipment from where the subscriber is calling (4G/VoWifi)
HTTP states: Two values for the two destination URLs. The meanings of the values:
- 0: Not used
- 1: Connecting
- 2: Sending
- 3: Receiving
- 4: Shutdown
- 5: SSL sending
- 6: SSL receiving
- 7: SSL shutdown
- 8: Ready
- 9: Error

CDR generation

The module creates a CDR entry on each call notification. One CDR file is opened for each calendar day. The name of the CDR is "Sga-ESR-Logic_CDR_YYYYMMDD.csv" reflecting the day when it is created.

CDR DateTime (GMT): Closing date and time of the CDR given in GMT
Call DateTime (GMT): Timestamp of the current call given in GMT
SOAP requests sent to URL1: Number of HTTP/SOAP requests
SOAP last outcome on URL1: Result of the HTTP/SOAP request ("OK" or "ERR")
SOAP last text on URL1: The SOAP answer
SOAP requests sent to URL2: Number of HTTP/SOAP requests
SOAP last outcome on URL2: Result of the HTTP/SOAP request ("OK" or "ERR")
SOAP last text on URL2: The SOAP answer
CallingPA: Value of Global title address in SCCP/Calling party address parameter
CalledPA: Value of Global title address in SCCP/Called party address parameter
IMSI: IMSI of the caller (in case of SIM-less calls it is XXX)
CallingPN: MSISDN of the subscriber
CallingPN is_generated: 0 means original, 1 means generated MSISDN
CalledPN: Called number value
RedirectingPN: Redirecting number value (InitialDP/RedirectingPartyID)
LocationN: Location number value (InitialDP/LocationNumber)
LAC: Location Area Code from the LocationNumber
CI: Cell ID from the LocationNumber
BearerCapability: Information transfer capability value of InitialDP/bearerCapability field
SK_S: SK value of the subscriber's operator
PSLquery duration [ms]: Amount of time the PSL query took
PSLquery result: Result of PSL request
ECI: ECI derived from the PANI in case of VoLTE call
IP: UE IP address derived from the PANI in case of VoWifi calls
Port: UE Port derived from the PANI in case of VoWifi calls
Cell info source: Source of the coordinates ("femto cell DB", "macro cell DB", "PSL locEstim" or "eutran cell DB")
Overall result: Overall result of the request. Possible values:
- "Caller location POST'ed to report URL(s) successfully."
- "Call notif dropped: bad location number!"
- "Call notif dropped: Unknown LAC/CI!"
- "Call notif dropped: Could not send SOAP message to any URL's!"
- "Call notif dropped: Unknown ECI!"
- "Call notif dropped: ESR push disabled!"

Data files

The ESR-Logic module requires 4 CSV files for the correct operation: a macro cell info file, a femto cell info file, an eutran cell info file and an IMSI-to-SK conversion table file. These files are loaded on module start, and later automatically every day at the preset time, or manually by user request in the menu.

When a data file is loaded, a log file is created. The log file has the name '<data_file_name>.log'.

When a data file set in the INI / [Advanced] / sXXXFile could be loaded successfully then the file is backed-up (copied) to a file named as '<data_file_name>.bak'.

If the data file could not be loaded then the SNMP trap error 'Could not load the most recent XXX file' is generated and the back-up file '<data_file_name>.bak' is loaded. If the back-up files could not be loaded either then the SNMP trap error 'Could not load the backup XXX file' is generated.

The SNMP trap error 'The [macro|femto|eutran] cell info file is out of date' is generated when any of the last loaded cell info files has a date older than specified in the INI file ([CellInfo]/wMaxAgedays).

The format of the files is CSV, where the separator character is actually a semicolon.

Macro cell info file

Each line consists of the following fields:

LAC;CI;coord_X;coord_Y;startAngle;stopAngle;inRadius;outRadius

Femto cell info file

Each line consists of the following fields:

LAC;CI;Address_line1;Address_line2;Address_line3;Address_line4;postcode

E-UTRAN cell info file

Each line consists of the following fields:

TAC;ECI;coord_X;coord_Y;startAngle;stopAngle;inRadius;outRadius

IMSI-to-SK table file

Each line consists of the following fields:

IMSI_prefix;SK

The table is searched linearly from top to bottom, i.e. the first matching IMSI_prefix is considered as the search result.

Configuration (INI) file settings

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[Options]/Auto scroll` menu item!)
	bEnablePSLquery	True	(Refer to the `[Options]/Enable PSL query` menuitem!)
[Advanced]
	wLogDetailLevel	3	(Equals to the listed order; refer to the corresponding menuitem!)
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sLogFilesPath	C:\Sga-ESR-Logic\LogFiles	Path for the log files
	sHTTPLogFilesPath	C:\Sga-ESR-Logic\LogFiles	Path for the HTTP log files
	sTrapFilesPath	C:\Sga-ESR-Logic\TrapFiles	Path for the SNMP Trap files to be sent
	sCDRFilesPath	C:\Sga-ESR-Logic\CDRFiles	Path for the Call Data Record files. This entry is optional: CDR is not generated when the entry is not present.
	sCDRColumnDelimiter	;	Delimiter character between values in the CDR
	sMacroCellInfoFile	C:\Sga-ESR-Logic\DataFiles\Macro_cell_info.csv	Path for the Macro Cell Info file
	sFemtoCellInfoFile	C:\Sga-ESR-Logic\DataFiles\Femto_cell_info.csv	Path for the Femto Cell Info file
	sEutranCellInfoFile	C:\Sga-ESR-Logic\DataFiles\Eutran_cell_info.csv	Path for the Macro Cell Info file
	sIMSI2SKTableFile	C:\Sga-ESR-Logic\DataFiles\IMSI2SK_table.csv	Path for the IMSI-to-SK table file
	bAlternateTrapUID	False	Allows using fixed UIDs in SNMP traps (See SNMP trap list below for details)
[ESR_SS7]
	sRemoteIPAddress	127.0.0.1	IP address of `Sga-ESR_SS7` module
	wRemoteTCPPort	9068	TCP port where `Sga-ESR_SS7` module listens
[ESR_SIP]
	sRemoteIPAddress	127.0.0.1	IP address of `Sga-ESR_SIP` module
	wRemoteTCPPort	9068	TCP port where `Sga-ESR_SIP` module listens
[ESR_SIP2]	Optional settings
	sRemoteIPAddress	127.0.0.1	IP address of the test `Sga-ESR_SIP` module
	wRemoteTCPPort	9068	TCP port where the test `Sga-ESR_SIP` module listens
[PSLquery]
	sRemoteIPAddress	127.0.0.1	IP address of `Sga-PSLquery` module
	wRemoteTCPPort	9069	TCP port where the query module listens
	wPSLqueryTimeOutMsec	5000	Time out value for PSL requests
[CellInfo]
	sLoadAtTime	22:00	Reload the cell info files every day at the specified time. Format: HH:MM in local time
	wMaxAgeDays	8	Maximum age of cell info files in days. An SNMP trap message is generated if either of the two cell info files are older than specified here.
[ESR]
	dwSK	926	Service provider identifier code value for outgoing SOAP content ('sk_d' value). This SK is also used as the 'sk_s' value in case SK of the subscriber could not be derived from the SK list (e.g. for inbound roamers).
	sReportURL1	http://10.20.30.40:8080/ESR112TelephonyService	Defines the first target HTTP/SOAP service address and port. This entry is optional if `sReportURL2` is set. Server can be defined by its IP address or a domain name. Both 'http://' and 'https://' are applicable (for plain and secure HTTP).
	sReportURL2	http://report.server.hu:8080/ESR112TelephonyService	Defines the second target HTTP/SOAP service address and port. This entry is optional if `sReportURL1` is set. Server can be defined by its IP address or a domain name. Both 'http://' and 'https://' are applicable (for plain and secure HTTP).
	wMaxLocRequests	100	Number of maximum number of concurrent location requests (PSL and HTTP requests altogether)
	wHTTPRequestTimeOutMsec	5000	Time out value for HTTP/SOAP requests
	wHTTPMaxTries	2	Defines how many times the module attempts to send a HTTP request
	wHTTPRetryDelayMsec	5000	Defines the interval between HTTP attempts during retrials
	sVoWifiPushText	VoWifi hívás	SOAP request will contain this text with the IP address and the port number of the user equipment
[SSL]
	sServerCertFile	CertFiles\server-cert.pem	Points to a file with the server certificates. This entry is optional.
	sClientCertFile	CertFiles\client.pem	Points to a file with the client certificate. This entry is optional, expcept when `sClientKeyFile` is set.
	sClientKeyFile	CertFiles\client.pem	Points to a file with the client key. This can be the same file as given in `sClientCertFile`. This entry is optional, expcept when `sClientCertFile` is set.
	sClientPrivateKeyPassword	password	Stores the password for the client key. This entry is optional.

Built-in limitations

Maximum number of concurrent PSL queries and SOAP transactions: 100

Program termination

To quit the module gracefully, press the 'Close' button or Alt+F4 keys once, confirm the quit request and wait until the message box with the text 'Ready to quit' appears.

To quit the module immediately press and confirm 'Close' twice. In this case the pending call notifications will be lost.

SNMP trap list

UID	Type	Text	Remarks	To Do
If `bAlternateTrapUID` is set to TRUE
5000	CEA	`'Sga-ESR-Logic v1.11' module is started.`	Send a welcome message; indication of module start-up
5000	CRI	`'Sga-ESR-Logic v1.11' module has been shut down by operator.`	Send a farewell warning message; indication of module shut-down	Start the `'Sga-ESR-Logic v1.11'` module
0	INF	`Connection to 'Sga-ESR_SS7' module is up.`
5001	CRI/CEA	`Connection to 'Sga-ESR_SS7' module has died.`	CRI on the connection has died, CEA on it has been restored	Check if the IP connection between the `'Sga-ESR-Logic'` and the `'Sga-ESR_SS7'` modules is correct or if the module `'Sga-ESR_SS7'` is alive
0	INF	`Connection to 'Sga-PSLquery' module is up.`
5002	CRI/CEA	`Connection to 'Sga-PSLquery' module has died.`	CRI on the connection has died, CEA on it has been restored	Check if the IP connection between the `'Sga-ESR-Logic'` and the `'Sga-PSLquery'` modules is correct or if the module `'Sga-PSLquery'` is alive
0	INF	`Connection to 'Sga-ESR_SIP' module is up.`
5003	CRI/CEA	`Connection to 'Sga-ESR_SIP' module has died.`	CRI on the connection has died, CEA on it has been restored	Check if the IP connection between the `'Sga-ESR-Logic'` and the `'Sga-ESR_SIP'` modules is correct or if the module `'Sga-ESR_SIP'` is alive
5010	ERR	`Call notif from 'nnn' dropped: bad locNum: 'NNNN'.`	ERR on a badly formatted location number.	Check network settings whether the location number contains exactly 10 digits.
5011	ERR	`Call notif from 'nnn' dropped: Unknown LAC/CI (XXX/YYY).`	ERR on a LAC/CI which is not in either of the cell info DBs.	Check if the databases are up to date.
5012	ERR	`Call notif from 'nnn' dropped: SOAP request failed.`	ERR on an unsuccessful HTTP/SOAP request attempt.	Check whether the server and the SOAP service are available.
5014	ERR	`Call notif from 'nnn' dropped: Unknown ECI (YYY).`	ERR on an ECI which is not in the eutran cell info DB.	Check if the database is up to date.
5020	ERR/CEA	`Could not load the most recent macro cell info file.`	ERR on the most recent file could not be loaded, CEA on the most recent file has been loaded	Check if the macro cell info file is present, if it is valid and if the corresponding INI file settings are correct
5021	CRI/CEA	`Could not load the backup macro cell info file.`	CRI on nor the most recent neither the backup macro cell file could be loaded, CEA on the most recent or the backup file has been loaded	Check if the macro cell info file is present, if it is valid and if the corresponding INI file settings are correct
5022	ERR/CEA	`The macro cell info file is out of date.`	ERR on the file is out of date, CEA on the file has been replaced with a current one	Check if the cell macro info file is younger than `[CellInfo] / wMaxAgeDays`
5030	ERR/CEA	`Could not load the most recent femto cell info file.`	ERR on the most recent file could not be loaded, CEA on the most recent file has been loaded	Check if the femto cell info file is present, if it is valid and if the corresponding INI file settings are correct
5031	CRI/CEA	`Could not load the backup femto cell info file.`	CRI on nor the most recent neither the backup femto cell file could be loaded, CEA on the most recent or the backup file has been loaded	Check if the femto cell info file is present, if it is valid and if the corresponding INI file settings are correct
5032	ERR/CEA	`The femto cell info file is out of date.`	ERR on the file is out of date, CEA on the file has been replaced with a current one	Check if the cell femto info file is younger than `[CellInfo] / wMaxAgeDays`
5040	ERR/CEA	`Could not load the most recent IMSI2SK table file.`	ERR on the most recent file could not be loaded, CEA on the most recent file has been loaded	Check if the IMSI2SK table file is present, if it is valid and if the corresponding INI file settings are correct
5041	CRI/CEA	`Could not load the backup IMSI2SK table file.`	CRI on nor the most recent neither the backup femto cell file could be loaded, CEA on the most recent or the backup file has been loaded	Check if the IMSI2SK table file is present, if it is valid and if the corresponding INI file settings are correct
5050	ERR/CEA	`Could not load the most recent eutran cell info file.`	ERR on the most recent file could not be loaded, CEA on the most recent file has been loaded	Check if the eutran cell info file is present, if it is valid and if the corresponding INI file settings are correct
5051	CRI/CEA	`Could not load the backup eutran cell info file.`	CRI on nor the most recent neither the backup eutran cell file could be loaded, CEA on the most recent or the backup file has been loaded	Check if the eutran cell info file is present, if it is valid and if the corresponding INI file settings are correct
5052	ERR/CEA	`The eutran cell info file is out of date.`	ERR on the file is out of date, CEA on the file has been replaced with a current one	Check if the cell eutran info file is younger than `[CellInfo] / wMaxAgeDays`
If `bAlternateTrapUID` is set to FALSE
0	INF	`'Sga-ESR-Logic v1.11' module is started.`	Send a welcome message; indication of module start-up
0	WAR	`'Sga-ESR-Logic v1.11' module has been shut down by operator.`	Send a farewell warning message; indication of module shut-down	Start the `'Sga-ESR-Logic v1.11'` module
0	INF	`Connection to 'Sga-ESR_SS7' module is up.`
++N	CRI	`Connection to 'Sga-ESR_SS7' module has died.`	CRI on the connection has died, CEA on it has been restored	Check if the IP connection between the `'Sga-ESR-Logic'` and the `'Sga-ESR_SS7'` modules is correct or if the module `'Sga-ESR_SS7'` is alive
N	CEA	`Connection to 'Sga-ESR_SS7' module has died.`	Connection to 'Sga-ESR_SS7' module is up after a down
0	INF	`Connection to 'Sga-ESR_SIP' module is up.`
++N	CRI	`Connection to 'Sga-ESR_SIP' module has died.`	CRI on the connection has died, CEA on it has been restored	Check if the IP connection between the `'Sga-ESR-Logic'` and the `'Sga-ESR_SIP'` modules is correct or if the module `'Sga-ESR_SIP'` is alive
N	CEA	`Connection to 'Sga-ESR_SIP' module has died.`	Connection to 'Sga-ESR_SIP' module is up after a down
0	INF	`Connection to 'Sga-PSLquery' module is up.`
++N	CRI	`Connection to 'Sga-PSLquery' module has died.`	CRI on the connection has died, CEA on it has been restored	Check if the IP connection between the `'Sga-ESR-Logic'` and the `'Sga-PSLquery'` modules is correct or if the module `'Sga-PSLquery'` is alive
N	CEA	`Connection to 'Sga-PSLquery' module has died.`	Connection to 'Sga-PSLquery' module is up after a down
++N	ERR	`Call notif from 'nnn' dropped: bad locNum: 'NNNN'.`	ERR on a badly formatted location number.	Check network settings whether the location number contains exactly 10 digits.
++N	ERR	`Call notif from 'nnn' dropped: Unknown LAC/CI (XXX/YYY).`	ERR on a LAC/CI which is not in either of the cell info DBs.	Check if the databases are up to date.
++N	ERR	`Call notif from 'nnn' dropped: Unknown ECI (YYY).`	ERR on a ECI which is not in the eutran cell info DB.	Check if the database is up to date.
++N	ERR	`Call notif from 'nnn' dropped: SOAP request failed.`	ERR on an unsuccessful HTTP/SOAP request attempt.	Check whether the server and the SOAP service are available.
++N	ERR/CEA	`Could not load the most recent macro cell info file.`	ERR on the most recent file could not be loaded, CEA on the most recent file has been loaded	Check if the macro cell info file is present, if it is valid and if the corresponding INI file settings are correct
++N	CRI/CEA	`Could not load the backup macro cell info file.`	CRI on nor the most recent neither the backup macro cell file could be loaded, CEA on the most recent or the backup file has been loaded	Check if the macro cell info file is present, if it is valid and if the corresponding INI file settings are correct
++N	ERR/CEA	`The macro cell info file is out of date.`	ERR on the file is out of date, CEA on the file has been replaced with a current one	Check if the cell macro info file is younger than `[CellInfo] / wMaxAgeDays`
++N	ERR/CEA	`Could not load the most recent femto cell info file.`	ERR on the most recent file could not be loaded, CEA on the most recent file has been loaded	Check if the femto cell info file is present, if it is valid and if the corresponding INI file settings are correct
++N	CRI/CEA	`Could not load the backup femto cell info file.`	CRI on nor the most recent neither the backup femto cell file could be loaded, CEA on the most recent or the backup file has been loaded	Check if the femto cell info file is present, if it is valid and if the corresponding INI file settings are correct
++N	ERR/CEA	`The femto cell info file is out of date.`	ERR on the file is out of date, CEA on the file has been replaced with a current one	Check if the cell femto info file is younger than `[CellInfo] / wMaxAgeDays`
++N	ERR/CEA	`Could not load the most recent IMSI2SK table file.`	ERR on the most recent file could not be loaded, CEA on the most recent file has been loaded	Check if the IMSI2SK table file is present, if it is valid and if the corresponding INI file settings are correct
++N	CRI/CEA	`Could not load the backup IMSI2SK table file.`	CRI on nor the most recent neither the backup femto cell file could be loaded, CEA on the most recent or the backup file has been loaded	Check if the IMSI2SK table file is present, if it is valid and if the corresponding INI file settings are correct
++N	ERR/CEA	`Could not load the most recent eutran cell info file.`	ERR on the most recent file could not be loaded, CEA on the most recent file has been loaded	Check if the eutran cell info file is present, if it is valid and if the corresponding INI file settings are correct
++N	CRI/CEA	`Could not load the backup eutran cell info file.`	CRI on nor the most recent neither the backup eutran cell file could be loaded, CEA on the most recent or the backup file has been loaded	Check if the eutran cell info file is present, if it is valid and if the corresponding INI file settings are correct
++N	ERR/CEA	`The eutran cell info file is out of date.`	ERR on the file is out of date, CEA on the file has been replaced with a current one	Check if the cell eutran info file is younger than `[CellInfo] / wMaxAgeDays`

Version history

v1.10

(c) INI/[ESR]/sReportURLx can be a domain, as well as an IP address.

v1.10

(n) Handling of SIP call triggers introduced
(n) New INI section: [ESR_SIP]. Entries are loaded at startup
(n) New INI entries:
- [ESR_SIP]/sRemoteIPAddress
- [ESR_SIP]/wRemoteTCPPort
(n) New INI section: [ESR_SIP2]; for an optional test ESR_SIP connection. Entries are loaded at startup
(n) New INI entries:
- [ESR_SIP2]/sRemoteIPAddress
- [ESR_SIP2]/wRemoteTCPPort
(n) New INI entriy:
- [ESR]/sVoWifiPushText, loaded at startup

v1.05

(f) SOAP request: the 'type' attribute in the tag is now set to "international" or "unknown" depending on MSISDN source (original/generated)
(c) CDR: new column 'CallingPN is_generated' added

v1.04

(f) SOAP request: the 'type' attribute in the tag is now set to "international" or "unknown" depending on IMSI presence

v1.03

First official release

The ESR Logic module("Sga-ESR-Logic")

Table of Contents

Features

Minimum operational requirements

User interface

The main menu

The status windows

Details of request queue window

CDR generation

Data files

Macro cell info file

Femto cell info file

E-UTRAN cell info file

IMSI-to-SK table file

Configuration (INI) file settings

Built-in limitations

Program termination

SNMP trap list

Version history

The ESR Logic module
`("Sga-ESR-Logic")`
