| TSP Lab | 'Egységes Segélyhívó Rendszer' | Sga-ESR |
|---|

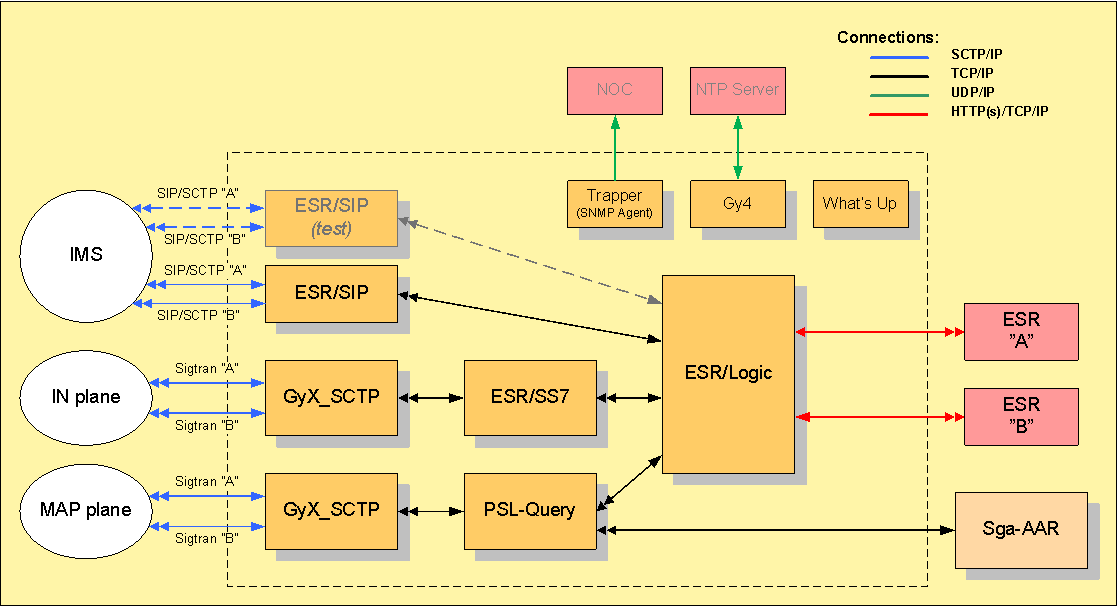

System Overview - Software Components
| Software Components | |||
|---|---|---|---|
| description | module | version | configuration files |
| Main applications | |||
| Sga-ESR-Logic.exe | The Main ESR module | v1.11 | entries of Sga-ESR-Logic.ini |
| Sga-ESR_SIP.exe | The SIP trigger handler module | v0.90 | entries of Sga-ESR_SIP.ini |
| Sga-ESR_SS7.exe | The CAMEL trigger handler module | v1.01 | entries of Sga-ESR_SS7.ini |
| Sga-PSLquery.exe | The Provide Subscriber Location sender module | v0.94 | entries of Sga-PSLquery.ini |
| GyX_SCTP.exe | SigTran interface module | v1.18 | entries of GyX_SCTP.ini |
| Miscellaneous programs for operating (not depicted in the figure) | |||
| Trapper.exe | The Simple Network Management Protocol (SNMP) Trap Agent | v1.13 | entries of Trapper.ini |
| SgaTrapD.dll | Unique Trap-ID Provider for SNMP-based Alerting | v1.01 | <none> |
| Gy4.exe | The Network Time Protocol (NTP) Client | v1.02 | entries of Gy4.ini |
| What's Up.exe | The What's Up utility | v1.10 | entries of WhatsUp.ini |
| Programs for testing purposes | |||
| Sga-ESR_Logic-Emu.exe | The ESR-Logic Emulator module | v0.96 | |
| Sga-PSLquery-Tester.exe | Tester for the PSLquery module | v0.91 | |
| Sga-PSLquery-Tester_LCS.exe | Tester for the PSLquery module | v0.92 | |
