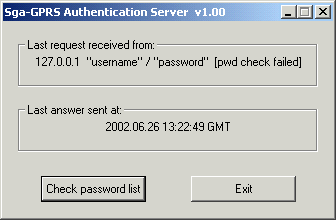

The Authentication Server module
("Sga8NAuS")

• Receives and checks authentication requests from the remote client
• Compares received username and password with which can be found in the password file (sga8nPwd.txt)

• Last request received from:
  • IP address: from which address arrived the authentication request
  • “username”/”password”: username and password provided by the remote client
  • [pwd SATUS]: where SATUS can be ‘OK’ or ‘check failed’ indicates whether the authentication was successful or not
• Last answer sent at:
  • indicates the time when last authentication answer was done
• Check password list:
  • shows how many user there are in the Sga8nPwd.txt file and the name and the password of them

• This file stores the usernames and the passwords for authentication.
• Each line describes an user.
• An example line:
  "My_login_name My_password *".

v1.00
• Initial release

• No bug is known at present.
