TSP Lab	Sga_GrMon2 - The 'Gr-over-IP' Monitor	Sga_GrMon2

The 'Gr-over-IP' Monitor module
`("Sga_GrMon2")`

Features

Menu	Menu item	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Finds text in log window
	Find next matching line	(F3)	Finds next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed, or Debug)
	Flush status-line counters now!		Writes status counters into the log These counters are flushed automatically every fifteen minutes.
	Flush & reset status-line counters now!		Clears status counters after writing them into the log
[KeyServer]
	Allow auto-connect	(Ctrl-A, or )	Permits connection to KeyServer
	Disconnect now!		Breaks off KeyServer connection
[Capture]
	Reload input device list	(Ctrl-I)	Reloads list of input devices from `Sga_GrMon.ini/[Capture]/sInputDevice#{0..9}` entries
	Reload filters		Reloads IP address list from `Sga_GrMon2.ini/[Filters]` section to filter captured MSU's
[Options]
	Auto scroll	(ScrollLock, or )	Allows automatic scrolling of the log screen
	Save settings		Saves actual settings into the `Sga_GrMon2.ini` file

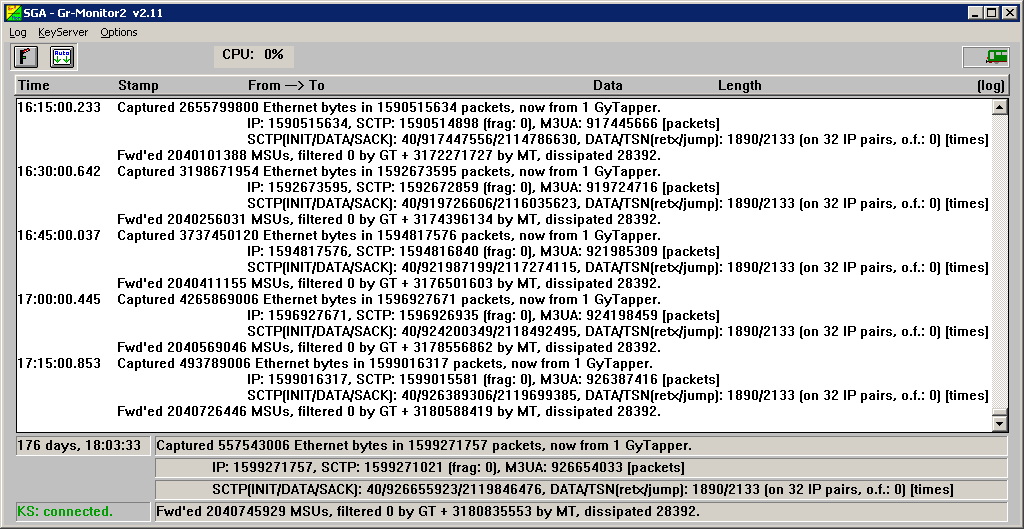

Uptime: time elapsed since module has been started up
#0..4: status of Sga_GrMon2.ini/[Capture]/sInputDevice#{0..4}
#5..9: status of Sga_GrMon2.ini/[Capture]/sInputDevice#{5..9}
KS: status of KeyServer connection (connected or not connected)
Rx'd N bytes in M packets: The module has captured N bytes in M packets on the selected interfaces
- IP: number of IP packets received
- SCTP: number of IP packets containing SCTP messages
- M3UA/Megaco/other (packets): number of M3UA, Megaco and other messages, respectively
- SCTP(INIT/DATA/SACK) (packets): number of INITiation, DATA and SelectiveACK messages, respectively
Fwd'ed N MSU's, filtered M.: number of MSU's sent to the KeyServer and number of those that are filtered out based on the Sga_GrMon2.ini/[Filters]

Section	Entry	Example	Meaning
[Position]
	iLeft	140	Position of the program module on the display screen
	iTop	72	Position of the program module on the display screen
	iWidth	995	Position of the program module on the display screen
	iHeight	694	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refers to the `[Options]/Auto scroll` menu item!)
[Advanced]
	wLogDetailLevel	3	(Equals to the listed order; refers to the `[Log]/Details` menu item!)
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sLogFilesPath	d:\GPRS\Logfiles	Path for the LOG files
[KeyServer]
	bAllowAutoConnect	False	(Refers to the `[KeyServer]/Allow auto-connect` menu item!)
	sIPAddress	127.0.0.2	IP address of KeyServer
	wTCPPort	7002	Port on which KeyServer is listening to Gr (either this or the so-called "NI") Monitor
	dwForwardMSUMaxSize	300	MSU's consisting of (equal to or) fewer octets will only be forwarded to the KeyServer
[Capture]
	sInputDevice#{0..9}	rpcap://\Device\NPF_{E1638A3A-E7C2-4B62-9478-35F9D609855A}	Network interface(s) on which Gr Monitor will capture
	sInputFilter	ip proto 0x84	Defines protocol filter(s) for capturing (0x84 means SCTP protocol)
[Filters]
	sAllowIPAddress#{0..9}	172.28.248.1	Messages having their Source or Destination IP address on this list will only be forwarded to the KeyServer

v0.91
