TSP Lab SgaUTI_Poller - Universal Traffic Information Provider Poller SgaUTI_Poller

Universal Traffic Information Provider Poller
("SgaUTI_Poller")

Goal

Polling BSSAP CDR Generators, forwarding records to the SgaUTI_DBLoader module.

Basic operation

User's Interface

Main screen

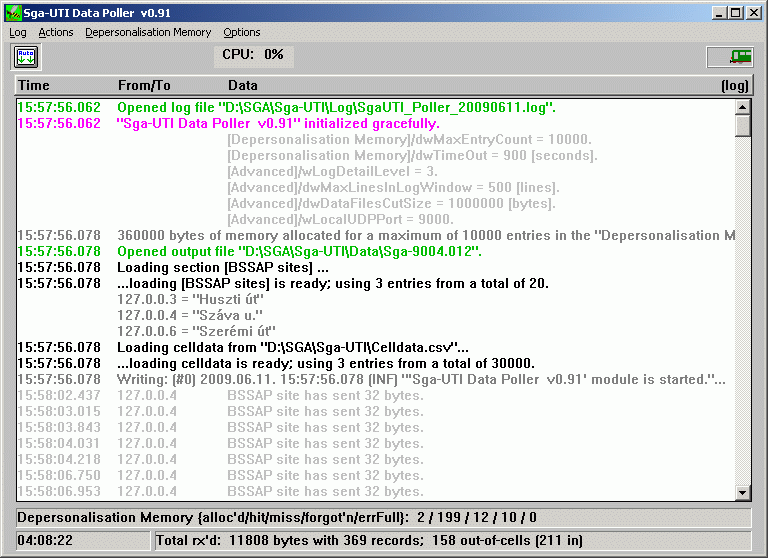

After starting the program main window appears:

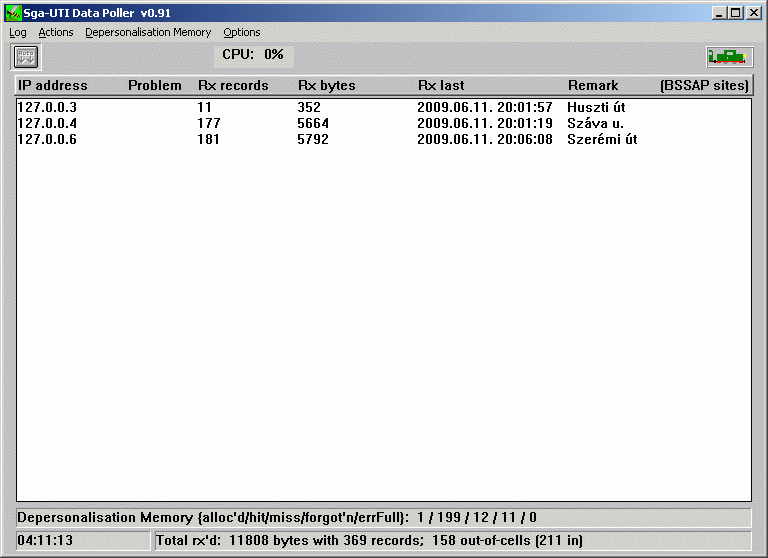

BSSAP sites screen

Clicking on the headline of loglist the screen changes to the following one:

Clicking on the headline of BSSAP sites screen the log window appears again.

The main menu

Menu Menuitem Shortcut(s) Meaning
[Log]
  Find line containing... (Ctrl-F) Finds text in log window
  Find next matching line (F3) Finds next occurrence of text in log window
  Details   Detail level of logging (Off, Normal, Detailed, or Debug)
[Actions]
  Reload INI/[BSSAP sites]   Reload BSSAP sites list from SgaUTI_Poller.ini/[BSSAP sites] sections
  Reload Celldata.csv   Reload cell definitions from Celldata.csv file defined by INI file
[Depersonalisation Memory]
  Dump Contents   Dump content of Depersonalisation Memory into log
  Drop contents   Delete all entries of Depersonalisation Memory
[Options]
  Auto scroll () Allow automatic scrolling of the log screen
  Show log (Click on headline) Show log window
  Show BSSAP site's status (Click on headline) Show BSSAP site's status window
  Save settings   Save settings into INI file

The bottom status-line

Configuration (SgaUTI_Poller.ini) file settings

This file has to be placed in the same directory as the executable file placed!
Program saves the actual settings selecting Options/Save settings menu item.

Section Entry Example Meaning
[Position]
  iLeft 132 The initial horizontal position of the Main screen, in pixel
  iTop 132 The initial vertical position of the Main screen, in pixel
  iWidth 770 The initial width of the Main screen, in pixel
  iHeight 558 The initial height of the Main screen, in pixel
[Options]
  bAutoscroll True If True, log list automatically scrolls to the last line, when a new item inserted
[BSSAP sites]
  127.0.0.4 Huszti site IP address of BSSAP CDR Generator machines with site descriptions
[Depersonalisation Memory]
  dwMaxEntryCount 10000 Maximum number of entries in Depersonalisation Memory
  dwTimeOut 900 Time out in seconds of Depersonalisation Memory entry purging
  sCDRFilesPath D:\SGA\Sga-UTI\CDR Path of CDR generated by SgaUTI_Poller module
[Advanced]
  dwLogLevel 3 (Equals to the listed order; refer to the [Log]/Details menu item!)
  dwMaxLinesInLogWindow 500 Number of lines in the log window on screen
  wLocalUDPPort 9000 Port number for connection to BSSAP CDR generators
  dwDataFilesCutSize 1000000 Maximum number of generated bytes of datafiles
  sCelldataCSVFile D:\SGA\Sga-UTI\Celldata.csv Path and filename of Celldata.csv file
  sDataFilesPath D:\SGA\Sga-UTI\Data Path of directory of intermediate data files (Sga-9004.xxx)
  sLogFilesPath D:\SGA\Sga-UTI\Log Path of directory of log files
  sTrapFilesPath D:\SGA\Sga-UTI\Trap Path of directory of trap files

Sample of INI (SgaUTI_Poller.ini) file

[Position]
iLeft=132
iTop=132
iWidth=768
iHeight=558

[Options]
bAutoScroll=True

[BSSAP sites]
127.0.0.3=Huszti út
127.0.0.4=Száva u.
127.0.0.6=Szerémi út

[Depersonalisation Memory]
dwMaxEntryCount=10000
dwTimeOut=900
sCDRFilesPath=D:\SGA\Sga-UTI\CDR

[Advanced]
wLogDetailLevel=3
dwMaxLinesInLogWindow=500
wLocalUDPPort=9000
dwDataFilesCutSize=1000000
sCelldataCSVFile=D:\SGA\Sga-UTI\Celldata.csv
sDataFilesPath=D:\SGA\Sga-UTI\Data
sLogFilesPath=D:\SGA\Sga-UTI\Log
sTrapFilesPath=D:\SGA\Sga-UTI\Trap

Sample of cell definition (Celldata.csv) file

Cell Id,Cell Location EOV-X,Cell Location EOV-Y,Cell Type,Start Angles,Stop Angles
5172,167793,681851,Micro,210,5
1234,167784,681829,Macro,250,10
5678,264250,459850,Macro,50,170
9012,264250,459850,Macro,150,270

Sample of CDR (SgaUTI_Poller_CDR_yyyymmdd.csv) file generated by SgaUTI_Poller module

DateTime (GMT),DepersonalisationID,EncryptionInfo
2009.06.11. 12:00:13,'00000000,'4787598800077741
2009.06.11. 12:00:13,'00000001,'4787598800077741
2009.06.11. 12:00:13,'00000002,'4787598800077741
2009.06.11. 12:00:13,'00000003,'4787598800077741
2009.06.11. 12:00:13,'00000004,'4787598800077741
2009.06.11. 12:00:13,'00000005,'4787598800077741
