TSP Lab	Sga-UTI Data Sender - The Cell Data Sender module	Sga-UTI Data Sender

The Cell Data Sender module for the UTI/BigData system
`("SgaUTI_Sender")`

Basic Operation

Periodically scans the working directory for Sga-9001.xxx files, created by the SgaBSSAPCDR module
Connects to Sga-UTI Data Poller module via TCP/IP connection
Forwards cell related records to the Sga-UTI system

Menu	Menuitem	Shortcut(s)	Meaning
[Log]
	Find line containing...	(Ctrl-F)	Find text in log window
	Find next matching line	(F3)	Find next occurrence of text in log window
	Details		Detail level of logging (Off, Normal, Detailed or Debug)
[Poller]
	Allow auto-connect	(Ctrl-A or )	Allows/Prohibits automatic connecting to the `Sga-UTI Poller` module
	Disconnect now!	(Ctrl-D)	Disconnects from the `Sga-UTI Poller` module immediately
[Options]
	Auto scroll	()	Allow automatic scrolling of the log screen
	Save settings		Save current settings into the configuration (`Sga-UTI Data Sender.ini`) file

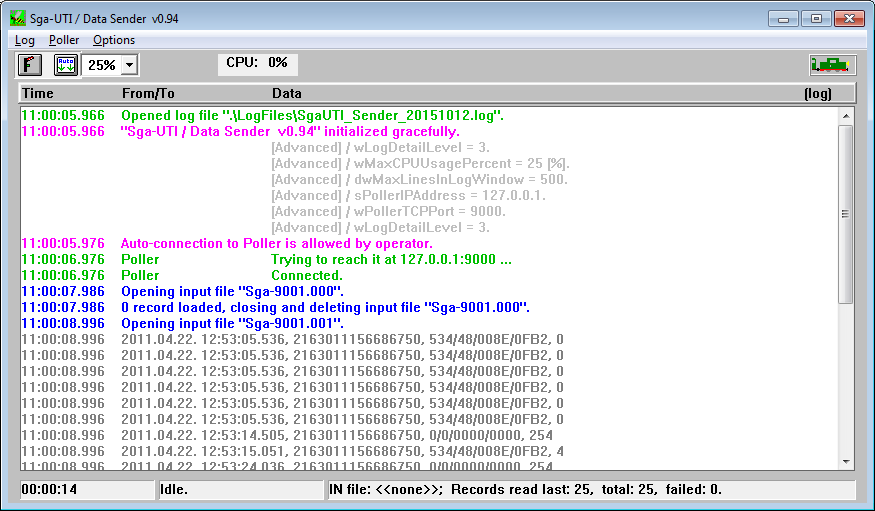

Uptime: Time elapsed since module has been started up.
State of Poller connection: Status of the Sga-UTI Poller module's connection.
- Not connected.: Connection to the Sga-UTI Poller module is not yet established.
- Connected.: Connection has just been established.
- Idle.: Connection is established but there is no any input file to be sent.
- Loading...: Input files is being loaded and records are sent to the Sga-UTI Poller module.
IN file: Name of the input Sga-9001.xxx file currently being loaded.
Records read now: Number of records loaded from the current input Sga-9001.xxx file.
Total: Total number of records sent since the module started.
failed: Number of records failed to send.

Section	Entry	Example	Meaning
[Position]
	iLeft	132	Position of the program module on the display screen
	iTop	132	Position of the program module on the display screen
	iWidth	768	Position of the program module on the display screen
	iHeight	558	Position of the program module on the display screen
[Options]
	bAutoScroll	True	(Refer to the `[Options]/Auto scroll` menuitem!)
[Advanced]
	wMaxCPUUsagePercent	69	Maximum allowed usage of CPU in percentage for this application
	wLogDetailLevel	3	(Equals to the listed order; refer to the `[LOG]/Details menuitem!)`
	dwMaxLinesInLogWindow	1000	Number of lines in the log window on screen
	sPollerIPAddress	192.168.0.109	IP address of the `Sga-UTI Poller` module
	sPollerTCPPort	9000	TCP port of the `Sga-UTI Poller` module
	sDataFile9001Path	d:\DataFiles	Path for the Sga-9001.xxx input data files
	sLogFilesPath	d:\LogFiles	Path for the LOG files

v1.01

v0.94
