TSP Lab Sga-DB - Location Information Database Sga-DB

Location Information Database
("Sga-DB")

Table of Content

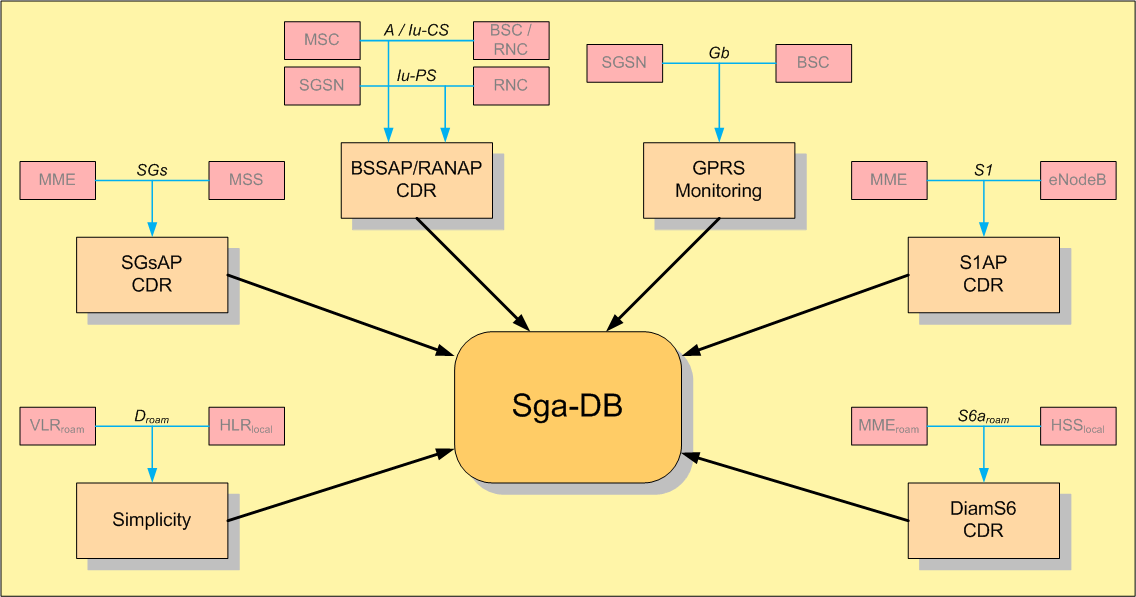

Data provider systems

Location related information is being collected from the following systems.

Data sources

Data type Provider system
2G CS + 3G CS/PS cell info BSSAP/RANAP CDR
2G PS cell info GPRS monitoring system
4G-to-2/3G CS Fallback cell info SGsAP CDR
4G cell info S1AP CDR
2G/3G roaming info Simplicity (international MAP)
4G roaming info DiamS6 CDR (international S6)

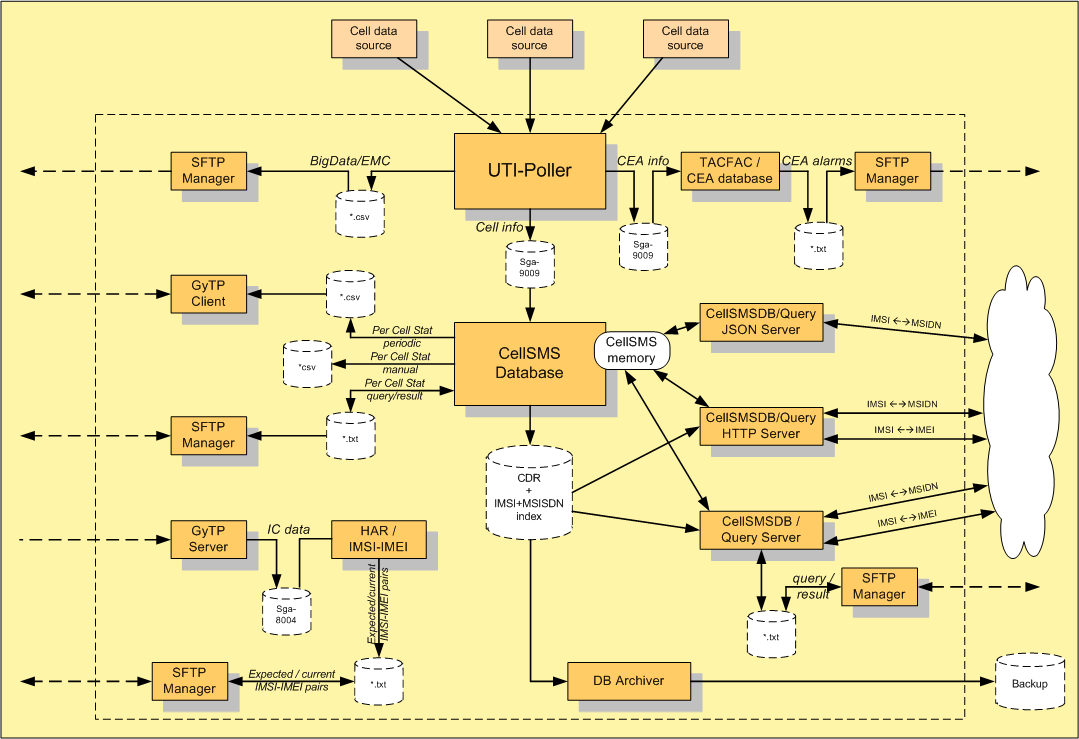

Sga-DB software components

Modules

module description version configuration files
SgaUTI_Poller.exe Data Poller module v1.12 entries of SgaUTI_Poller.ini
SgaUTI_Sender.exe Data Sender module
(running on BSSAP/RANAP and GPRS servers)
v1.05 entries of SgaUTI_Sender.ini
Sga-LUcollector_Send9006.exe Data Sender module
(run on MAP and S6 servers)
v1.03 entries of Sga-LUcollector_Send9006.ini
Sga-CellSMS_DB.exe Location information database collector module v1.26 entries of Sga-CellSMS_DB.ini
Sga-CellSMS_DB-QueryServer.exe Query server for file-based queries v1.10 entries of Sga-CellSMS_DB-QueryServer.ini
Sga-CellSMS_DB-QueryHTTPserver.exe HTTP server module v1.12 entries of Sga-CellSMS_DB-QueryHTTPserver.ini
Sga-CellSMS_DB-QueryJSONserver.exe Query server for JSON-based queries v1.10 entries of Sga-CellSMS_DB-QueryJSONserver.ini
<none> Sga-DB Web Interface <none> <none>
Sga-HAR-IMSIIMEI.exe IMSI-IMEI pair collector v0.90 entries of Sga-HAR-IMSIIMEI.ini
Sga-TACFACCEAdb.exe TAC-FAC - ChosenEncryptionAlgorithm collector v0.94 entries of Sga-TACFACCEAdb.ini
SFTPManager.exe SFTP Manager module v1.12 entries of SFTPManager.ini
GyTP_Server.exe File transfer server module v1.04 entries of GyTP_Server.ini
GyTP_Client.exe File transfer client module v1.05 entries of GyTP_Client.ini
Sga7N_GyDB_Archiver.exe Database archiver module v1.02 entries of Sga7N_GyDB_Archiver.ini
Trapper.exe SNMP trap agent module v1.31 entries of Trapper.ini
SgaTrapD.dll Unique Trap-ID Provider for SNMP-based Alerting v1.01 <none>
Miscellaneous programs
DelThem.exe DelThem module v1.08 entries of DelThem.ini
Gy4.exe The Network Time Protocol (NTP) Client v1.03 entries of Gy4.ini
What's Up.exe The What's Up utility v1.20 entries of WhatsUp.ini
